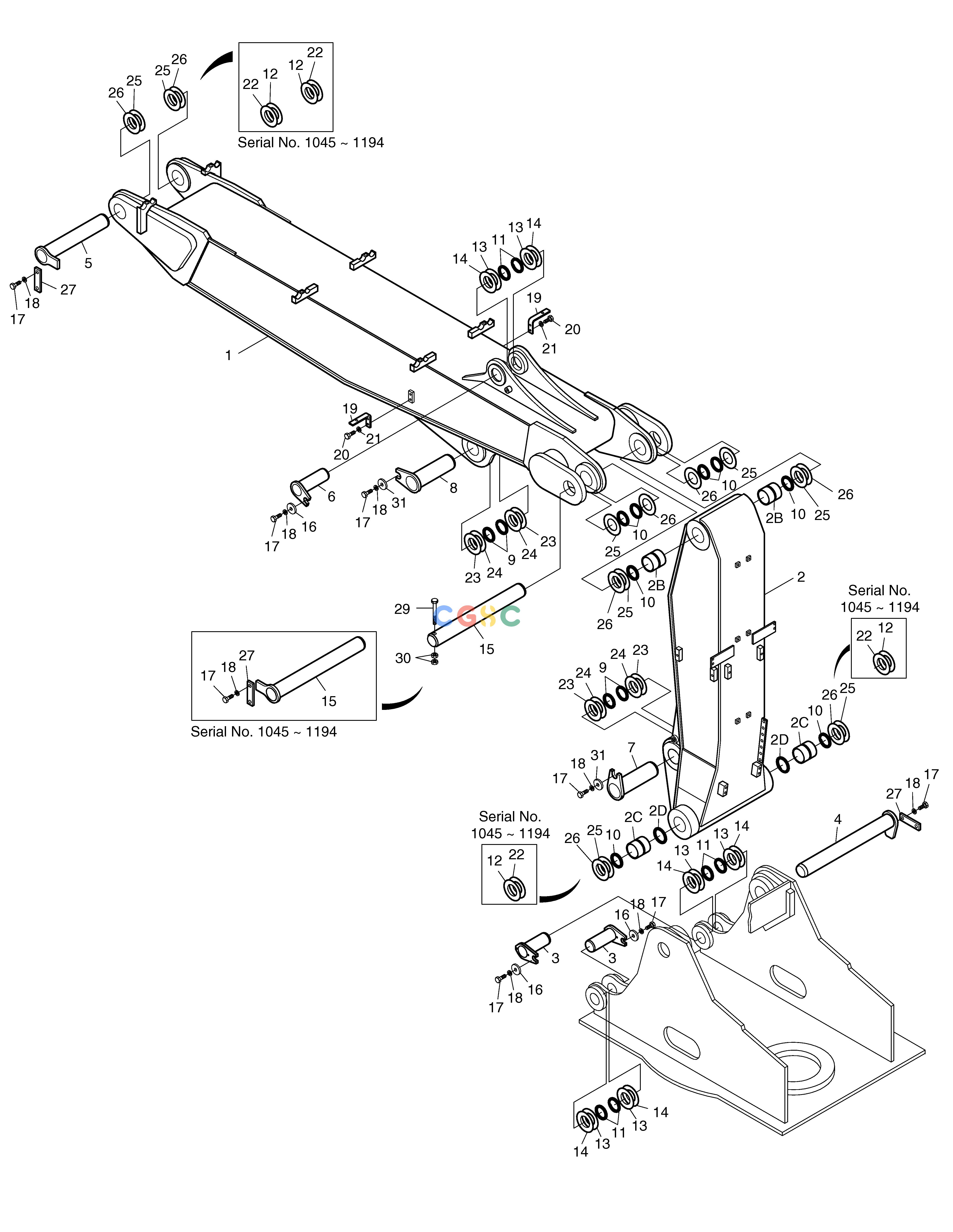

斗山零件查询BOOM-3.8m + 1.87m(ARTI.BOOM) SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
620 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
701-00084B
|
[-] |
BOOM ASS'Y
|
|
| -. |
701-00084C
|
[-] |
BOOM ASS'Y
|
|
| -. |
701-00084E
|
[-] |
BOOM ASS'Y
|
|
| 1. |
2701-1671B
|
[1] |
BOOM;UPPER
|
|
| 1. |
2701-1671C
|
[1] |
BOOM;UPPER
|
|
| 1. |
2701-1671E
|
[1] |
BOOM;UPPER
|
2701-1671G
|
| 1. |
2701-1671G
|
[1] |
BOOM;UPPER
|
2701-1671H
|
| 1. |
2701-1671H
|
[1] |
BOOM;UPPER
|
|
| 10. |
2180-1106BD6
|
[6] |
SEAL;DUST
|
|
| 11. |
2180-1106BD24
|
[6] |
SEAL;DUST
|
|
| 12. |
2114-1059D113
|
[4] |
SHIM
|
|
| 13. |
2114-1059D63
|
[6] |
SHIM
|
|
| 14. |
2114-1059D118
|
[6] |
SHIM
|
|
| 15. |
123-00288
|
[1] |
PIN
|
|
| 15. |
123-00361
|
[1] |
PIN
|
|
| 16. |
2116-1060D6
|
[3] |
STOPPER
|
|
| 17. |
S0521361
|
[11] |
BOLT M16X2.0X35
|
|
| 17. |
S0521361
|
[9] |
BOLT M16X2.0X35
|
S0521366
|
| 17. |
S0521366
|
[9] |
BOLT
|
|
| 18. |
S5102901
|
[11] |
. WASHER;SPRING
|
|
| 18. |
S5102901
|
[9] |
. WASHER;SPRING
|
S5102903
|
| 18. |
S5102903
|
[9] |
WASHER
|
|
| 19. |
2195-2394B
|
[2] |
BRACKET
|
|
| 2. |
2701-1667C
|
[1] |
BOOM ;LOWER MACH.
|
2701-1667E
|
| 2. |
2701-1667E
|
[1] |
BOOM ;LOWER MACH.
|
|
| 2. |
2701-1667G
|
[1] |
BOOM ;LOWER MACH.
|
|
| 20. |
S0515053
|
[4] |
BOLT M12X1.75X25
|
|
| 21. |
S5102703
|
[4] |
WASHER
|
|
| 22. |
2114-1059D114
|
[4] |
SHIM
|
|
| 23. |
2114-1059D72
|
[4] |
SHIM
|
|
| 24. |
2114-1059D73
|
[4] |
SHIM
|
|
| 25. |
114-00001D5
|
[4] |
SHIM
|
|
| 25. |
114-00001D5
|
[8] |
SHIM
|
|
| 26. |
114-00001D6
|
[4] |
SHIM
|
|
| 26. |
114-00001D6
|
[8] |
SHIM
|
|
| 27. |
2116-1514A
|
[3] |
PLATE;STOPPER
|
|
| 27. |
2116-1514A
|
[2] |
PLATE;STOPPER
|
|
| 29. |
S0571861
|
[1] |
BOLT M20X2.5X170
|
S0571866
|
| 29. |
S0571866
|
[1] |
BOLT M20X2.5X170
|
|
| 2B. |
110-00049
|
[2] |
BUSHING
|
|
| 2B. |
2110-1316A
|
[2] |
. BUSHING
|
|
| 2C. |
110-00048
|
[2] |
BUSHING
|
|
| 2C. |
2110-1315A
|
[2] |
. BUSHING
|
|
| 2D. |
2180-1106BD6
|
[2] |
SEAL;DUST
|
|
| 3. |
2123-2182C
|
[2] |
PIN
|
123-00409
|
| 3. |
123-00409
|
[2] |
PIN
|
|
| 30. |
S4013133
|
[2] |
NUT
|
|
| 31. |
2116-1060D5
|
[2] |
STOPPER
|
|
| 4. |
2123-2180E
|
[1] |
PIN
|
2123-2180G
|
| 4. |
2123-2180G
|
[1] |
PIN
|
|
| 5. |
2123-2185E
|
[1] |
PIN
|
|
| 6. |
2123-2187C
|
[1] |
PIN
|
|
| 7. |
123-00030
|
[1] |
PIN
|
|
| 8. |
2123-2031C
|
[1] |
PIN
|
|
| 9. |
2180-1106BD14
|
[4] |
SEAL;DUST
|
|
