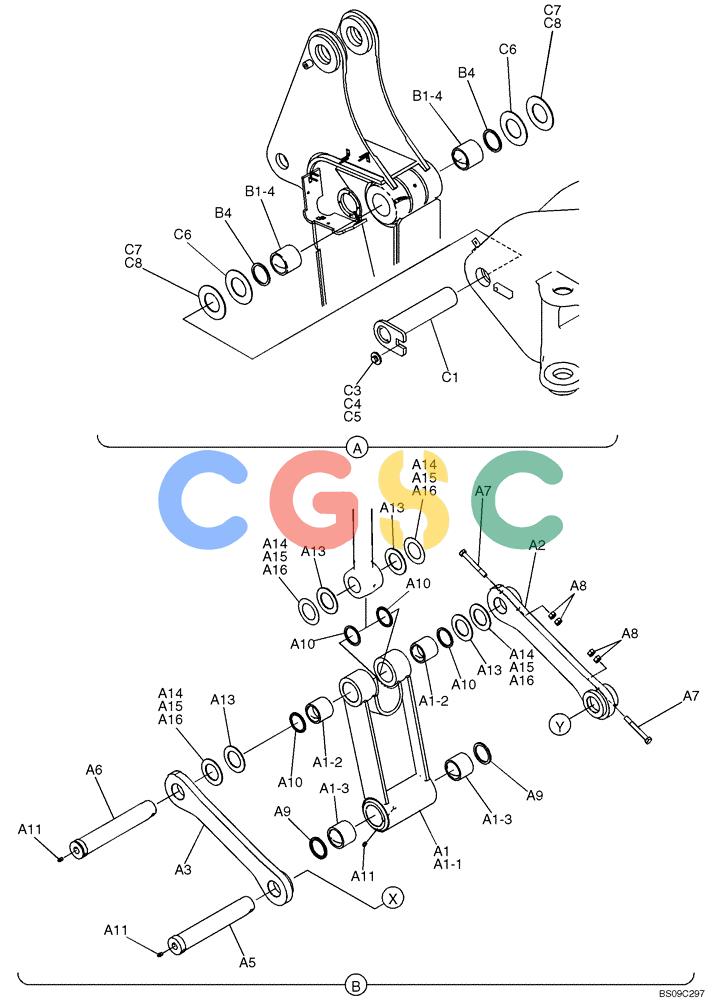

| A1. | YY12B01249F1 | [1] | LINK | KOBAssembly, Bucket |
| A1-1. | NA | [1] | NOT SERVICED | FORLink, Bucket |
| A1-2. | LP12B01031P1 | [2] | BUSHING | KOB |
| A1-3. | LP12B01036P1 | [2] | BUSHING | KOB |
| A2. | YX12B01015P1 | [1] | LINK | KOB Superseded by part number: YX12B01083P1 |
| A3. | YX12B01016P1 | [1] | LINK | KOB |
| A5. | YX12B01041P2 | [1] | PIN | KOB |
| A6. | YX12B01042P1 | [1] | PIN | KOB |
| A7. | HS18C14115G2 | [2] | BOLT,Hex, M14 x 115mm, Cl 10.9 | KOBM14x2.0x150mm |
| A8. | ZN18C14011 | [4] | NUT | KOBM14x2.0mm |
| A9. | 2445R220D2 | [2] | SEAL,65mm ID x 80mm OD x 5mm Thk | KOBDust -- ID 65 x OD 80 x Th 5mm Superseded by part number: 84499663 |
| A10. | 2445R138D3 | [4] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| A11. | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| A13. | YW12B01025P1 | [6] | SHIM,62mm ID x 100mm OD x 3mm Thk | KOBID 62 x OD 100 x Th 3.0mm |
| A14. | B16T0442D56 | [6] | SHIM,62mm ID x 100mm OD x 0.5mm Thk | KOBID 62 x OD 100 x Th 0.5mm |
| A15. | B16T0442D43 | [6] | SHIM,62mm ID x 100mm OD x 0.9mm Thk | KOBID 62 x OD 100 x Th 0.9mm |
| A16. | B16T0442D19 | [6] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| B1-4. | YX12B01021P1 | [2] | BUSHING | KOB |
| B4. | 2445R138D6 | [2] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBDust Seal -- ID 70 x OD 85 x Th 4mm |
| C1. | YX12B01019P1 | [1] | PIN | KOB Superseded by part number: YX12B01080P1 |
| C3. | ZS18C12020 | [2] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| C4. | 2418T21942 | [2] | WASHER | KOBID 13 x OD 45 x Th 4.5mm |
| C5. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| C6. | YN12B01009P1 | [2] | SHIM,3mm Thk | KOB(3.0) |
| C7. | B16T0442D57 | [2] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| C8. | B16T0442D44 | [2] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
