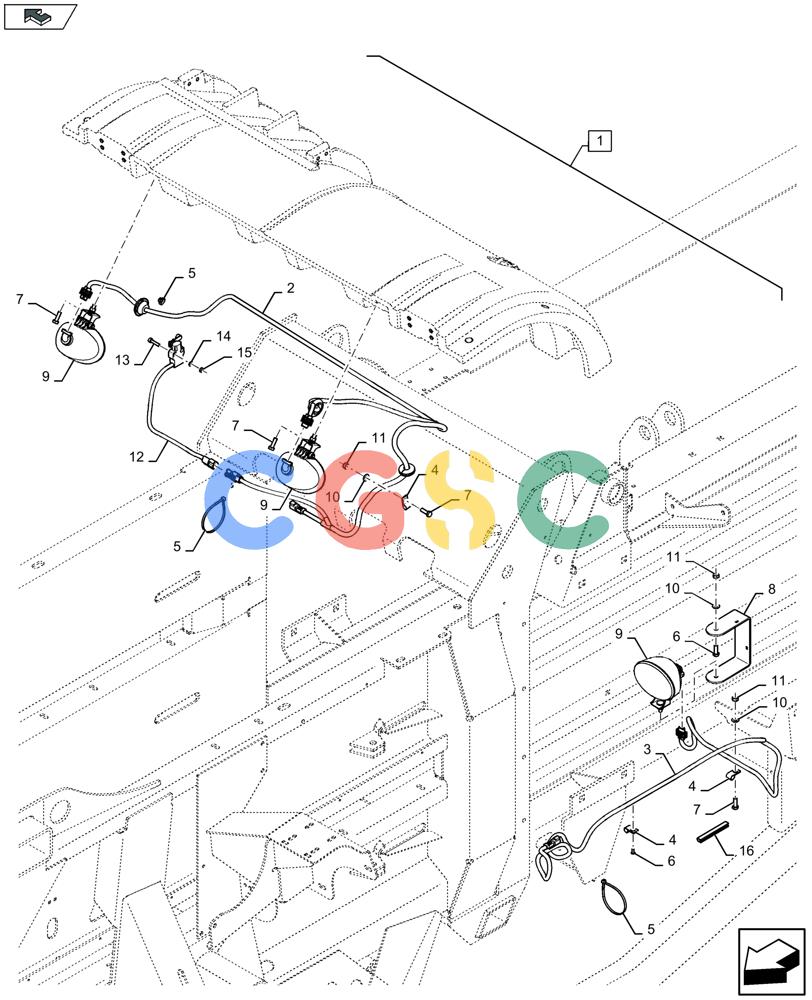

凯斯零件查询(LB324S) - BALER (9/12-) (88.055.031[01]) - DIA KIT: KNOTTER AND NEEDLE INSPECTION LIGHT KIT - D137 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47808637
|
[1] |
DIA KIT, HARVESTER
|
ATT
Incl 2 - 16
|
| 2. |
47592098
|
[1] |
WIRE HARNESS
|
ZED
|
| 3. |
47592099
|
[1] |
WIRE HARNESS
|
ZED
|
| 4. |
858956
|
[7] |
CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 5. |
86566990
|
[11] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 6. |
445394
|
[4] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
| 7. |
43127
|
[6] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 8. |
84521730
|
[1] |
MOUNTING PLATE
|
ZED
|
| 9. |
84423707
|
[3] |
WORK LAMP
|
ZED
|
| 10. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 12. |
84807307
|
[1] |
SWITCH ASSY
|
ZED
|
| 13. |
87016469
|
[2] |
HEX SOC SCREW,M5 x 25mm, Cl 8.8
|
RAC
|
| 14. |
9824326
|
[2] |
WASHER,5.3mm ID x 10mm OD x 1mm Thk
|
NH
|
| 15. |
86508813
|
[2] |
NUT,M5, Cl 8
|
ZED
Superseded by part number: 10788811
|
| 16. |
291186
|
[2] |
PROTECTION STRIP,9.9mm W
|
NH
L = 0.1m Superseded by part number: 47560081, 47560080
|
