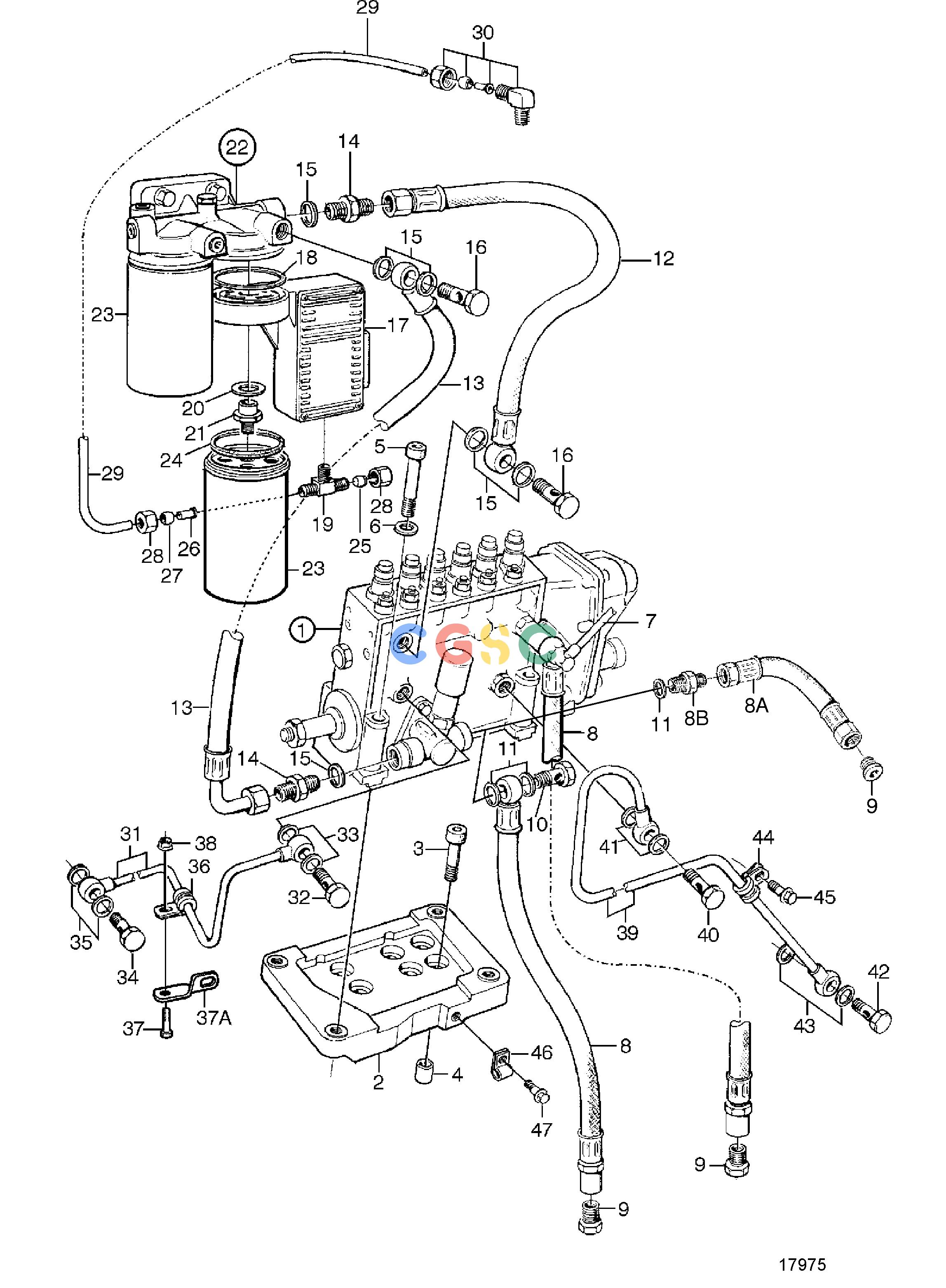

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AFuel SystemFuel Injection Pump and Fuel FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
123 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825439
|
[1] |
Injection pump
|
|
| 1. |
3803734
|
[1] |
Injection pump
|
|
| 1. |
|
|
|
|
| 2. |
477773
|
[1] |
Shelf
|
|
| 3. |
965185
|
[4] |
Flange screw
|
L=40mm
|
| 4. |
417588
|
[2] |
Guide sleeve
|
|
| 5. |
959250
|
[4] |
Hex. socket screw
|
L=90mm
|
| 6. |
941908
|
[4] |
Spring washer
|
|
| 7. |
7740910_060
|
|
Leak-off line, fuel hose connection
|
|
| 8. |
3830312
|
[1] |
Hose
|
|
| 8A. |
3830309
|
[1] |
Hose
|
Alt
|
| 8B. |
977677
|
[1] |
Nipple
|
Alt
|
| 9. |
22753
|
[2] |
Nipple
|
|
| 10. |
25167
|
[1] |
Hollow screw
|
|
| 11. |
969011
|
[2] |
Gasket
|
|
| 12. |
3830306
|
[1] |
Hose
|
|
| 13. |
3830307
|
[1] |
Hose
|
|
| 14. |
941754
|
[2] |
Nipple
|
|
| 15. |
969011
|
[6] |
Gasket
|
|
| 16. |
25167
|
[2] |
Hollow screw
|
|
| 17. |
3826995
|
[1] |
Control unit
|
|
| 18. |
3825387
|
[1] |
Sealing ring
|
|
| 19. |
946082
|
[1] |
T-nipple
|
|
| 20. |
955904
|
[1] |
Washer
|
|
| 21. |
3825333
|
[1] |
Nipple
|
|
| 22. |
8194541
|
[1] |
Fuel filter housing
|
(1676832)
|
| 22. |
|
|
|
|
| 23. |
7740910_041
|
|
Fuel filter
|
|
| 24. |
7740910_041
|
|
Gasket
|
|
| 25. |
943006
|
[1] |
Plug
|
|
| 26. |
944717
|
[1] |
Support sleeve
|
|
| 27. |
954364
|
[1] |
Sleeve
|
|
| 28. |
954356
|
[2] |
Fitting nut
|
|
| 29. |
945460
|
[1] |
Tube
|
|
| 30. |
7740910_120
|
|
Connector
|
|
| 31. |
477986
|
[1] |
Oil pressure pipe
|
|
| 32. |
48634
|
[1] |
Hollow screw
|
|
| 33. |
947281
|
[2] |
Gasket
|
|
| 34. |
969299
|
[1] |
Hollow screw
|
|
| 35. |
11994
|
[2] |
Gasket
|
|
| 36. |
952623
|
[1] |
Clamp
|
|
| 37. |
946544
|
[1] |
Flange screw
|
|
| 37A. |
1136551
|
[1] |
Anchorage
|
|
| 38. |
945407
|
[1] |
Flange nut
|
|
| 39. |
865251
|
[1] |
Oil return pipe
|
|
| 40. |
48634
|
[1] |
Hollow screw
|
|
| 41. |
907132
|
[2] |
Gasket
|
|
| 42. |
25167
|
[1] |
Hollow screw
|
|
| 43. |
969011
|
[2] |
Gasket
|
|
| 44. |
947191
|
[1] |
Clamp
|
|
| 45. |
946471
|
[1] |
Flange screw
|
|
| 46. |
940374
|
[1] |
Clamp
|
|
| 47. |
946440
|
[1] |
Flange screw
|
|
