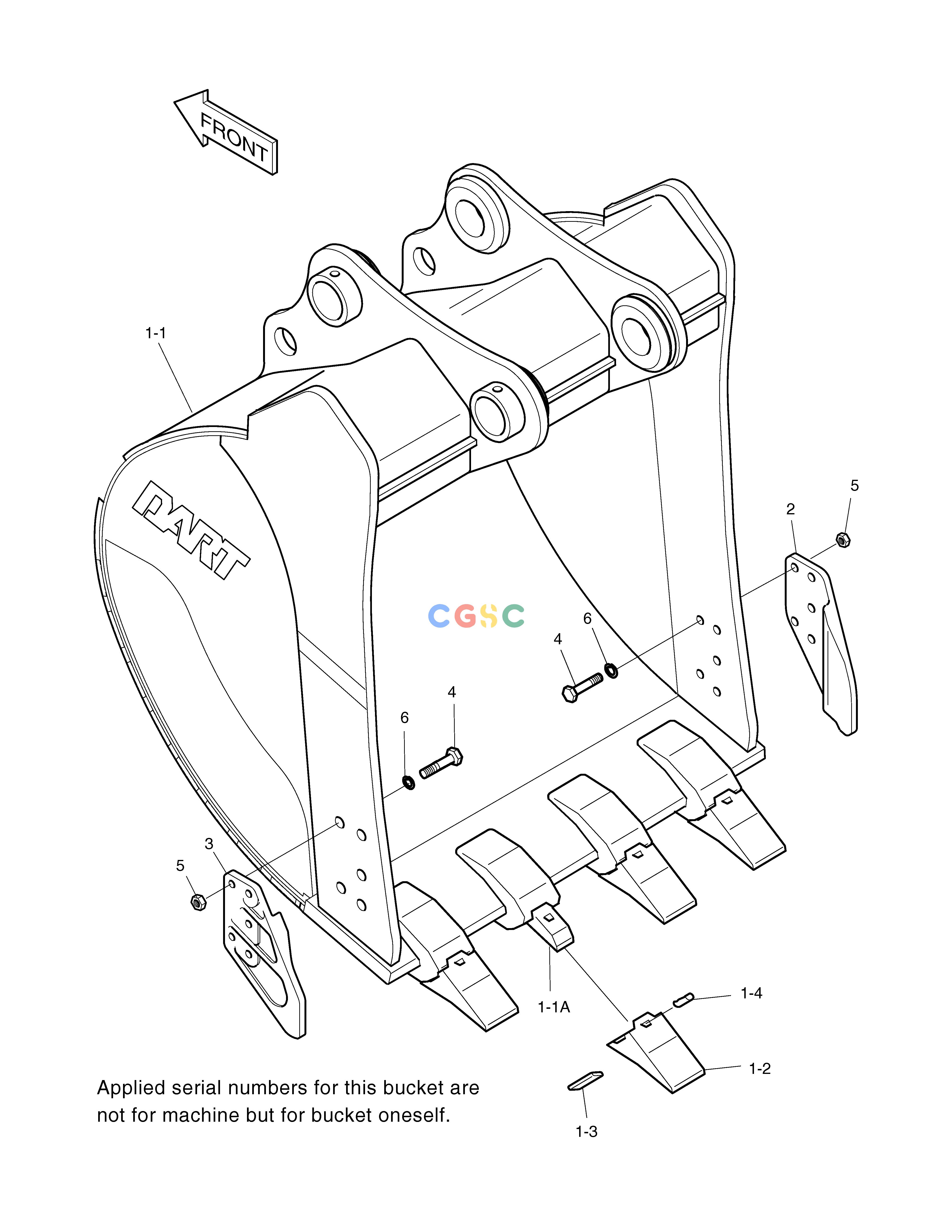

斗山零件查询BUCKET-0.67㎥(36")-VERTICAL PIN SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
624 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2704-1675
|
[1] |
BUCKET ASS'Y-0.67㎥(H.D)
|
|
| 1. |
2704-1676
|
[1] |
BUCKET SUB ASS'Y-0.67㎥
|
|
| 1-1. |
NA00213
|
[1] |
. BUCKET;WELD
|
|
| 1-1A. |
2713-6078
|
[4] |
ADAPTER;TOOTH
|
|
| 1-2. |
2713-9056
|
[4] |
POINT;TOOTH
|
2713-9061
|
| 1-2. |
2713-9061
|
[4] |
POINT;TOOTH
|
|
| 1-3. |
2705-6034
|
[4] |
PIN;LOCKING
|
|
| 1-4. |
2705-6033
|
[4] |
PIN;RUBBER
|
|
| 2. |
2713-1059
|
[1] |
CUTTER;SIDE(R)
|
|
| 2. |
2713-1059A
|
[1] |
. CUTTER;SIDE(R.H)
|
|
| 3. |
2713-1060
|
[1] |
CUTTER;SIDE(L)
|
|
| 3. |
2713-1060A
|
[1] |
. CUTTER;SIDE(L.H)
|
|
| 4. |
S0570261
|
[10] |
BOLT M20X2.5X70
|
|
| 4. |
S0574861
|
[10] |
BOLT M24X3.0X75
|
|
| 5. |
S4013133
|
[10] |
NUT
|
|
| 5. |
S4013333
|
[10] |
. NUT
|
|
| 6. |
2114-9012
|
[10] |
WASHER;HARDEN
|
|
| 6. |
2114-1831
|
[10] |
WASHER;HARDEN
|
|
