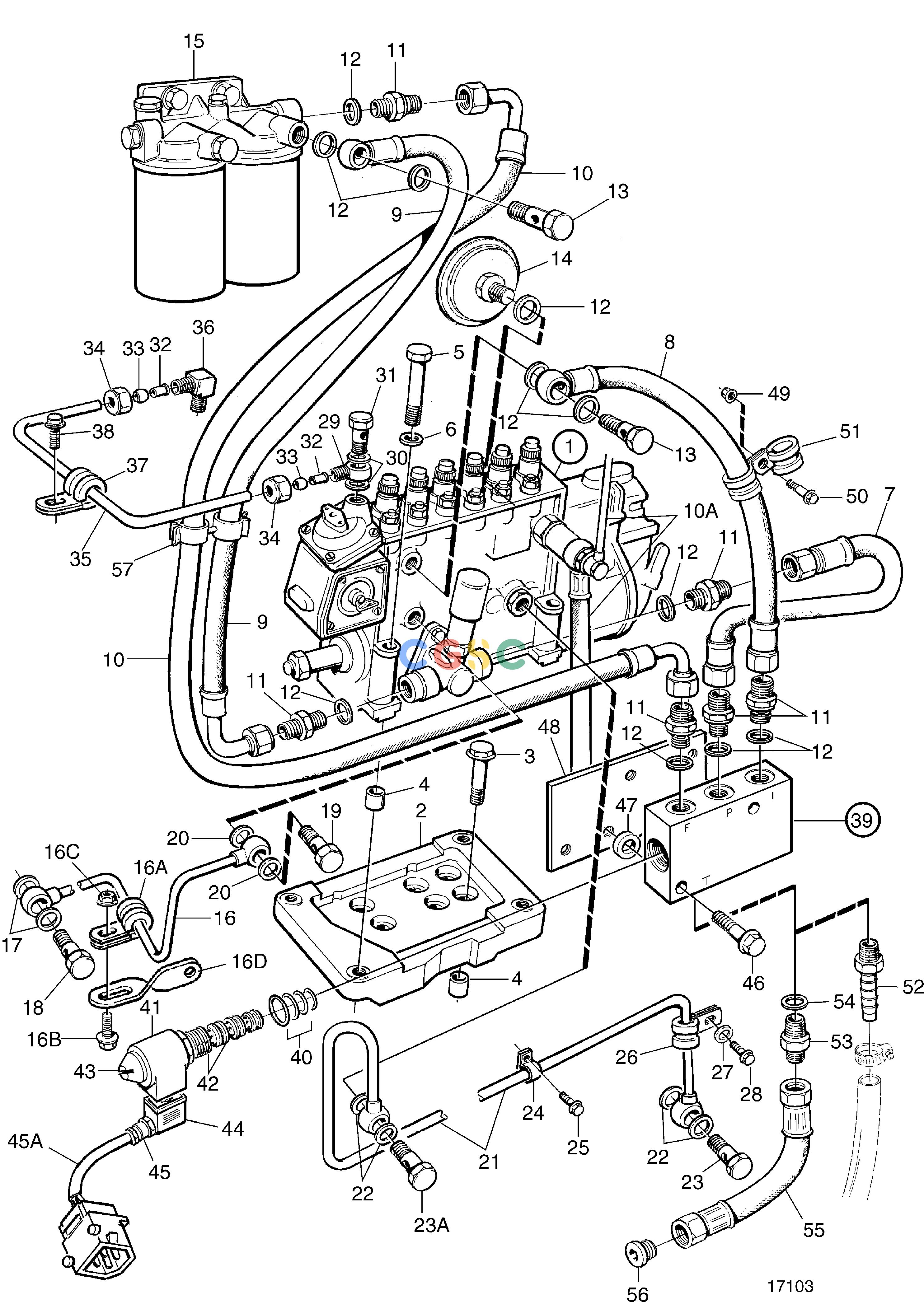

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AFuel SystemInjection Pump, Fuel Filter and Shut-off Valve: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
821 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864068
|
[1] |
Injection pump
|
|
| 1. |
3803771
|
[1] |
Injection pump
|
|
| 1. |
|
|
|
|
| 2. |
477773
|
[1] |
Shelf
|
|
| 3. |
965185
|
[4] |
Flange screw
|
|
| 4. |
417588
|
[2] |
Guide sleeve
|
|
| 5. |
965189
|
[4] |
Flange screw
|
|
| 6. |
941908
|
[4] |
Spring washer
|
|
| 7. |
3830304
|
[1] |
Hose
|
L=175mm
|
| 8. |
3830306
|
[1] |
Hose
|
L=405mm
|
| 9. |
3830307
|
[1] |
Hose
|
L=460mm
|
| 10. |
3830308
|
[1] |
Hose
|
L=660mm
|
| 10A. |
7740910_061
|
|
Leak-off line, fuel hose connection
|
|
| 11. |
941754
|
[6] |
Nipple
|
|
| 12. |
969011
|
[11] |
Gasket
|
|
| 13. |
25167
|
[2] |
Hollow screw
|
|
| 14. |
477173
|
[1] |
Pressure equalizer
|
|
| 15. |
7740910_040
|
|
Fuel filter, with installation comps.
|
|
| 16. |
477986
|
[1] |
Oil pressure pipe
|
|
| 16A. |
952623
|
[1] |
Clamp
|
|
| 16B. |
946544
|
[1] |
Flange screw
|
|
| 16C. |
945407
|
[1] |
Flange nut
|
|
| 16D. |
1136551
|
[1] |
Anchorage
|
|
| 17. |
11994
|
[2] |
Gasket
|
|
| 18. |
969299
|
[1] |
Hollow screw
|
|
| 19. |
48634
|
[1] |
Hollow screw
|
|
| 20. |
947281
|
[2] |
Gasket
|
|
| 21. |
3826927
|
[1] |
Oil return pipe
|
|
| 22. |
969011
|
[4] |
Gasket
|
|
| 23. |
25167
|
[1] |
Hollow screw
|
|
| 23A. |
25167
|
[1] |
Hollow screw
|
|
| 24. |
18387
|
[1] |
Clamp
|
|
| 25. |
944926
|
[1] |
Flange screw
|
|
| 26. |
942542
|
[1] |
Clamp
|
|
| 27. |
190509
|
[1] |
Washer
|
|
| 28. |
946471
|
[1] |
Flange screw
|
|
| 29. |
945417
|
[1] |
Banjo nipple
|
|
| 30. |
11994
|
[2] |
Gasket
|
|
| 31. |
969299
|
[1] |
Hollow screw
|
|
| 32. |
944717
|
[2] |
Support sleeve
|
|
| 33. |
954364
|
[2] |
Sleeve
|
|
| 34. |
954356
|
[2] |
Fitting nut
|
|
| 35. |
945460
|
[1] |
Tube
|
L=750mm
|
| 36. |
954385
|
[1] |
Elbow nipple
|
|
| 37. |
940374
|
[1] |
Clamp
|
|
| 38. |
946440
|
[1] |
Flange screw
|
|
| 39. |
866698
|
[1] |
Valve
|
12V repl by 3828982
|
| 39. |
866699
|
[1] |
Valve
|
24V repl by 3828983
|
| 39. |
3828982
|
[1] |
Fuel valve
|
Incl 4pcs nipple 941754 and 4pcs gasket 969011.
|
| 39. |
3828983
|
[1] |
Fuel valve
|
Incl 4pcs nipple 941754 and 4pcs gasket 969011.
|
| 40. |
3825238
|
[1] |
Gasket
|
For 866698, 866699
|
| 40. |
3828981
|
[1] |
Gasket kit
|
For 3828982, 3828983
|
| 41. |
3825239
|
[1] |
Magnet
|
12V
|
| 41. |
3825240
|
[1] |
Magnet
|
24V
|
| 42. |
3825235
|
[1] |
Valve
|
For 866698, 866699
|
| 42. |
3828979
|
[1] |
Valve
|
For 3828982, 3828983
|
| 43. |
|
|
|
|
| 44. |
866664
|
[1] |
Housing
|
|
| 45. |
844576
|
[1] |
Grommet
|
|
| 45A. |
866927
|
[1] |
Cable kit
|
|
| 46. |
947760
|
[2] |
Flange screw
|
|
| 47. |
191172
|
[2] |
Washer
|
|
| 48. |
7740910_090
|
|
Bracket
|
|
| 49. |
949278
|
[3] |
Flange lock nut
|
|
| 50. |
946544
|
[3] |
Flange screw
|
|
| 51. |
952631
|
[3] |
Clamp
|
|
| 52. |
3825000
|
[2] |
Hose nipple
|
|
| 53. |
977677
|
[1] |
Nipple
|
Included in kit 866997.
|
| 54. |
969011
|
[1] |
Gasket
|
Included in kit 866997.
|
| 55. |
3830309
|
[1] |
Hose
|
Included in kit 866997.
|
| 56. |
22753
|
[2] |
Nipple
|
Included in kit 866997.
|
| 57. |
9205207
|
[2] |
Retainer
|
|
