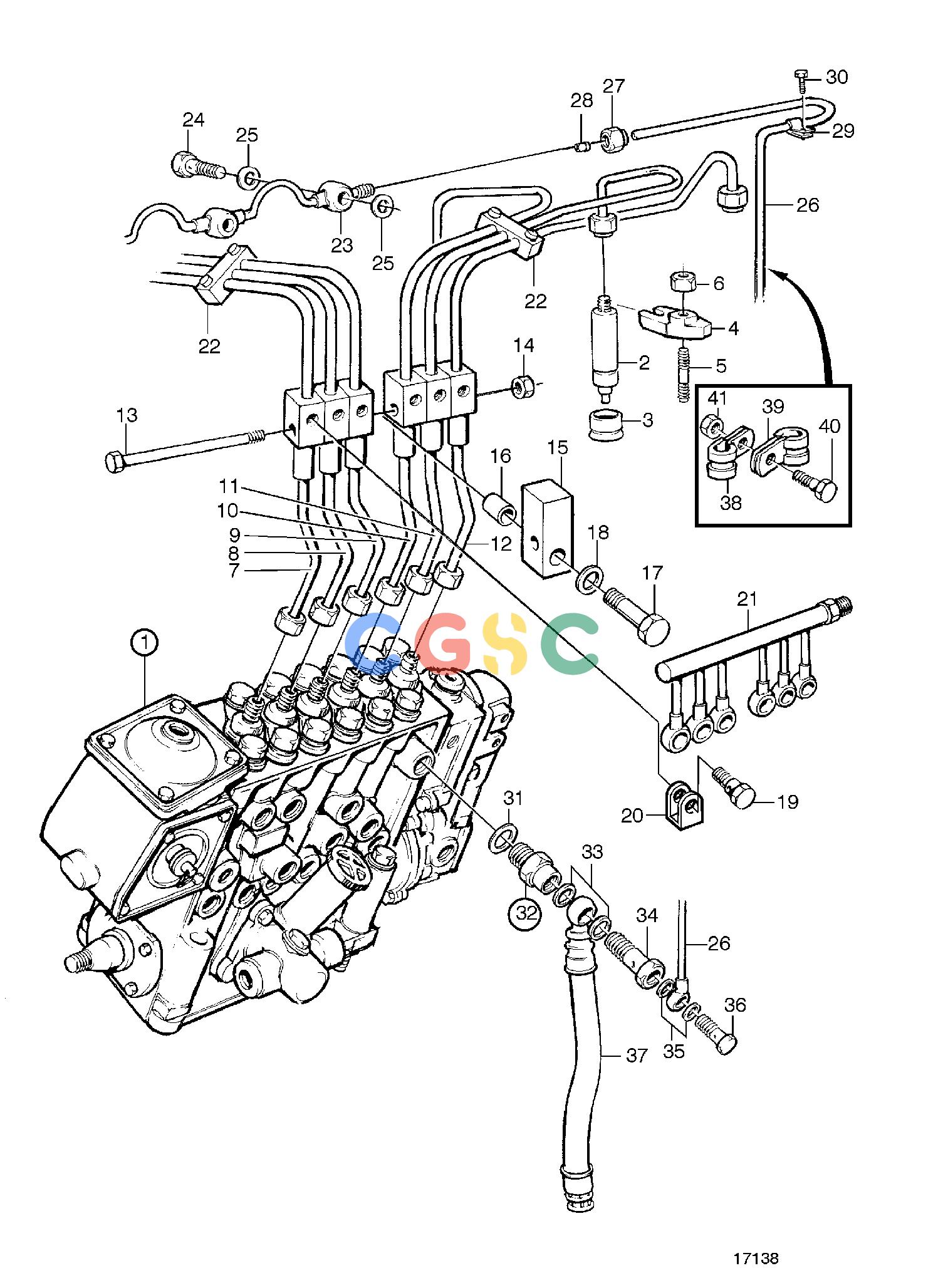

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AFuel SystemInjectors, Jacketed Pressure Pipes and Leak-off Line. Classifiable Fuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
511 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7740910_034
|
|
Injection pump
|
|
| 2. |
864069
|
[6] |
Injector
|
|
| 2. |
3803256
|
[6] |
Injector
|
|
| 2. |
|
|
|
|
| 3. |
469455
|
[6] |
Sealing ring
|
|
| 4. |
469797
|
[6] |
Yoke
|
|
| 5. |
1545022
|
[6] |
Stud
|
|
| 6. |
971095
|
[6] |
Flange nut
|
|
| 7. |
864689
|
[1] |
Pressure pipe
|
Cyl no 1
|
| 8. |
864690
|
[1] |
Pressure pipe
|
Cyl no 2
|
| 9. |
864691
|
[1] |
Pressure pipe
|
Cyl no 3
|
| 10. |
864692
|
[1] |
Pressure pipe
|
Cyl no 4
|
| 11. |
864693
|
[1] |
Pressure pipe
|
Cyl no 5
|
| 12. |
864694
|
[1] |
Pressure pipe
|
Cyl no 6
|
| 13. |
955288
|
[1] |
Hexagon screw
|
|
| 14. |
945407
|
[1] |
Flange nut
|
|
| 15. |
846119
|
[1] |
Spacer
|
|
| 16. |
822255
|
[1] |
Spacer sleeve
|
|
| 17. |
970966
|
[1] |
Hexagon screw
|
|
| 18. |
941908
|
[1] |
Spring washer
|
|
| 19. |
846183
|
[6] |
Hollow screw
|
|
| 20. |
845953
|
[6] |
Gasket
|
|
| 21. |
846121
|
[1] |
Leak-off line
|
|
| 22. |
|
|
|
|
| 23. |
471605
|
[1] |
Leak-off pipe
|
|
| 24. |
74033
|
[6] |
Hollow screw
|
|
| 25. |
947620
|
[12] |
Gasket
|
|
| 26. |
3826368
|
[1] |
Leak-off line
|
(848627)
|
| 27. |
956980
|
[1] |
Fitting nut
|
|
| 28. |
956966
|
[1] |
Ferrule
|
|
| 29. |
121563
|
[1] |
Clamp
|
|
| 30. |
967949
|
[1] |
Flange screw
|
(965175)
|
| 31. |
969011
|
[1] |
Gasket
|
|
| 32. |
3825154
|
[1] |
Overflow valve
|
|
| 33. |
969011
|
[2] |
Gasket
|
|
| 34. |
16496
|
[1] |
Hollow screw
|
|
| 35. |
947620
|
[2] |
Gasket
|
|
| 36. |
74033
|
[1] |
Hollow screw
|
|
| 37. |
|
|
|
Classifiable fuel line is not being offered by Volvo Penta.
|
| 38. |
952624
|
[1] |
Clamp
|
|
| 39. |
952622
|
[1] |
Clamp
|
|
| 40. |
967949
|
[1] |
Flange screw
|
(965175)
|
| 41. |
945407
|
[1] |
Flange nut
|
|
