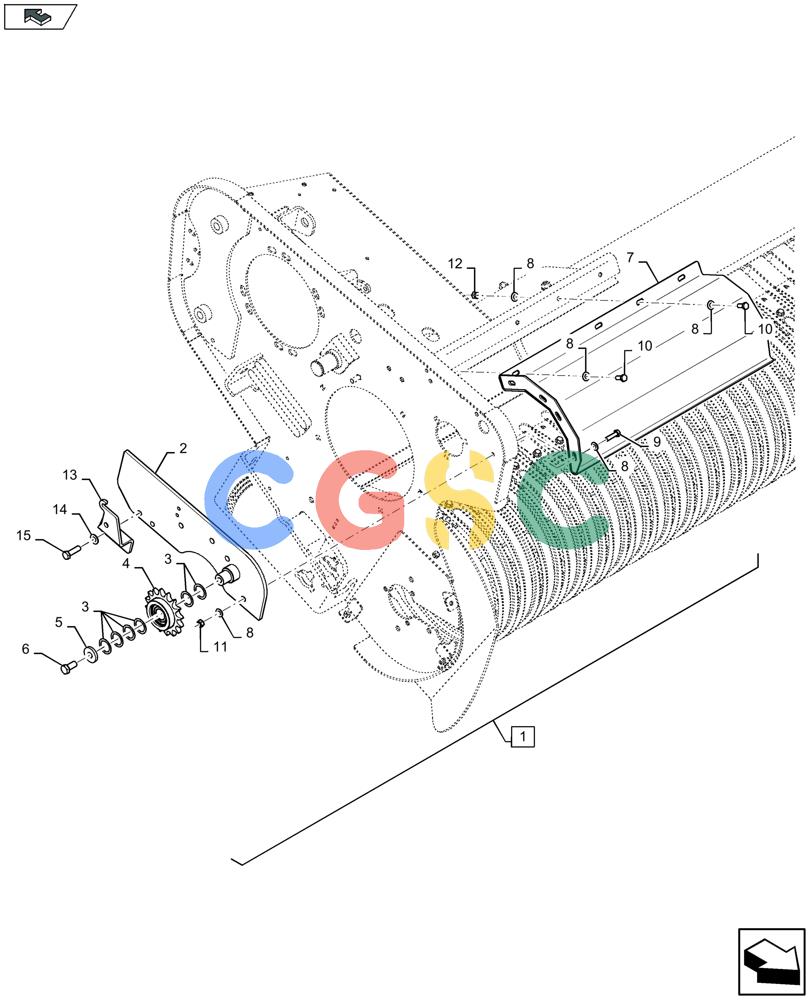

凯斯零件查询(LB324S) - BALER (9/12-) (88.060.025[01]) - SERVICE KIT: TOP IDLER SPROCKET STUB SHAFT RHS SHIELD - C145 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
281 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47951609
|
[1] |
SERVICE KIT
|
ZED
Incl 2 -15
|
| 2. |
47951603
|
[1] |
SUPPORT
|
ZED
|
| 3. |
419854
|
[6] |
WASHER,26mm ID x 35mm OD x 1mm Thk
|
ZED
|
| 4. |
47635044
|
[1] |
SERVICE KIT
|
ZED
|
| 5. |
86592701
|
[1] |
WASHER,13mm ID x 35mm OD x 5mm Thk
|
ZED
|
| 6. |
300388
|
[1] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 7. |
47812027
|
[1] |
SHIELD
|
ZED
|
| 8. |
322358
|
[15] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 9. |
43128
|
[4] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 10. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 11. |
86629542
|
[4] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 12. |
9706690
|
[3] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 13. |
47859583
|
[1] |
SUPPORT
|
ZED
|
| 14. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 15. |
9706704
|
[2] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
