沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AIntake and Exhaust SystemAir Filter: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
547 次

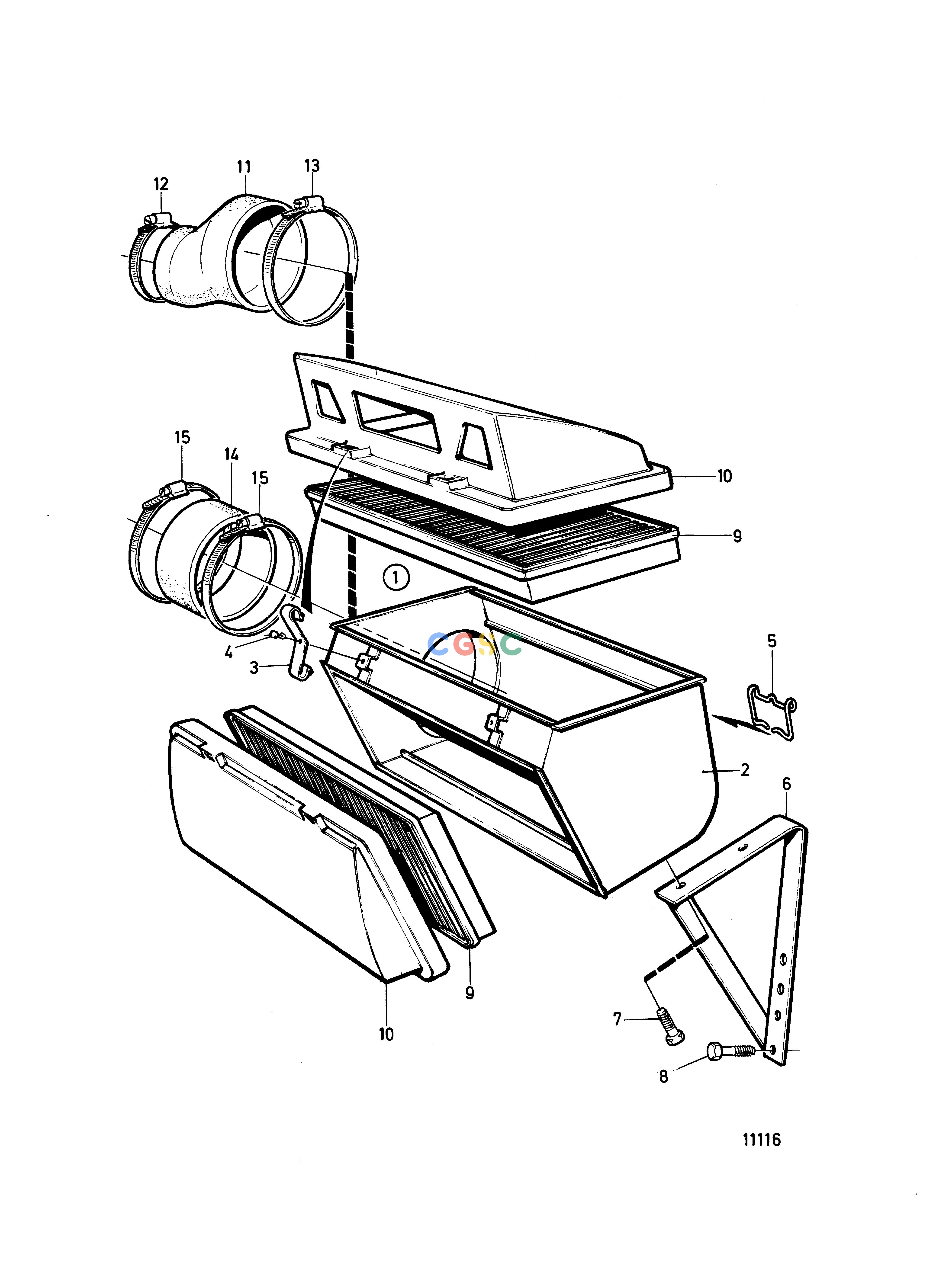

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863347
|
[1] |
Air filter housing
|
SN-XXXXXXXXXX/44088, Repl by 876299
|
| 1. |
876299
|
[1] |
Filter housing
|
SNXXXXXXXXXX/44089-
|
| 2. |
865357
|
[1] |
Filter housing
|
|
| 3. |
848620
|
[6] |
Clamp
|
|
| 4. |
1308917
|
[2] |
Rivet
|
|
| 5. |
673792
|
[4] |
Lock
|
|
| 6. |
865335
|
[1] |
Bracket
|
|
| 7. |
946440
|
[2] |
Flange screw
|
L=16mm
|
| 8. |
945444
|
[2] |
Flange screw
|
L=25mm
|
| 9. |
876185
|
[2] |
Air filter insert
|
|
| 10. |
842615
|
[2] |
Filter housing
|
|
| 11. |
847887
|
[1] |
Rubber fitting
|
ID for turbocharger=70mm and for filter housing=107mm., SN-XXXXXXXXXX/44088
|
| 12. |
943481
|
[1] |
Hose clamp
|
SN-XXXXXXXXXX/44088, ID=70mm
|
| 13. |
943484
|
[1] |
Hose clamp
|
SN-XXXXXXXXXX/44088, ID=107mm
|
| 14. |
864821
|
[1] |
Filter connection
|
ID for turbocharger and filter housing=107mm., SNXXXXXXXXXX/44089-, L=90mm
|
| 14. |
865367
|
[1] |
Hose
|
ID for turbocharger and filter housing=107mm., To be used when turbo 865428 is mounted on an engine
|
| 15. |
943484
|
[2] |
Hose clamp
|
SNXXXXXXXXXX/44089-, ID=107mm
|
