斗山零件查询CAR STEREO-JAPAN SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
817 次

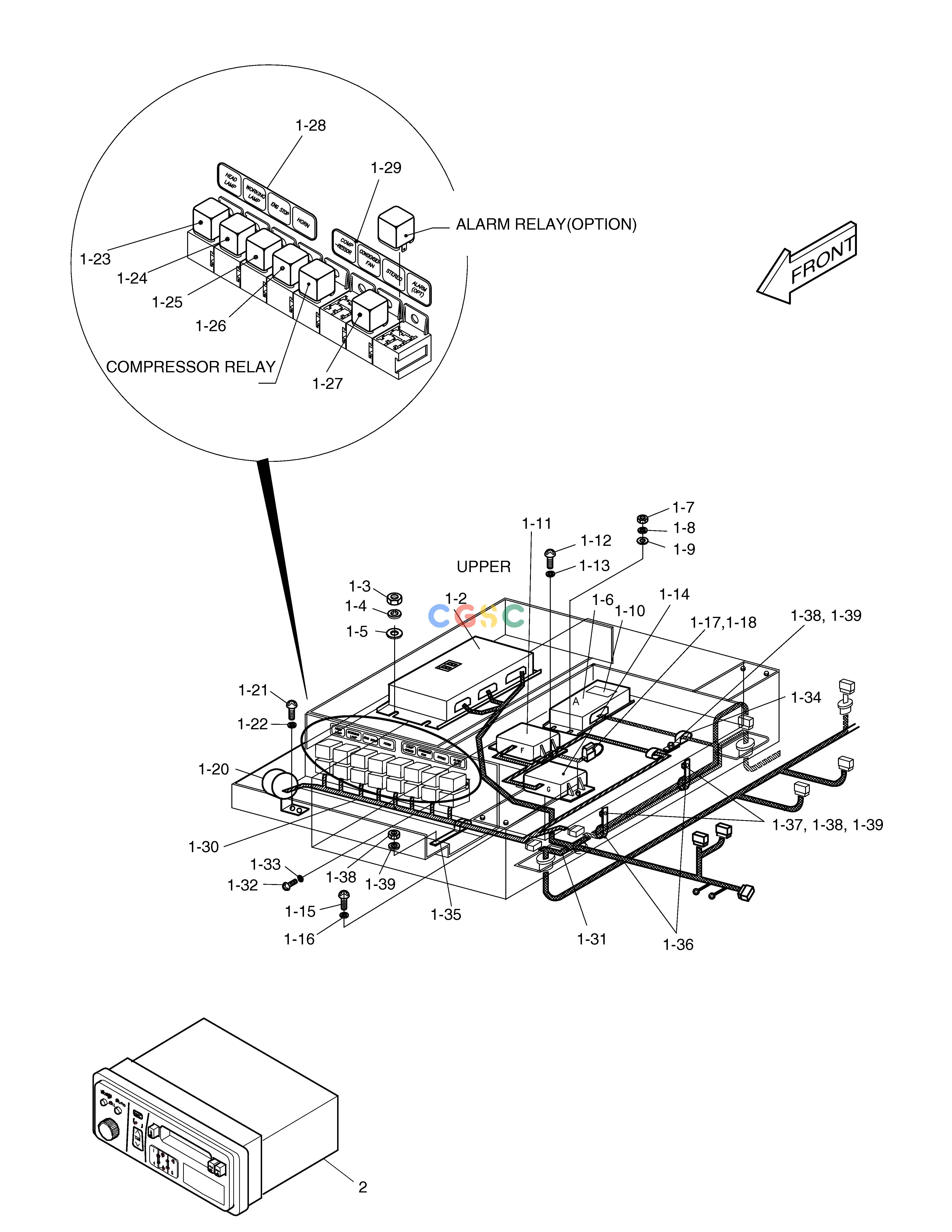

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2500-1253A
|
[-] |
ELECTRIC BOX ASS'Y
|
|
| 1. |
2500-1253B
|
[-] |
ELECTRIC BOX ASS'Y
|
|
| 1-10. |
2190-3231D2
|
[1] |
PLATE;NAME
|
|
| 1-11. |
2543-9015
|
[1] |
CONTROLLER;STARTER
|
|
| 1-12. |
S3450943
|
[2] |
SCREW
|
|
| 1-13. |
S5102303
|
[2] |
. WASHER
|
|
| 1-14. |
2537-9008
|
[1] |
TIMER;WIPER
|
|
| 1-15. |
S3450943
|
[2] |
SCREW
|
|
| 1-16. |
S5102303
|
[2] |
. WASHER
|
|
| 1-17. |
2530-1760
|
[1] |
CONNECTOR;JOINT
|
|
| 1-18. |
2124-1622D1
|
[2] |
CLIP,BAND
|
|
| 1-2. |
2543-1035
|
[1] |
CONTROLLER;EPOS-V
|
|
| 1-20. |
2516-1116
|
[1] |
BUZZER
|
|
| 1-21. |
S3450943
|
[2] |
SCREW
|
|
| 1-22. |
S5102303
|
[2] |
. WASHER
|
|
| 1-23. |
2544-9033
|
[1] |
RELAY
|
|
| 1-24. |
2544-9033
|
[1] |
RELAY
|
|
| 1-25. |
2544-9033
|
[1] |
RELAY
|
|
| 1-26. |
2544-9033
|
[1] |
RELAY
|
|
| 1-27. |
2544-9033
|
[1] |
RELAY
|
|
| 1-28. |
2190-2037D19
|
[1] |
PLATE;NAME
|
|
| 1-29. |
2190-2037D20
|
[1] |
PLATE;NAME
|
|
| 1-3. |
S4012633
|
[4] |
NUT
|
|
| 1-30. |
2530-1603B
|
[1] |
HARNESS;ELECTRIC BOX
|
|
| 1-31. |
2530-1604B
|
[1] |
HARNESS;CABIN
|
|
| 1-32. |
S3450823
|
[8] |
SCREW
|
|
| 1-33. |
S5100203
|
[8] |
WASHER
|
|
| 1-34. |
2124-1509D2
|
[2] |
CLIP
|
|
| 1-35. |
2124-1509D4
|
[1] |
CLIP D30/M8
|
|
| 1-36. |
2124-1509D5
|
[2] |
CLIP D36/M8
|
|
| 1-37. |
S0508853
|
[2] |
. BOLT
|
|
| 1-38. |
S4012533
|
[4] |
NUT
|
|
| 1-39. |
S5102503
|
[4] |
. WASHER
|
|
| 1-4. |
S5102603
|
[4] |
. WASHER
|
|
| 1-5. |
S5010613
|
[4] |
WASHER
|
|
| 1-6. |
2543-1036
|
[1] |
CONTROLLER;THROTTLE
|
|
| 1-6. |
543-00074
|
[1] |
CONTROLLER;THROTTLE
|
|
| 1-7. |
S4012333
|
[4] |
NUT
|
|
| 1-8. |
S5102303
|
[4] |
. WASHER
|
|
| 1-9. |
S5010313
|
[4] |
WASHER
|
|
| 2. |
2541-9023
|
[1] |
CAR STEREO
|
|
