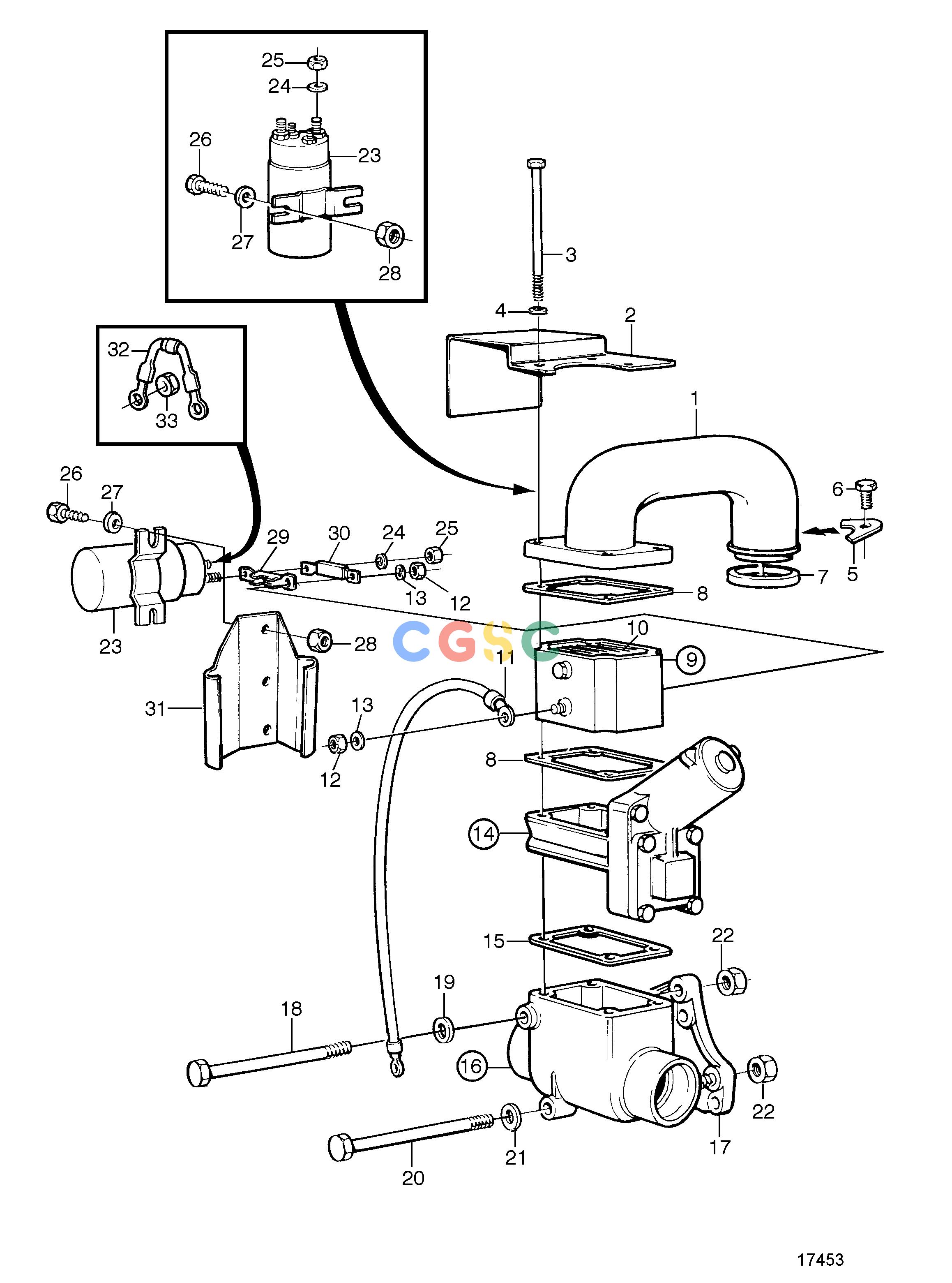

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AIntake and Exhaust SystemBy-pass Valve and Starter ElementEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
847823
|
[1] |
Connecting pipe
|
Starting heater-inlet manifold.
|
| 2. |
863375
|
[1] |
Protecting plate
|
|
| 3. |
955310
|
[1] |
Hexagon screw
|
Earlier prod,L=130mm
|
| 3. |
955311
|
[3] |
Hexagon screw
|
Earlier prod,L=140mm
|
| 4. |
941907
|
[4] |
Spring washer
|
|
| 4. |
976944
|
[4] |
Washer
|
Earlier prod, (960141)
|
| 5. |
848287
|
[1] |
Retainer
|
|
| 6. |
946544
|
[1] |
Flange screw
|
|
| 7. |
925071
|
[1] |
O-ring
|
|
| 8. |
424619
|
[2] |
Gasket
|
|
| 9. |
863377
|
[1] |
Heater
|
12V
|
| 9. |
863378
|
[1] |
Starter element
|
24V
|
| 10. |
|
|
|
24V
|
| 11. |
|
|
|
|
| 12. |
17624
|
[2] |
Hexagon nut
|
|
| 13. |
955894
|
[2] |
Washer
|
|
| 14. |
863585
|
[1] |
Valve
|
|
| 14. |
|
|
|
|
| 15. |
471682
|
[1] |
Gasket
|
|
| 16. |
848808
|
[1] |
Shutter housing
|
|
| 17. |
847825
|
[1] |
Bracket
|
|
| 18. |
970971
|
[2] |
Hexagon screw
|
L=35mm
|
| 19. |
955897
|
[2] |
Washer
|
|
| 20. |
969225
|
[2] |
Flange screw
|
(955309)
|
| 21. |
941907
|
[2] |
Spring washer
|
|
| 22. |
946036
|
[2] |
Lock nut
|
|
| 23. |
872242
|
[1] |
Relay
|
12V, (1577375)
|
| 23. |
873962
|
[1] |
Relay
|
24V
|
| 24. |
941907
|
[2] |
Spring washer
|
|
| 25. |
955782
|
[2] |
Hexagon nut
|
|
| 26. |
955244
|
[2] |
Hexagon screw
|
|
| 27. |
940090
|
[2] |
Washer
|
|
| 28. |
946577
|
[2] |
Lock nut
|
|
| 29. |
471477
|
[1] |
Fuse
|
|
| 30. |
421692
|
[1] |
Support
|
|
| 31. |
866463
|
[1] |
Attaching plate
|
(471811)
|
| 32. |
873789
|
[1] |
Diode
|
|
| 33. |
965483
|
[2] |
Flange nut
|
|
