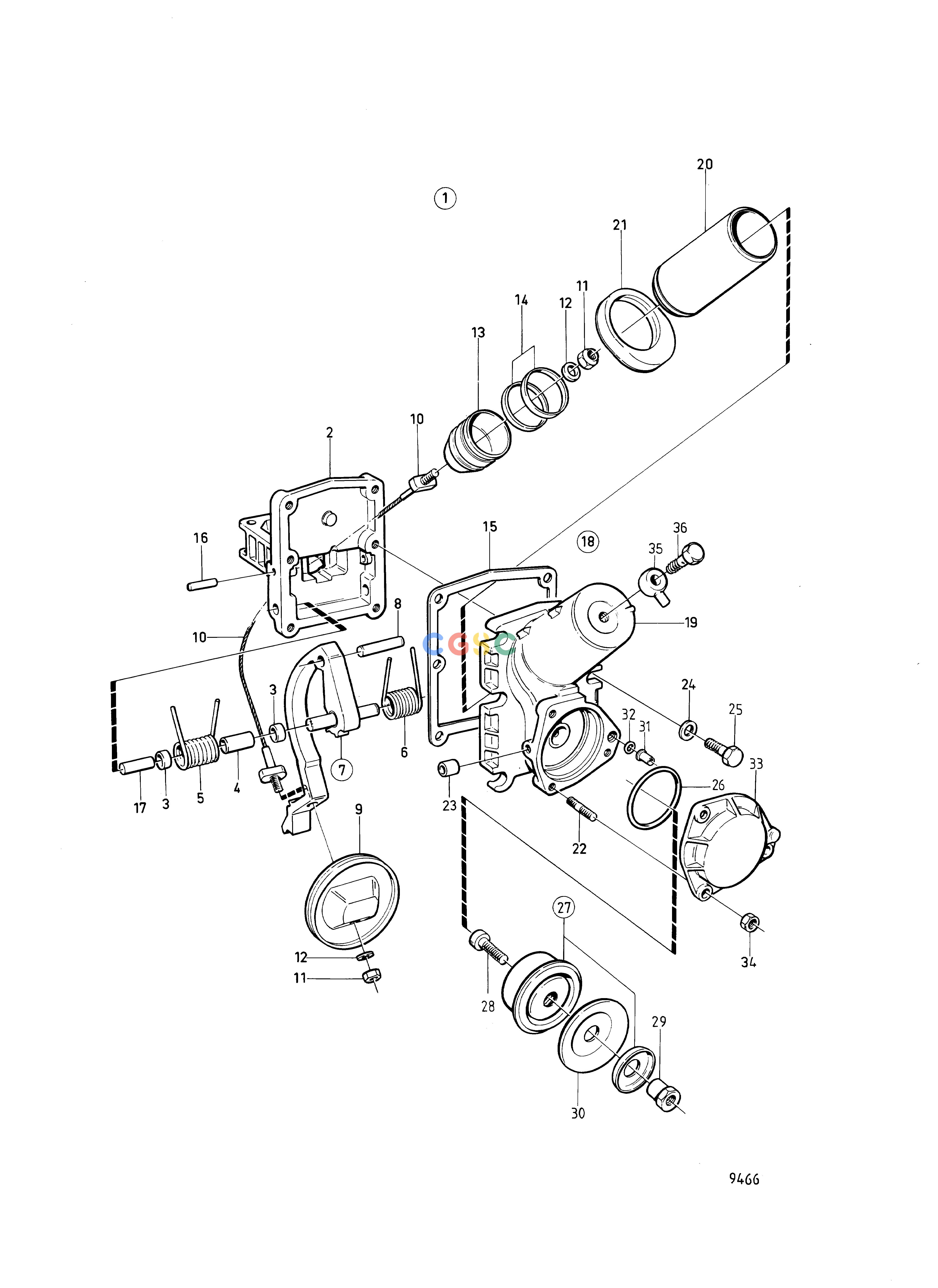

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AIntake and Exhaust SystemBy-pass Valve, Components: 863585EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863585
|
[1] |
Valve
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
863586
|
[1] |
Torsion spring
|
Left
|
| 6. |
863587
|
[1] |
Torsion spring
|
Right
|
| 7. |
863776
|
[1] |
Arm
|
|
| 8. |
951979
|
[1] |
Spring pin
|
|
| 9. |
471676
|
[1] |
Shutter
|
|
| 10. |
477312
|
[1] |
Cable
|
|
| 11. |
946035
|
[2] |
Lock nut
|
|
| 12. |
955892
|
[2] |
Washer
|
|
| 13. |
|
|
|
|
| 14. |
471681
|
[2] |
Support ring
|
|
| 15. |
471684
|
[1] |
Gasket
|
|
| 16. |
950545
|
[2] |
Pin
|
|
| 17. |
471668
|
[2] |
Pin
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 25. |
946671
|
[6] |
Flange screw
|
|
| 31. |
471687
|
[1] |
Nozzle
|
|
| 32. |
949187
|
[1] |
O-ring
|
|
| 33. |
|
|
|
|
| 34. |
945407
|
[3] |
Flange nut
|
|
| 35. |
74039
|
[1] |
Banjo nipple
|
|
| 36. |
969299
|
[1] |
Hollow screw
|
|
