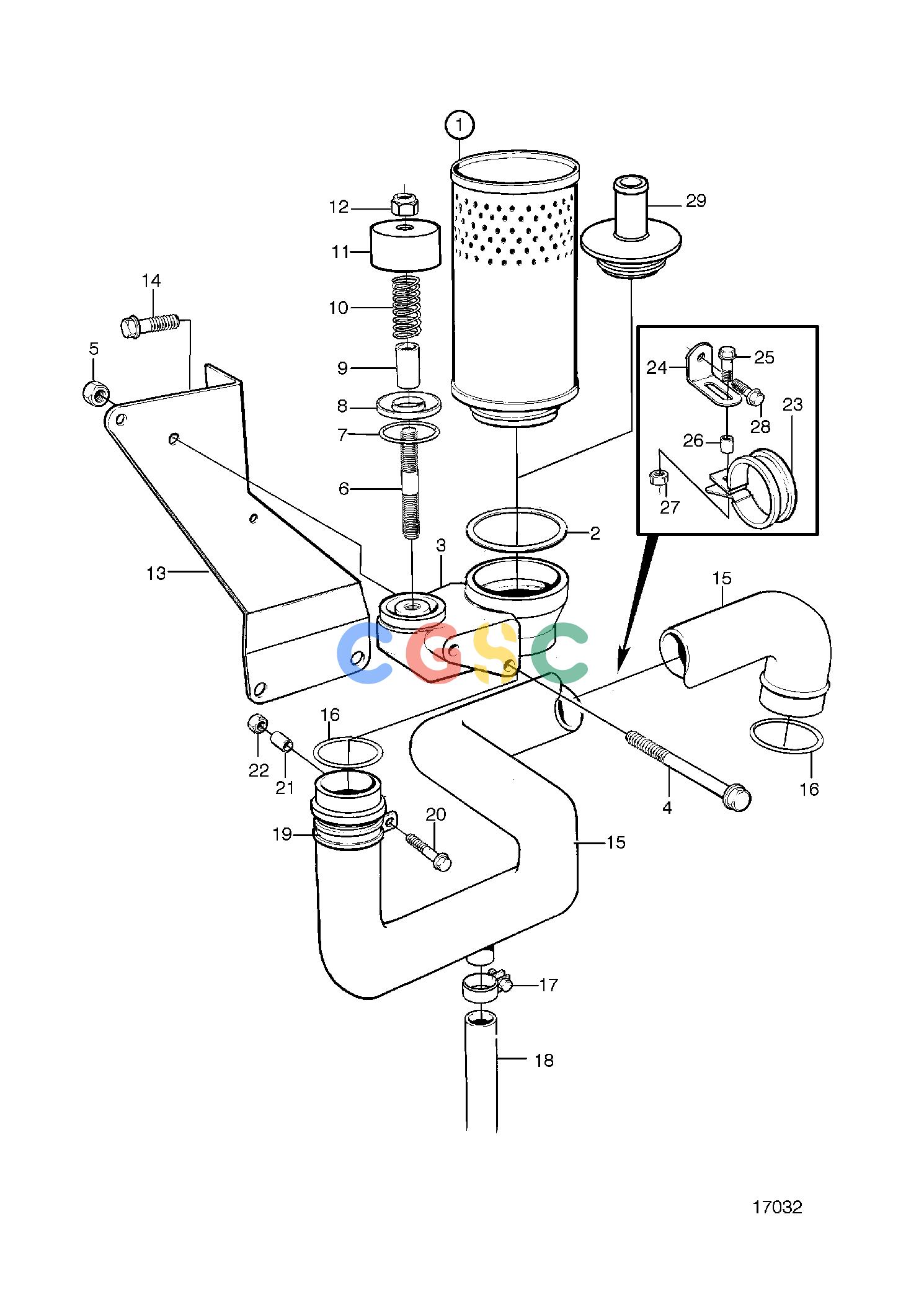

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AIntake and Exhaust SystemCrankhouse Vent and Inst. Comps SN-XXXXXXXXX/48751EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
763 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
876069
|
[1] |
Filter
|
|
| 2. |
843449
|
[1] |
Gasket
|
|
| 3. |
843356
|
[1] |
Connector housing
|
|
| 4. |
965182
|
[2] |
Flange screw
|
|
| 5. |
945408
|
[2] |
Flange nut
|
(968862)
|
| 6. |
924058
|
[1] |
Stud
|
|
| 7. |
421158
|
[1] |
Sealing ring
|
|
| 8. |
842972
|
[1] |
Valve disc
|
|
| 9. |
842974
|
[1] |
Spacer sleeve
|
|
| 10. |
843301
|
[1] |
Spring
|
|
| 11. |
842975
|
[1] |
Protecting casing
|
|
| 12. |
963105
|
[1] |
Lock nut
|
|
| 13. |
863365
|
[1] |
Bracket
|
|
| 14. |
945444
|
[1] |
Flange screw
|
|
| 15. |
863369
|
[1] |
Breather pipe
|
Repl by pipe set 865332., SN-XXXXXXXXXX/46525
|
| 15. |
864726
|
[1] |
Breather pipe
|
Repl by pipe set 865332., SNXXXXXXXXXX/46526-48751
|
| 16. |
421158
|
[2] |
Sealing ring
|
|
| 17. |
947935
|
[2] |
Hose clamp
|
|
| 17. |
945754
|
[2] |
Hose clamp
|
|
| 18. |
1272328
|
[1] |
Hose
|
|
| 18. |
943707
|
[1] |
Hose
|
|
| 19. |
952637
|
[1] |
Clamp
|
|
| 20. |
965212
|
[1] |
Flange screw
|
|
| 21. |
846339
|
[2] |
Spacer sleeve
|
|
| 22. |
945407
|
[1] |
Flange nut
|
|
| 23. |
952637
|
[1] |
Clamp
|
|
| 24. |
965552
|
[1] |
Bracket
|
(965570)
|
| 25. |
965212
|
[1] |
Flange screw
|
|
| 26. |
846339
|
[1] |
Spacer sleeve
|
|
| 27. |
945407
|
[1] |
Flange nut
|
|
| 28. |
946671
|
[1] |
Flange screw
|
|
| 29. |
845260
|
[1] |
Hose attachment
|
|
