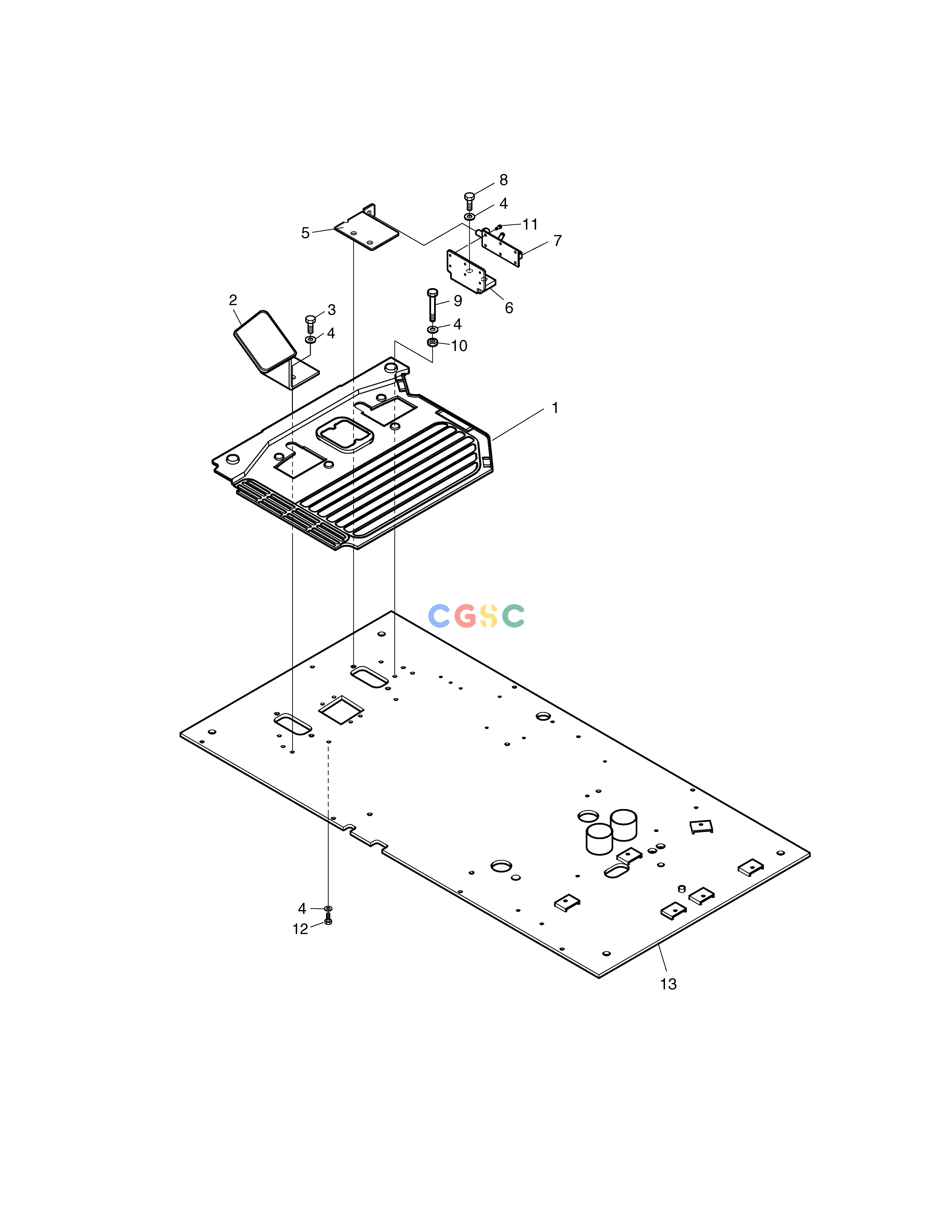

斗山零件查询FLOOR PLATE-ARTI.BOOM & TILTING SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-01866
|
[-] |
FLOOR ASS'Y
|
|
| 1. |
161-00292
|
[1] |
MAT;FLOOR
|
|
| 10. |
2121-1311D4
|
[1] |
NUT
|
|
| 11. |
S2202861
|
[6] |
BOLT;SOCKET M5X0.8X10
|
|
| 12. |
S0511553
|
[4] |
BOLT M10X1.5X14
|
|
| 13. |
621-01515
|
[1] |
PLATE;FLOOR
|
|
| 2. |
621-01509A
|
[1] |
REST;FOOT
|
|
| 3. |
2120-2166D2
|
[2] |
BOLT
|
|
| 4. |
2114-1898D1
|
[9] |
WASHER
|
|
| 5. |
621-01592
|
[1] |
PLATE;FLOOR
|
|
| 6. |
195-01473
|
[1] |
BRACKET;PEDAL(R.H)
|
|
| 7. |
2125-9059
|
[1] |
SLIDE LATCH
|
|
| 8. |
2120-2166D1
|
[2] |
BOLT
|
|
| 9. |
2120-2166D40
|
[1] |
BOLT M10X1.5X70
|
|
