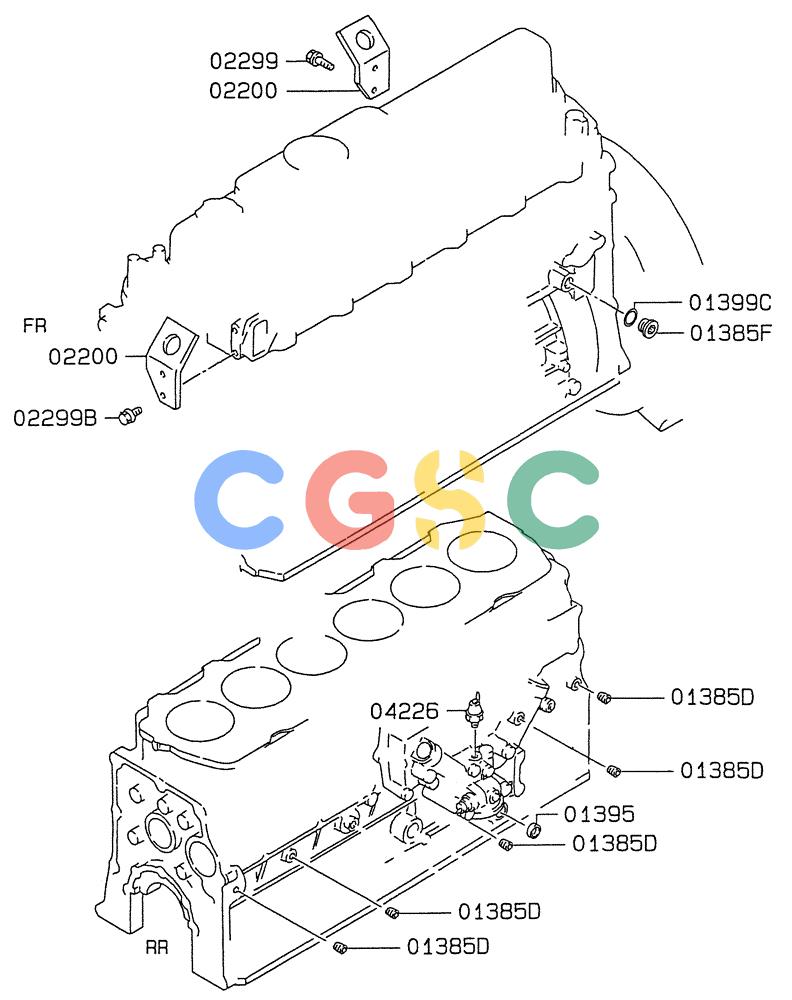

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (08-014) - ATTACHING PARTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
633 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01385D. | VAMH037788 | [5] | PLUG | KOBPLUG, CYLINDER BLOCK, TAPER, 1/8, (0210-1) |
| 01385F. | VAMH037137 | [1] | PLUG | KOBPLUG, CYLINDER BLOCK, SCREW, 20, (0210-1) |
| 1395. | VAMH037764 | [1] | CAP | KOBCAP, CYLINDER BLOCK, 17.2, (0210-1) |
| 01399C. | VAMH035077 | [1] | GASKET | KOBGASKET, CYLINDER BLOCK, 20, (0210-1) |
| 2200. | VAME019926 | [2] | PLATE | KOBENGINE HANGER, (0210-1) |
| 2299. | VAMS146004 | [2] | BOLT | KOBBOLT, ENG HANGER, FLANGE, 10X20, (0210-1) |
| 02299B. | VAMF140225 | [2] | BOLT | KOBBOLT, ENG HANGER, FLANGE, 8X20, (0210-1) |
| 4226. | VAMC840219 | [1] | SWITCH | KOBSWITCH, ENG OIL PRESSURE, (0210-1) Superseded by part number: H411892 |
