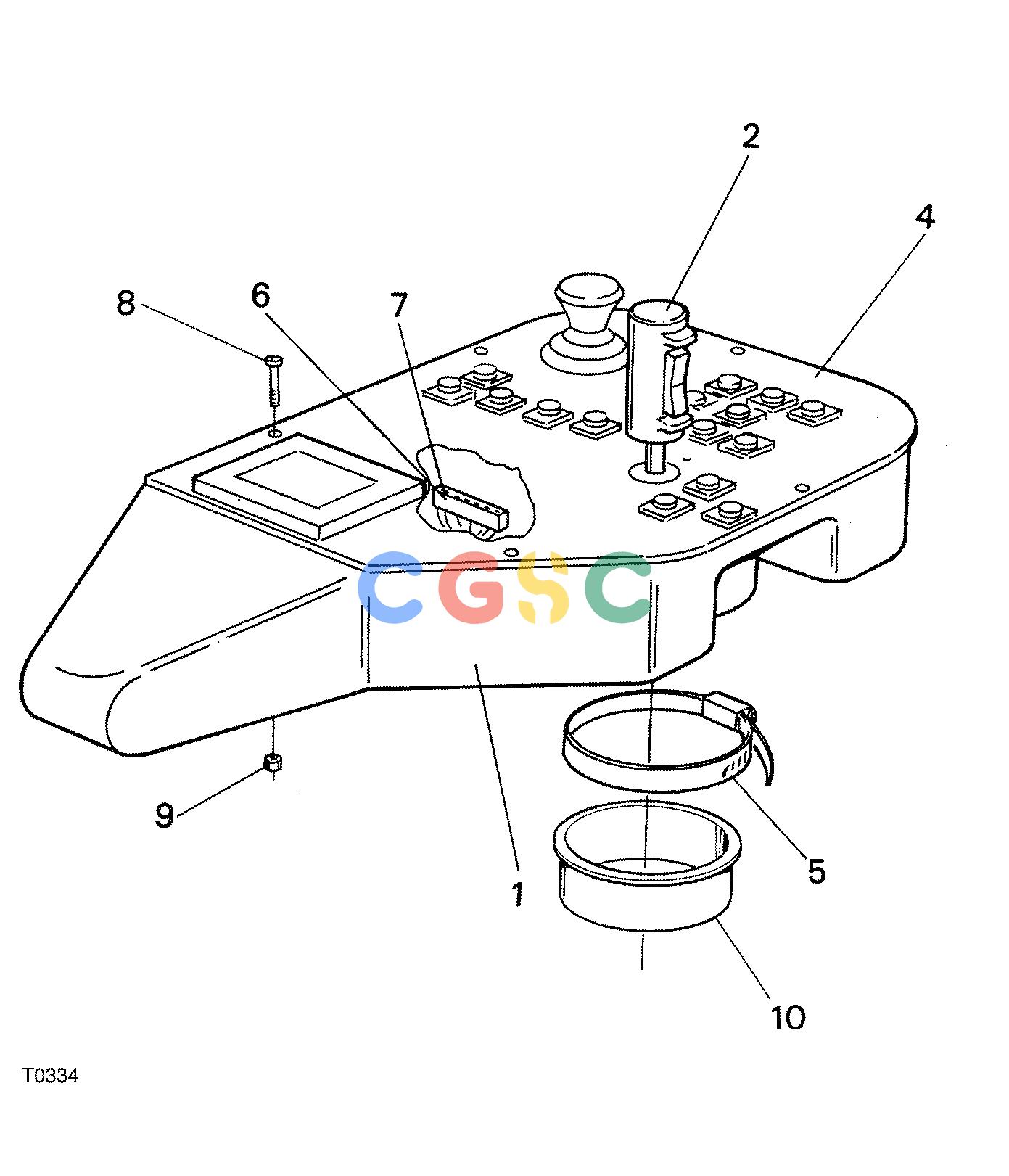

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | F021400 | [1] | Case | |
| 2. | F036716 | [1] | JOYSTICK | |
| 4. | F043478 | [1] | KCM ASSY | |
| 5. | F003680 | [1] | Hose Clamp | |
| 6. | F024685 | [1] | Connector | |
| 7. | F024684 | [8] | Terminal | |
| 8. | F029255 | [5] | Screw | |
| 9. | F029254 | [5] | Nut | |
| 10. | F021257 | [1] | Bushing |
广数供应链运营团队, 15 02月, 2025，浏览： 419 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | F021400 | [1] | Case | |
| 2. | F036716 | [1] | JOYSTICK | |
| 4. | F043478 | [1] | KCM ASSY | |
| 5. | F003680 | [1] | Hose Clamp | |
| 6. | F024685 | [1] | Connector | |
| 7. | F024684 | [8] | Terminal | |
| 8. | F029255 | [5] | Screw | |
| 9. | F029254 | [5] | Nut | |
| 10. | F021257 | [1] | Bushing |
