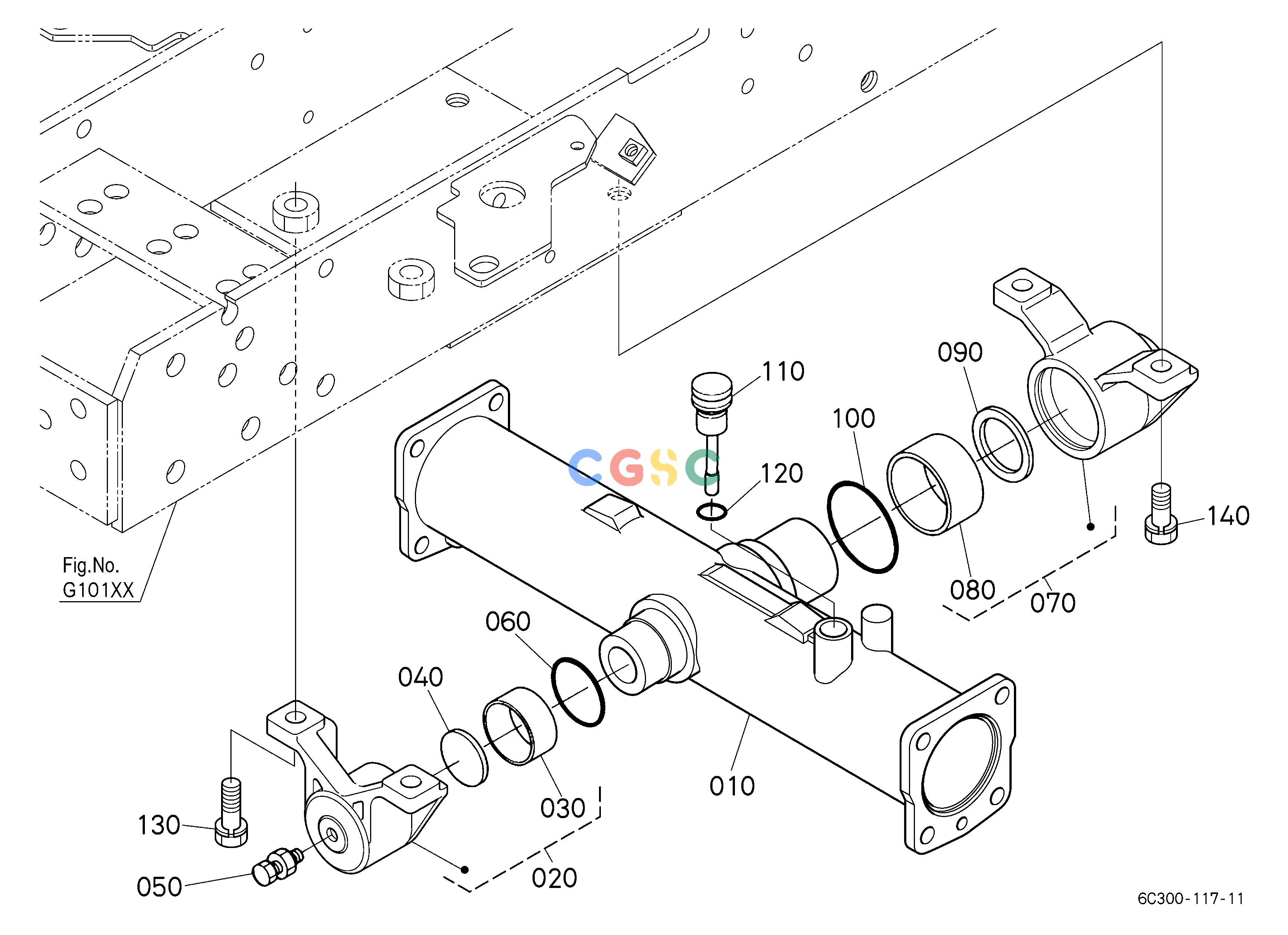

久保田零件查询G10502 FRONT AXLE CASE FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C14077513
|
[1] |
CASE,FRONT AXLE
|
16.7200(lbs); 7.600
|
| 010. |
6C14056110
|
[1] |
CASE,FRONT AXLE
|
16.7200(lbs); 7.600
|
| 020. |
6C30056172
|
[1] |
ASSY HOLDER
|
2.7280(lbs); 1.240
|
| 030. |
0851105020
|
[1] |
BUSH
|
0.1320(lbs); 0.060
|
| 040. |
3741056180
|
[1] |
COLLAR,THRUST
|
0.1320(lbs); 0.060
|
| 050. |
6C04056170
|
[1] |
COMP.BOLT,FRONT AXLE
|
0.0880(lbs); 0.040
|
| 060. |
0481150550
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 070. |
6C30056182
|
[1] |
ASSY HOLDER
|
3.6740(lbs); 1.670
|
| 080. |
0851106530
|
[1] |
BUSH
|
0.2640(lbs); 0.120
|
| 090. |
6C04056150
|
[1] |
COLLAR,THRUST
|
0.0440(lbs); 0.020
|
| 100. |
0481150700
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 110. |
6C04056123
|
[1] |
GAUGE,OIL
|
0.0528(lbs); 0.024
|
| 120. |
0481600180
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 130. |
0113351440
|
[2] |
BOLT,SEMS
|
0.1540(lbs); 0.070
|
| 140. |
0113351430
|
[2] |
BOLT,SEMS
|
0.2200(lbs); 0.100
|
