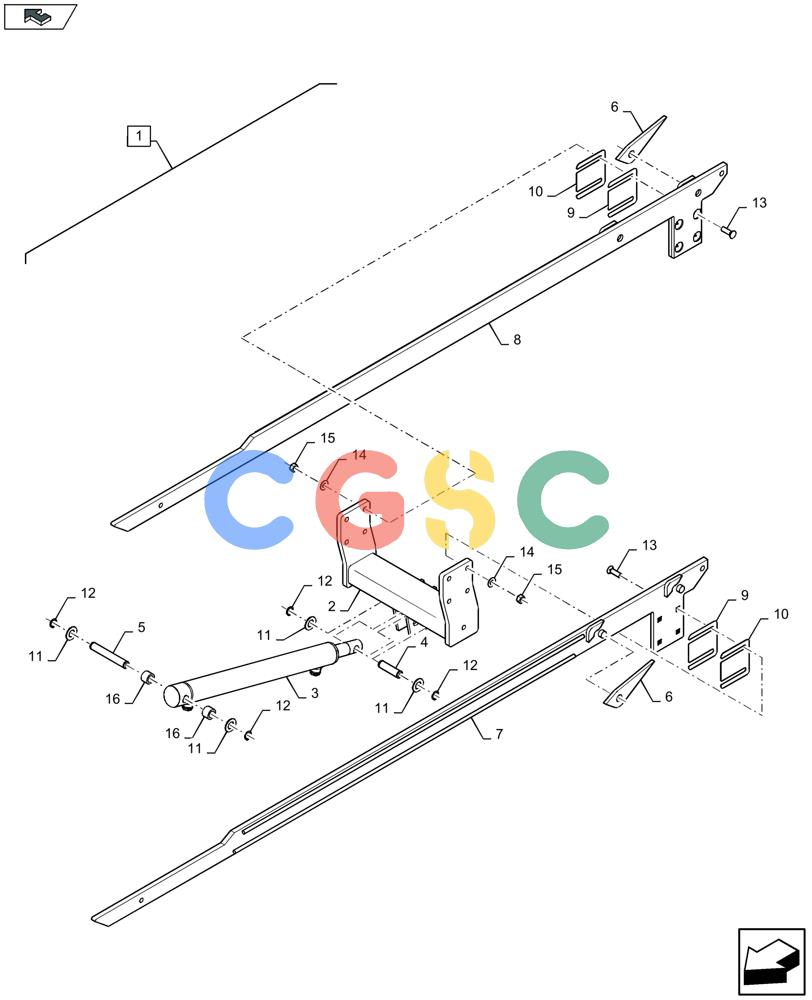

凯斯零件查询(LB324S) - BALER (9/12-) (88.070.003[01]) - DIA KIT: PARTIAL BALE EJECT - C084 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1017 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47383922
|
[1] |
DIA KIT, HARVESTER
|
ZED
Incl 2 - 16
|
| 2. |
47480765
|
[1] |
CROSSRAIL
|
ZED
|
| 3. |
84494145
|
[1] |
HYDRAULIC CYLINDER,Double Acting, 35mm Rod, 460mm Stroke
|
ZED
|
| 4. |
87491174
|
[1] |
SHAFT
|
ZED
|
| 5. |
84529169
|
[1] |
SHAFT,20mm OD x 135mm L
|
ZED
|
| 6. |
84145759
|
[4] |
TOOTH
|
ZED
|
| 7. |
84599704
|
[1] |
LATH
|
ZED
|
| 8. |
84599681
|
[1] |
LATH
|
ZED
|
| 9. |
84570720
|
[2] |
SHIM,108mm OD x 1.07mm Thk
|
ZED
|
| 10. |
84570728
|
[2] |
SHIM,108mm OD x 1.91mm Thk
|
ZED
|
| 11. |
378247
|
[4] |
WASHER,21mm ID x 39mm OD x 3mm Thk
|
ZED
|
| 12. |
370024
|
[4] |
CIRCLIP,M20, Ext
|
NH
|
| 13. |
87314103
|
[8] |
PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9
|
CAS
|
| 14. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 15. |
9706685
|
[8] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 16. |
84571868
|
[2] |
SLEEVE,20mm ID x 30mm OD x 21mm L
|
ZED
|
