斗山零件查询MAIN PIPING-ARTI.BOOM SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
922 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

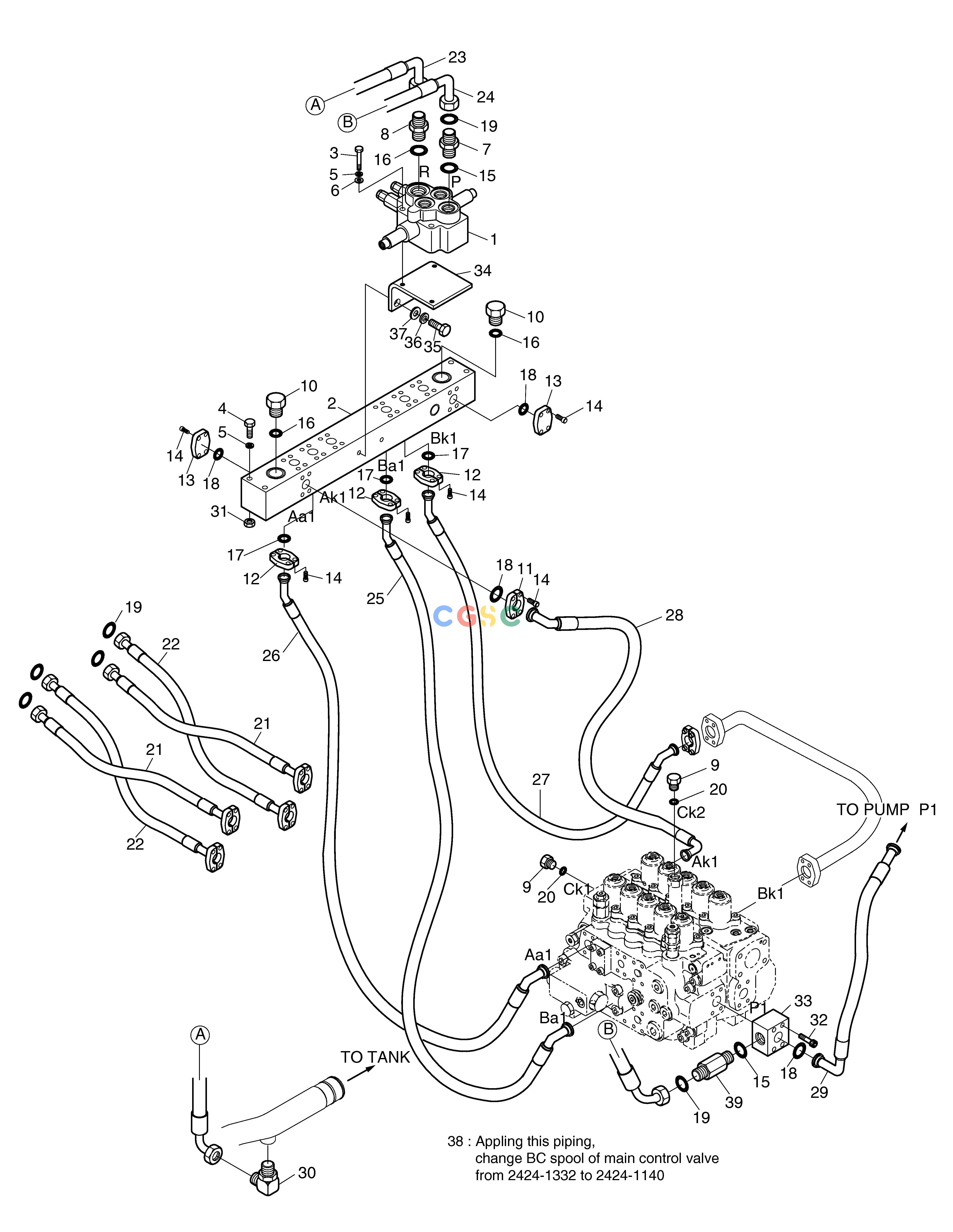

400-00518
|
[-] |
MAIN PIPING
|
|
| 1. |
2420-9365
|
[1] |
VALVE;CONTROL
|
|
| 10. |
2181-1950D9
|
[2] |
PLUG
|
|
| 11. |
2181-9083
|
[2] |
FLANGE;SPLIT
|
|
| 12. |
2181-9079
|
[6] |
FLANGE
|
|
| 13. |
2181-2157D5
|
[2] |
FLANGE;COVER
|
|
| 14. |
S2212261
|
[24] |
SOCKET-HEAD BOLT
|
S2212266
|
| 14. |
S2212266
|
[24] |
BOLT
|
|
| 15. |
S8000231
|
[2] |
O-RING
|
|
| 16. |
S8000291
|
[3] |
O-RING
|
|
| 17. |
2180-1026D2
|
[3] |
O-RING
|
|
| 18. |
2180-1026D19
|
[4] |
O-RING
|
|
| 19. |
S8030121
|
[4] |
O-RING
|
|
| 2. |
423-00063
|
[1] |
BLOCK
|
|
| 20. |
S8000181
|
[2] |
O-RING
|
|
| 21. |
2184-1229D6
|
[2] |
HOSE 3/4"-760L
|
|
| 22. |
2184-1229D10
|
[2] |
HOSE 3/4"-720L
|
|
| 23. |
2184-1036D190
|
[1] |
HOSE PF1/2-1600L
|
|
| 24. |
2184-1198D75
|
[1] |
HOSE 3/4"-1050L
|
|
| 25. |
2184-1094D68
|
[1] |
HOSE 1"-3/4"-1200L
|
|
| 26. |
2184-1094D64
|
[1] |
HOSE 1"-900L
|
|
| 27. |
2184-1094D61
|
[1] |
HOSE 3/4"-750L
|
|
| 28. |
2184-1083D66
|
[1] |
HOSE 1"-3/4"-1200L
|
|
| 29. |
2184-1100D166
|
[1] |
HOSE PF3/4-1150L
|
|
| 3. |
S0559353
|
[3] |
BOLT M10X1.5X90
|
|
| 30. |
2181-1702D73
|
[1] |
ELBOW
|
|
| 31. |
2114-1058D10
|
[4] |
WASHER
|
|
| 32. |
S2213361
|
[4] |
BOLT;SOCKET M10X1.5X85
|
S2213366
|
| 32. |
S2213366
|
[4] |
BOLT;SOCKET M10X1.5X85
|
|
| 33. |
423-00051
|
[1] |
BLOCK;TEE
|
|
| 34. |
195-00419
|
[1] |
BRACKET
|
|
| 35. |
S0521253
|
[2] |
BOLT M16X2.0X30
|
S0521266
|
| 35. |
S0521266
|
[2] |
BOLT
|
|
| 36. |
S5102903
|
[2] |
WASHER
|
|
| 37. |
S5010913
|
[2] |
WASHER
|
|
| 38. |
2424-1140
|
[1] |
SPOOL;BC
|
|
| 39. |
2181-2627D4
|
[1] |
ADAPTER
|
|
| 4. |
S0559553
|
[4] |
BOLT M10X1.5X100
|
|
| 5. |
S5102603
|
[7] |
. WASHER
|
|
| 6. |
S5010613
|
[3] |
WASHER
|
|
| 7. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 8. |
2181-1126D25
|
[1] |
ADAPTER
|
|
| 9. |
2181-1950D7
|
[2] |
. PLUG
|
|
