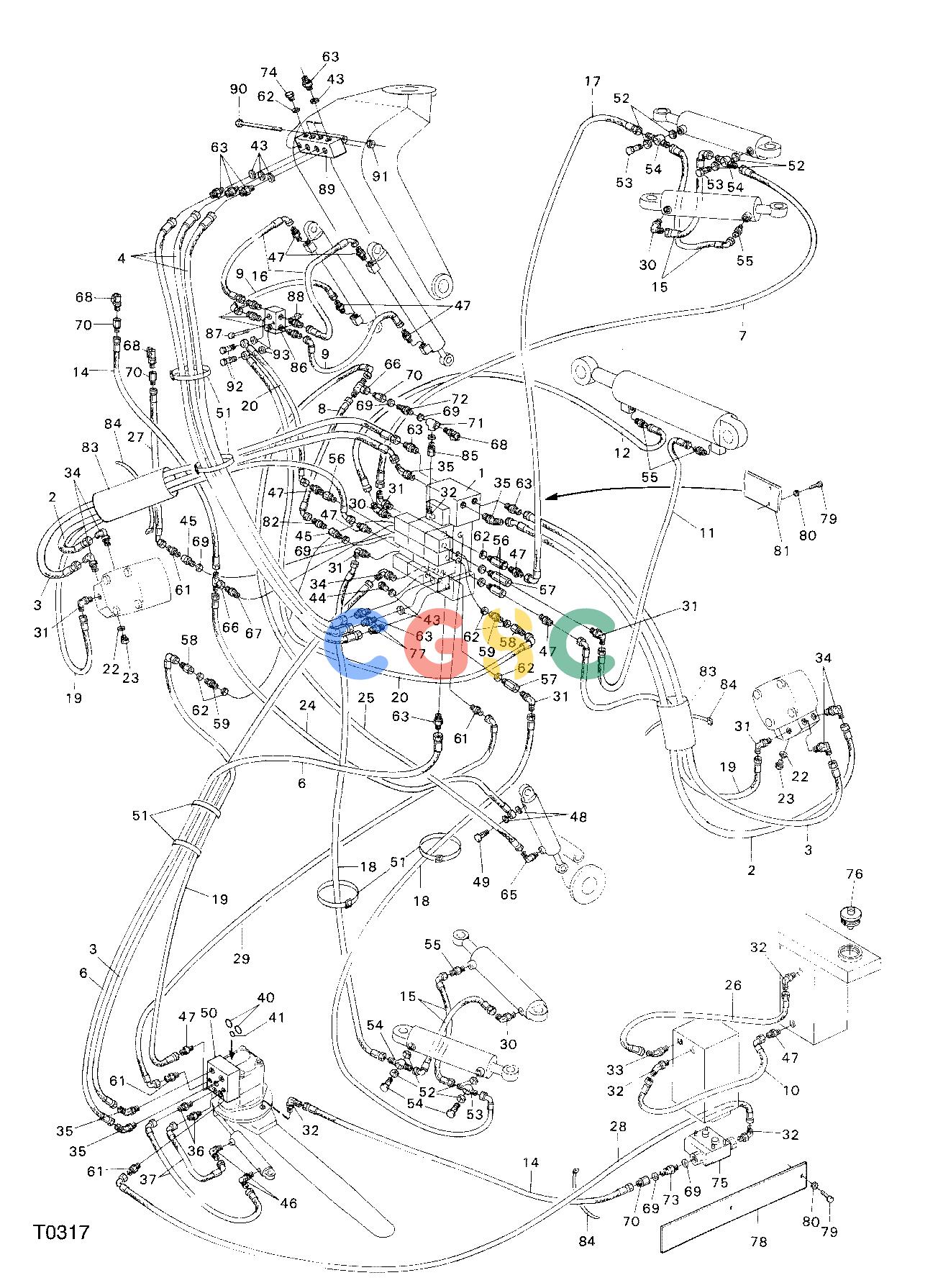

约翰迪尔零件查询746B ATT - ATTACHMENTS ENGINE HYDRAULIC SYSTEM F042684 11 18 T0317 [T0317]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
492 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F024698
|
[1] |
HYDRAULIC VALVE
|
|
| 2. |
F026614
|
[2] |
HOSE-ASSY
|
|
| 3. |
F026359
|
[3] |
HOSE-ASSY
|
|
| 4. |
F020081
|
[3] |
HOSE-ASSY
|
|
| 6. |
F020079
|
[1] |
HOSE-ASSY
|
|
| 7. |
F020185
|
[1] |
HOSE-ASSY
|
|
| 8. |
F032131
|
[1] |
HOSE-ASSY
|
|
| 9. |
F025465
|
[2] |
HOSE-ASSY
|
|
| 10. |
F027812
|
[1] |
HOSE-ASSY
|
|
| 11. |
F025460
|
[1] |
HOSE-ASSY
|
|
| 12. |
F025459
|
[1] |
HOSE-ASSY
|
|
| 14. |
F025466
|
[2] |
HOSE-ASSY
|
|
| |
F020133
|
[2] |
HOSE-ASSY
|
|
| 15. |
F012526
|
[6] |
HOSE-ASSY
|
|
| 16. |
F025462
|
[1] |
HOSE-ASSY
|
|
| 17. |
F020106
|
[1] |
HOSE-ASSY
|
|
| 18. |
F020108
|
[2] |
HOSE-ASSY
|
|
| |
F020092
|
[2] |
HOSE-ASSY
|
|
| 19. |
F020110
|
[3] |
HOSE-ASSY
|
|
| 20. |
F026457
|
[2] |
HOSE-ASSY
|
|
| 22. |
F005162
|
[2] |
SEAL RING
|
|
| 23. |
F010192
|
[2] |
Plug
|
|
| 24. |
F025467
|
[1] |
HOSE-ASSY
|
|
| 25. |
F025468
|
[1] |
HOSE-ASSY
|
|
| 26. |
F026362
|
[1] |
HOSE-ASSY
|
|
| 27. |
F020136
|
[1] |
HOSE-ASSY
|
|
| 28. |
F029268
|
[1] |
HOSE-ASSY
|
|
| 29. |
F024309
|
[1] |
HOSE-ASSY
|
|
| 30. |
F012592
|
[3] |
ELBOW NIPPLE
|
|
| 31. |
F010072
|
[4] |
ELBOW NIPPLE
|
|
| 32. |
F011057
|
[4] |
ELBOW NIPPLE
|
|
| 33. |
F012533
|
[2] |
ELBOW NIPPLE
|
|
| 34. |
F005049
|
[5] |
ELBOW NIPPLE
|
|
| 35. |
F020756
|
[4] |
ELBOW NIPPLE
|
|
| 36. |
F005055
|
[5] |
NIPPLE
|
|
| 37. |
F026363
|
[2] |
REPLACED
|
|
| 40. |
F004570
|
[2] |
O-Ring
|
|
| 41. |
F004569
|
[1] |
O-Ring
|
|
| 43. |
F005170
|
[9] |
SEAL RING
|
|
| 44. |
F003385
|
[1] |
Plug
|
|
| 45. |
F013167
|
[2] |
NIPPLE
|
|
| 46. |
F024402
|
[2] |
ELBOW NIPPLE
|
|
| 47. |
F005060
|
[11] |
NIPPLE
|
|
| 48. |
F008223
|
[2] |
COPPER WASHER
|
|
| 49. |
F012789
|
[2] |
BANJO SCREW
|
|
| 50. |
F025428
|
[1] |
CONNECTING BLOCK
|
|
| 51. |
F011353
|
[8] |
Belt
|
|
| 52. |
F005168
|
[8] |
SEAL RING
|
|
| 53. |
F012529
|
[4] |
BANJO CONNECTION
|
|
| 54. |
F005557
|
[4] |
BANJO SCREW
|
|
| 55. |
F005059
|
[4] |
NIPPLE
|
|
| 56. |
F019945
|
[3] |
NIPPLE
|
|
| 57. |
F019944
|
[2] |
NIPPLE
|
|
| 58. |
F011485
|
[2] |
NIPPLE
|
|
| 59. |
F004357
|
[1] |
NIPPLE
|
|
| 61. |
F005052
|
[3] |
NIPPLE
|
|
| 62. |
F005167
|
[10] |
SEAL RING
|
|
| 63. |
F005063
|
[10] |
NIPPLE
|
|
| 64. |
F010951
|
[1] |
HOSE CONNECTION
|
|
| 65. |
F019105
|
[1] |
ELBOW NIPPLE
|
|
| 66. |
F005075
|
[2] |
T-CONNECTION
|
|
| 67. |
F005054
|
[1] |
NIPPLE
|
|
| 68. |
F017320
|
[3] |
MEASURING NIPPLE
|
|
| 69. |
F005164
|
[6] |
SEAL RING
|
|
| 70. |
F013136
|
[4] |
NIPPLE
|
|
| 71. |
F012787
|
[1] |
T-PIPE
|
|
| 72. |
F005469
|
[1] |
Check Valve
|
|
| 73. |
F019954
|
[1] |
Check Valve
|
|
| |
F005052
|
[1] |
NIPPLE
|
|
| 74. |
F011246
|
[3] |
Plug
|
|
| 75. |
F012628
|
[1] |
Pump
|
|
| 76. |
F021332
|
[1] |
REFILLING COVER
|
|
| 77. |
F005064
|
[2] |
NIPPLE
|
|
| 78. |
F023926
|
[1] |
PROTECTION PLATE
|
|
| 79. |
F003541
|
[12] |
Screw
|
|
| 80. |
F002805
|
[12] |
Lock Washer
|
|
| 81. |
F027634
|
[1] |
Bracket
|
|
| 82. |
F019960
|
[1] |
THROTTLE
|
|
| 83. |
F032113
|
[2] |
HOSE PROTECTION
|
|
| 84. |
F005334
|
[5] |
Binder
|
|
| 85. |
F007821
|
[1] |
HOSE CONNECTION
|
|
| 86. |
F025535
|
[1] |
CONNECTING BLOCK
|
|
| 87. |
F003421
|
[2] |
Screw
|
|
| 88. |
F003588
|
[2] |
Lock Nut
|
|
| 89. |
F019826
|
[1] |
BLOCK
|
|
| 90. |
F013609
|
[1] |
Screw
|
|
| 91. |
F003590
|
[1] |
Lock Nut
|
|
| 92. |
F016308
|
[2] |
BANJO SCREW
|
|
| 93. |
F008141
|
[2] |
COPPER WASHER
|
|
