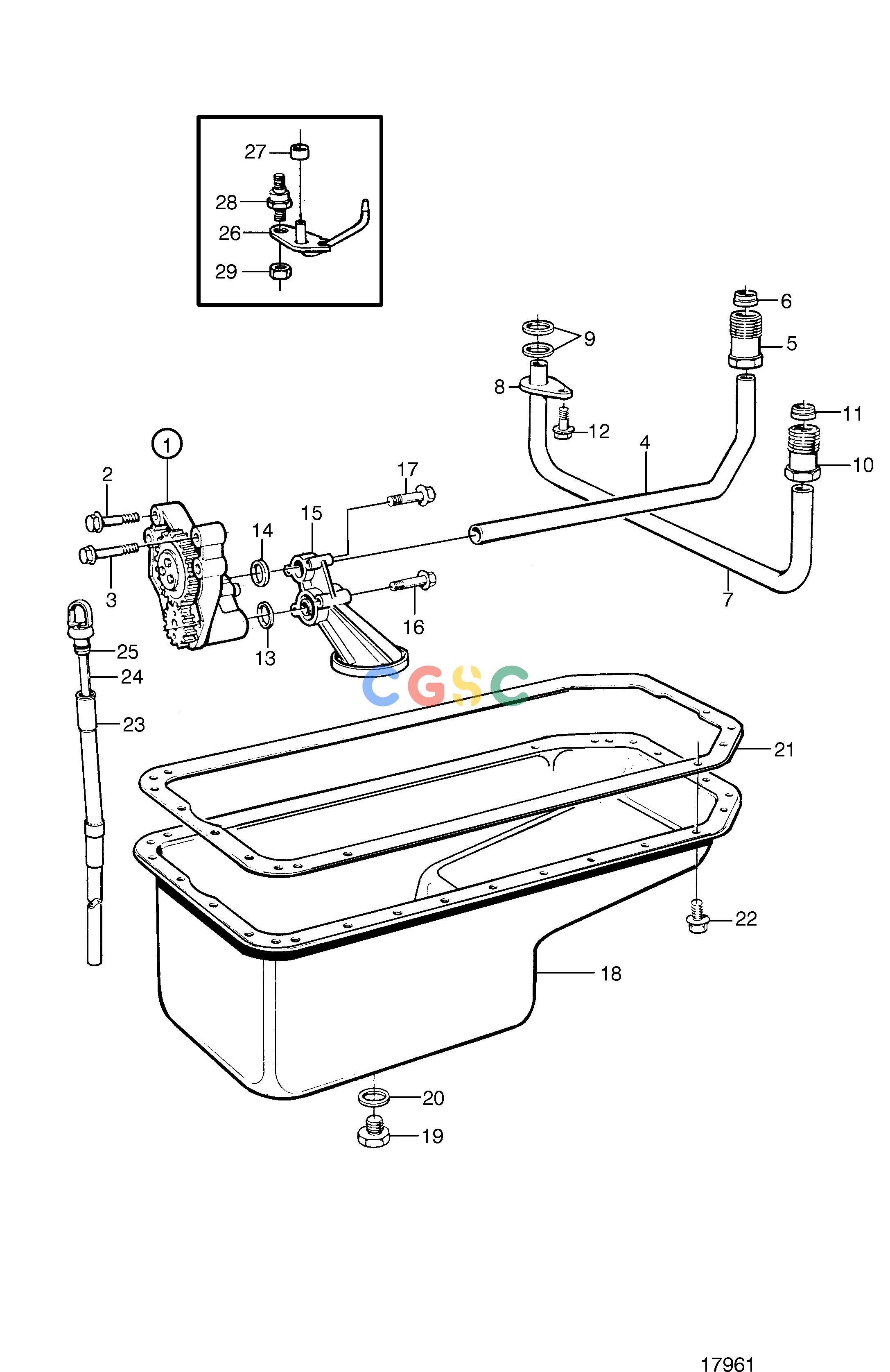

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-ALubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
736 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864760
|
[1] |
Oil pump
|
|
| 1. |
|
|
|
|
| 2. |
471513
|
[4] |
Flange nut
|
M10x70mm
|
| 3. |
471734
|
[2] |
Flange screw
|
M8x70mm
|
| 4. |
477948
|
[1] |
Oil pressure pipe
|
|
| 5. |
471595
|
[1] |
Pressure pipe connec
|
|
| 6. |
980786
|
[1] |
Ferrule
|
|
| 7. |
420996
|
[1] |
Oil pressure pipe, piston cooling
|
|
| 8. |
471746
|
[1] |
Clamp
|
|
| 9. |
471956
|
[2] |
Gasket
|
|
| 10. |
471588
|
[1] |
Oil feed pipe
|
|
| 11. |
980786
|
[1] |
Ferrule
|
|
| 12. |
946440
|
[1] |
Flange screw
|
|
| 13. |
949659
|
[1] |
O-ring
|
|
| 14. |
471956
|
[1] |
Gasket
|
|
| 15. |
420725
|
[1] |
Oil strainer
|
|
| 16. |
968892
|
[2] |
Flange screw
|
|
| 17. |
969225
|
[2] |
Flange screw
|
|
| 18. |
421026
|
[1] |
Oil sump
|
|
| 19. |
192538
|
[1] |
Magnetic plug
|
|
| 20. |
18677
|
[1] |
Gasket
|
|
| 21. |
11030779
|
[1] |
Gasket
|
(865342)
|
| 22. |
946440
|
[36] |
Flange screw
|
|
| 23. |
848700
|
[1] |
Pipe
|
Oil dipstick mounted on right side.
|
| 23. |
862055
|
[1] |
Pipe
|
Oil dipstick mounted on left side.
|
| 24. |
863797
|
[1] |
Oil dipstick
|
Oil dipstick mounted on right side.
|
| 24. |
862197
|
[1] |
Oil dipstick
|
Oil dipstick mounted on left side.
|
| 25. |
925054
|
[1] |
O-ring
|
For 863797
|
| 25. |
955984
|
[1] |
O-ring
|
For 862197
|
| 26. |
420628
|
[6] |
Piston cooling jet
|
|
| 27. |
466874
|
[6] |
Sealing ring
|
|
| 28. |
471596
|
[6] |
Stud
|
|
| 29. |
948570
|
[6] |
Lock nut
|
|
