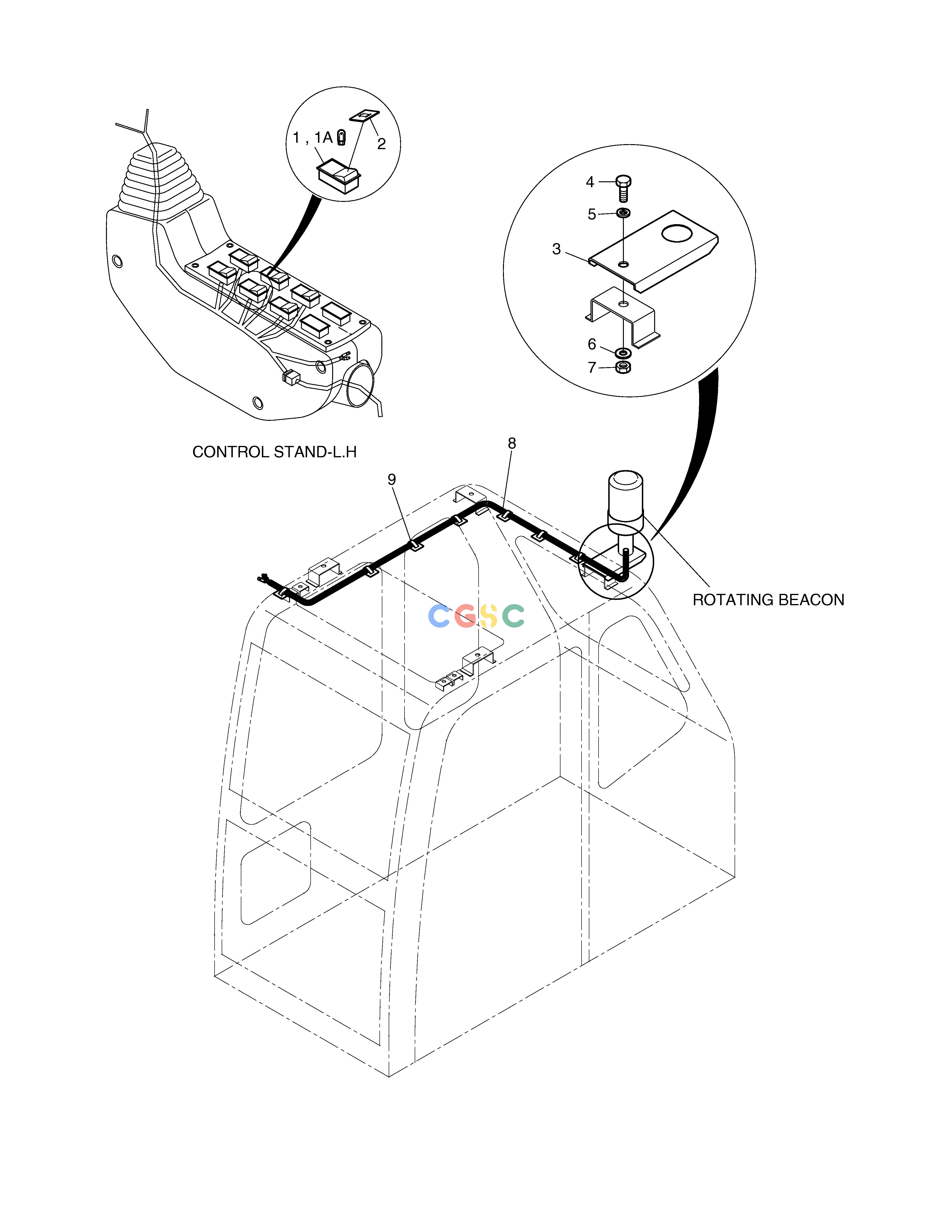

斗山零件查询ROTATING BEACON SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2534-1166
|
[-] |
ROTATING BEACON ASS'Y
|
|
| -. |
2534-1166A
|
[-] |
ROTATING BEACON ASS'Y
|
|
| 1. |
2549-9098
|
[1] |
SWITCH;ROCKER
|
|
| 1A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 2. |
2190-2036D10
|
[1] |
INSERT;ROTATING BEACON
|
|
| 3. |
2197-1080
|
[1] |
BRACKET
|
2197-2485
|
| 3. |
2197-2485
|
[1] |
BRACKET;ROTATING BEACON
|
|
| 4. |
S0505053
|
[1] |
BOLT
|
|
| 5. |
S5102303
|
[1] |
. WASHER
|
|
| 6. |
S5010313
|
[1] |
WASHER
|
|
| 7. |
S4012333
|
[1] |
NUT
|
|
| 8. |
2530-1612
|
[1] |
HARNESS;ROTATING BEACON
|
|
| 9. |
2128-1209D1
|
[7] |
CLAMP;METAL
|
|
