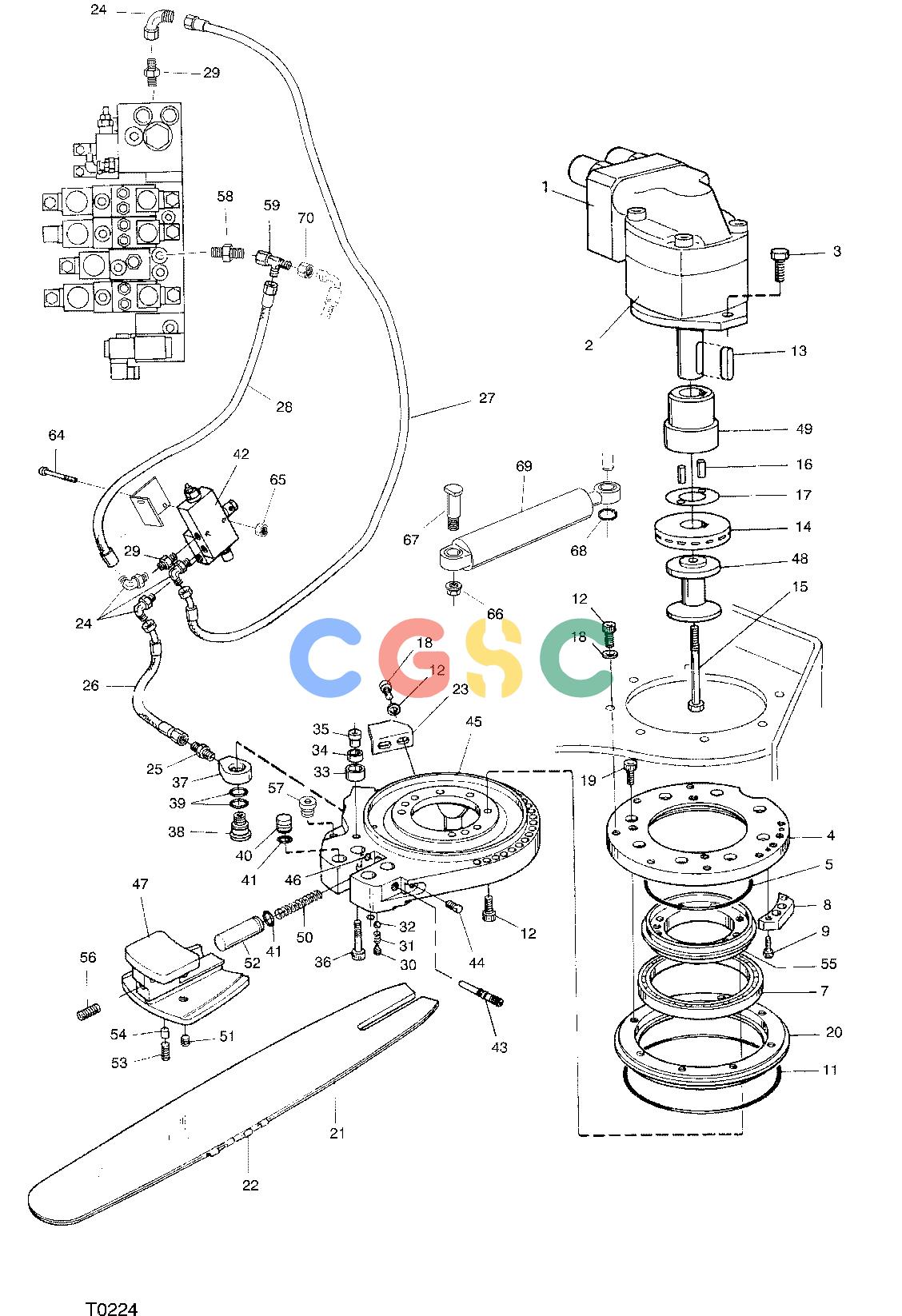

约翰迪尔零件查询746B ATT - ATTACHMENTS ENGINE CHAIN TIGHTENER F042684 11 78 T0224 [T0224]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F039550
|
[1] |
AUTOM. CHAIN TIGHTENER
|
|
| 1. |
F025428
|
[1] |
CONNECTING BLOCK
|
|
| 2. |
F005616
|
[1] |
Hydraulic Motor
|
|
| 3. |
F003541
|
[2] |
Screw
|
|
| 4. |
F009838
|
[1] |
Holder
|
|
| 5. |
F005642
|
[1] |
O-Ring
|
|
| 7. |
F005592
|
[1] |
Ball Bearing
|
|
| 8. |
F014621
|
[1] |
PROTECTION
|
|
| 9. |
F003391
|
[2] |
Screw
|
|
| 11. |
F013915
|
[1] |
O-Ring
|
|
| 12. |
F006411
|
[2] |
Pipe
|
|
| 13. |
F015978
|
[1] |
Wedge
|
|
| 14. |
F023815
|
[1] |
SPROCKET WHEEL
|
|
| 15. |
F003471
|
[15] |
Screw
|
|
| 16. |
F011196
|
[2] |
Pin
|
|
| 17. |
F023817
|
[%] |
Washer
|
|
| 18. |
F003338
|
[9] |
Washer
|
|
| 19. |
F012683
|
[8] |
Screw
|
|
| 20. |
F009842
|
[1] |
BEARING RING
|
|
| 21. |
F002933
|
[1] |
OIL PIPE
|
|
| 22. |
F005519
|
[1] |
Saw Chain
|
|
| 23. |
F009836
|
[2] |
END PIECE
|
|
| 24. |
F022417
|
[1] |
ELBOW NIPPLE
|
|
| 25. |
F005053
|
[1] |
NIPPLE
|
|
| 26. |
F039969
|
[1] |
HOSE-ASSY
|
|
| 27. |
F039967
|
[1] |
HOSE-ASSY
|
|
| 28. |
F039968
|
[1] |
HOSE-ASSY
|
|
| 29. |
F005057
|
[4] |
NIPPLE
|
|
| 30. |
F009848
|
[1] |
Plug
|
|
| 31. |
F013895
|
[1] |
Spring
|
|
| 33. |
F034561
|
[1] |
CIRCLIP
|
|
| 34. |
F037462
|
[1] |
Bushing
|
|
| 35. |
F034562
|
[1] |
Holder
|
|
| 36. |
F010749
|
[1] |
Screw
|
|
| 37. |
F034559
|
[1] |
BANJO
|
|
| 38. |
F034560
|
[1] |
BANJO SCREW
|
|
| 39. |
F017216
|
[2] |
O-Ring
|
|
| 40. |
F034554
|
[4] |
LOCKING PIECE
|
|
| 41. |
F004573
|
[5] |
O-Ring
|
|
| 42. |
F034567
|
[1] |
Kit
|
|
| 43. |
F034556
|
[1] |
NIPPLE
|
|
| 44. |
F034551
|
[1] |
Screw
|
|
| 45. |
F034549
|
[1] |
Bracket
|
|
| 47. |
F034550
|
[1] |
Holder
|
|
| 48. |
F034565
|
[1] |
CHAIN CATCHER
|
|
| 49. |
F034564
|
[1] |
CARRIER
|
|
| 50. |
F034553
|
[1] |
Spring
|
|
| 51. |
F026206
|
[2] |
STOP SCREW
|
|
| 52. |
F034552
|
[1] |
Piston
|
|
| 53. |
F030750
|
[1] |
STOP SCREW
|
|
| 54. |
F034558
|
[1] |
LOCKING PIECE
|
|
| 55. |
F034566
|
[1] |
BEARING RING
|
|
| 56. |
F020022
|
[1] |
STOP SCREW
|
|
| 57. |
F018111
|
[1] |
Plug
|
|
| 58. |
F005055
|
[2] |
NIPPLE
|
|
| 59. |
F023535
|
[1] |
L-CONNECTION
|
|
| 60. |
F011199
|
[2] |
Screw
|
|
| 61. |
F003564
|
[1] |
Nut
|
|
| 62. |
F024428
|
[1] |
STOP SCREW
|
|
| 63. |
F039549
|
[1] |
Plate
|
|
| 64. |
F008751
|
[2] |
Screw
|
|
| 65. |
F003585
|
[1] |
Lock Nut
|
|
| 66. |
F011198
|
[1] |
Lock Nut
|
|
| 67. |
F014614
|
[1] |
Pin
|
|
| 68. |
F003357
|
[1] |
CIRCLIP
|
|
| 69. |
F011197
|
[1] |
Hydraulic Cylinder
|
|
| 70. |
F039981
|
[1] |
Nut
|
|
| 71. |
F038417
|
[2] |
Screw
|
|
