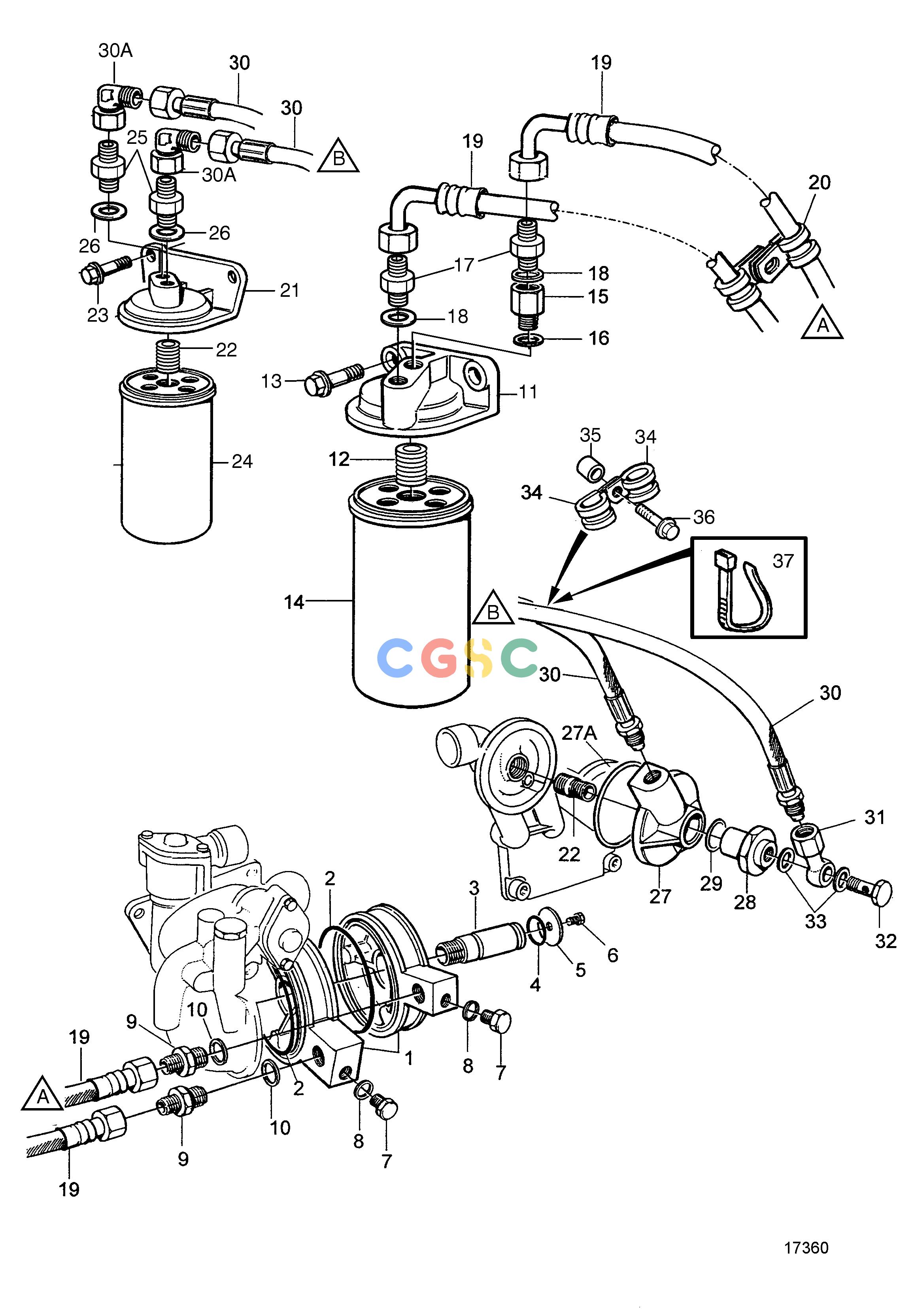

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-ALubricating SystemOil and By-pass Filter. Alternative Mounting on Rear End of EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848502
|
[2] |
Cap
|
|
| 2. |
949647
|
[2] |
O-ring
|
|
| 3. |
848504
|
[1] |
Pipe
|
|
| 4. |
949658
|
[2] |
O-ring
|
|
| 5. |
862692
|
[1] |
Washer
|
|
| 6. |
970945
|
[1] |
Hexagon screw
|
L=20mm
|
| 6. |
970947
|
[1] |
Hexagon screw
|
L=25mm
|
| 7. |
960632
|
[2] |
Plug
|
|
| 8. |
948884
|
[2] |
Gasket
|
|
| 9. |
947554
|
[2] |
Nipple
|
|
| 10. |
948885
|
[2] |
Gasket
|
|
| 11. |
848509
|
[1] |
Housing
|
|
| 12. |
466623
|
[1] |
Nipple
|
|
| 13. |
946329
|
[2] |
Flange screw
|
|
| 14. |
847741
|
[1] |
Oil filter
|
|
| 15. |
863345
|
[1] |
Nipple
|
|
| 16. |
948885
|
[1] |
Gasket
|
|
| 17. |
947554
|
[2] |
Nipple
|
|
| 18. |
948885
|
[2] |
Gasket
|
|
| 19. |
3826775
|
[2] |
Oil hose
|
|
| 20. |
947827
|
[2] |
Clamp
|
|
| 21. |
848511
|
[1] |
Housing
|
|
| 22. |
829160
|
[2] |
Nipple
|
|
| 23. |
965181
|
[2] |
Flange screw
|
|
| 24. |
3827069
|
[1] |
Oil filter, incl gasket
|
|
| 25. |
963948
|
[2] |
Nipple
|
|
| 26. |
948883
|
[2] |
Gasket
|
|
| 27. |
3826429
|
[1] |
Cap
|
|
| 27A. |
976044
|
[1] |
O-ring
|
|
| 28. |
3826430
|
[1] |
Nipple
|
|
| 29. |
944126
|
[1] |
O-ring
|
|
| 30. |
20714372
|
[2] |
Pressure hose
|
3830001
|
| 30A. |
964016
|
[2] |
Elbow nipple
|
|
| 31. |
3826905
|
[1] |
Banjo nipple
|
|
| 32. |
25167
|
[1] |
Hollow screw
|
|
| 33. |
969011
|
[2] |
Gasket
|
|
| 34. |
945081
|
[2] |
Clamp
|
|
| 35. |
807425
|
[1] |
Spacer sleeve
|
|
| 36. |
947760
|
[1] |
Flange screw
|
|
| 37. |
948211
|
[1] |
Cable tie
|
|
