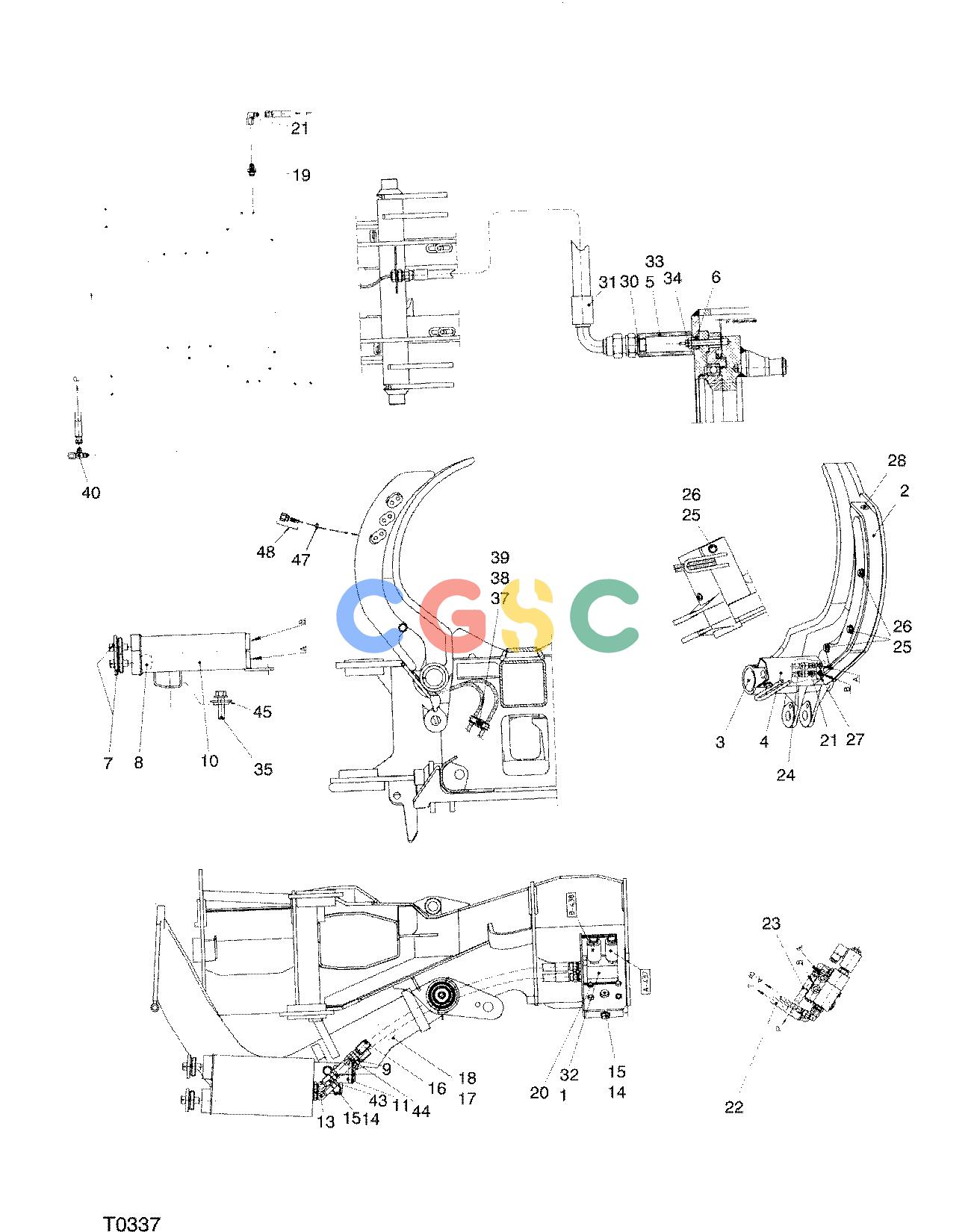

约翰迪尔零件查询746B ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE F042684 11 60 T0337 [T0337]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
839 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F021387
|
[1] |
PAINT MARKING PUMP
|
|
| 2. |
F019175
|
[1] |
Cover
|
|
| 3. |
F019197
|
[1] |
DELIMBING TOOL
|
|
| 4. |
F025634
|
[1] |
PROTECTION
|
|
| 5. |
F009843
|
[1] |
Case
|
|
| 6. |
F009957
|
[2] |
Spacer
|
|
| 7. |
F021332
|
[2] |
REFILLING COVER
|
|
| 8. |
F014081
|
[2] |
Filter
|
|
| 10. |
F022880
|
[1] |
Tank
|
|
| 11. |
F027508
|
[2] |
Filter
|
|
| 13. |
F012533
|
[2] |
ELBOW NIPPLE
|
|
| 14. |
F003542
|
[5] |
Screw
|
|
| 15. |
F003340
|
[5] |
Washer
|
|
| 16. |
F025460
|
[2] |
HOSE-ASSY
|
|
| 16. |
F040872
|
[2] |
HOSE-ASSY
|
|
| 17. |
F024013
|
[1] |
HOSE PROTECTION
|
|
| 18. |
F005334
|
[2] |
Binder
|
|
| 19. |
F005054
|
[1] |
NIPPLE
|
|
| 20. |
F003471
|
[2] |
Screw
|
|
| 21. |
F005044
|
[1] |
ELBOW NIPPLE
|
|
| 22. |
F013349
|
[1] |
HOSE-ASSY
|
|
| 23. |
F027505
|
[1] |
HOSE-ASSY
|
|
| 23. |
F040589
|
[1] |
HOSE-ASSY
|
|
| 24. |
F026443
|
[2] |
HOSE-ASSY
|
|
| 25. |
F003531
|
[4] |
Screw
|
|
| 26. |
F003339
|
[4] |
Washer
|
|
| 27. |
F017238
|
[2] |
THROTTLE SCREW
|
|
| 28. |
F005492
|
[1] |
Screw
|
|
| 30. |
F005166
|
[1] |
SEAL RING
|
|
| 31. |
F028636
|
[1] |
CABLE HARNESS
|
|
| 32. |
F021365
|
[1] |
Cable
|
|
| 33. |
F003478
|
[1] |
Screw
|
|
| 34. |
F018090
|
[2] |
Sensor
|
|
| 35. |
F003502
|
[1] |
Screw
|
|
| 37. |
F003519
|
[1] |
Screw
|
|
| 38. |
F003337
|
[1] |
Washer
|
|
| 39. |
F015145
|
[2] |
Hose Clamp
|
|
| 40. |
F005072
|
[1] |
L-CONNECTION
|
|
| 41. |
F021388
|
[2] |
NIPPLE
|
|
| 43. |
F031745
|
[2] |
NIPPLE
|
|
| 44. |
F025398
|
[2] |
NIPPLE
|
|
| 45. |
F027100
|
[1] |
Washer
|
|
| 46. |
F021469
|
[1] |
CABLE HARNESS
|
|
| 47. |
F026471
|
[6] |
Bushing
|
|
| 48. |
F013448
|
[6] |
Nozzle
|
|
| |
F043306
|
[6] |
Spring
|
|
| |
F021689
|
[6] |
Ball
|
|
