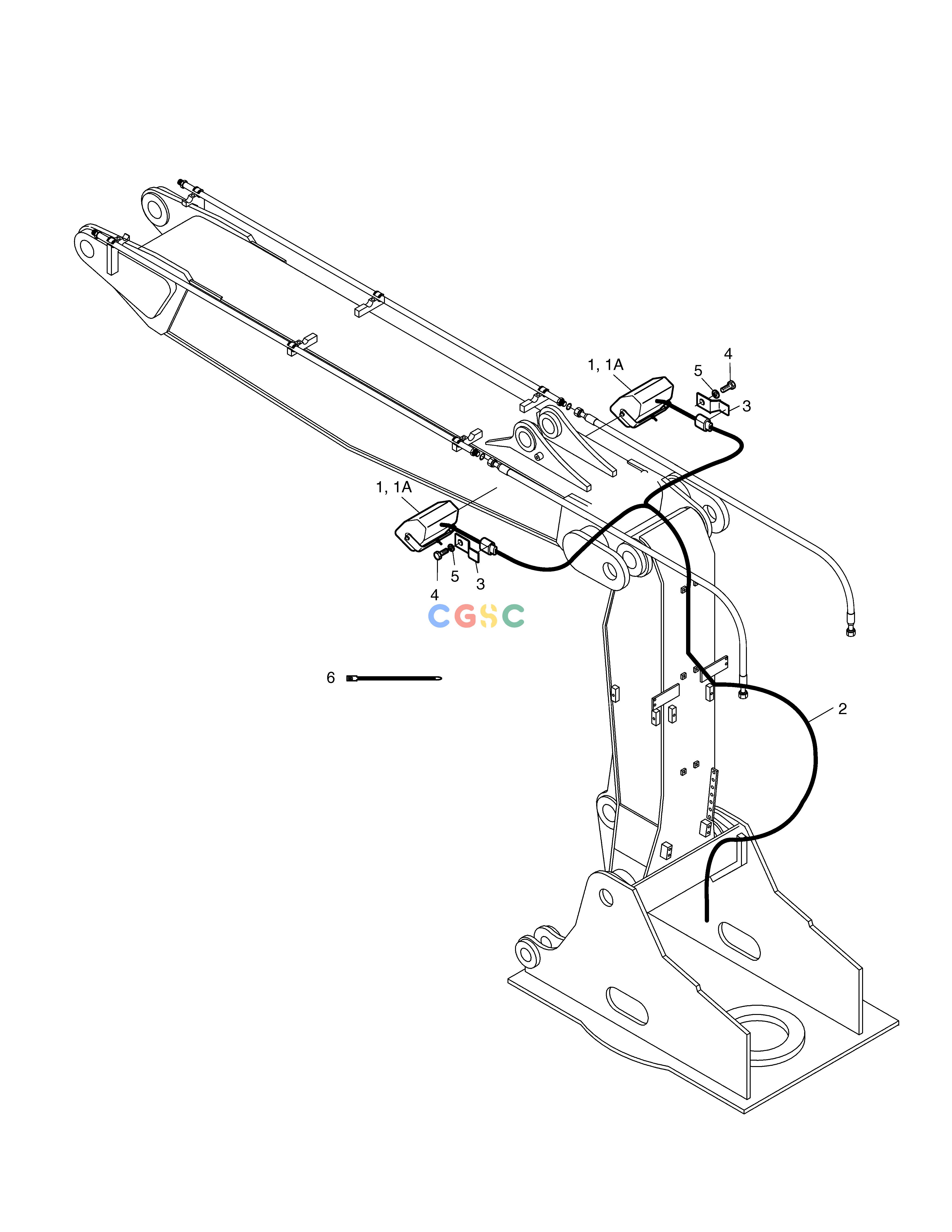

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 534-00042 | [-] | WORKING LAMP ASS'Y | |
| 1. | 2534-1160 | [2] | LAMP;WORKING | |
| 1A. | 2515-1022D1 | [1] | BULB;HALOGEN | |
| 2. | 2530-1609D14 | [1] | HARNESS;WORKING LAMP | |
| 3. | 2197-1660 | [2] | BRACKET | |
| 4. | S0508353 | [2] | BOLT M8X1.25X10 | |
| 5. | S5102503 | [2] | . WASHER | |
| 6. | 2124-1622D1 | [10] | CLIP,BAND |
