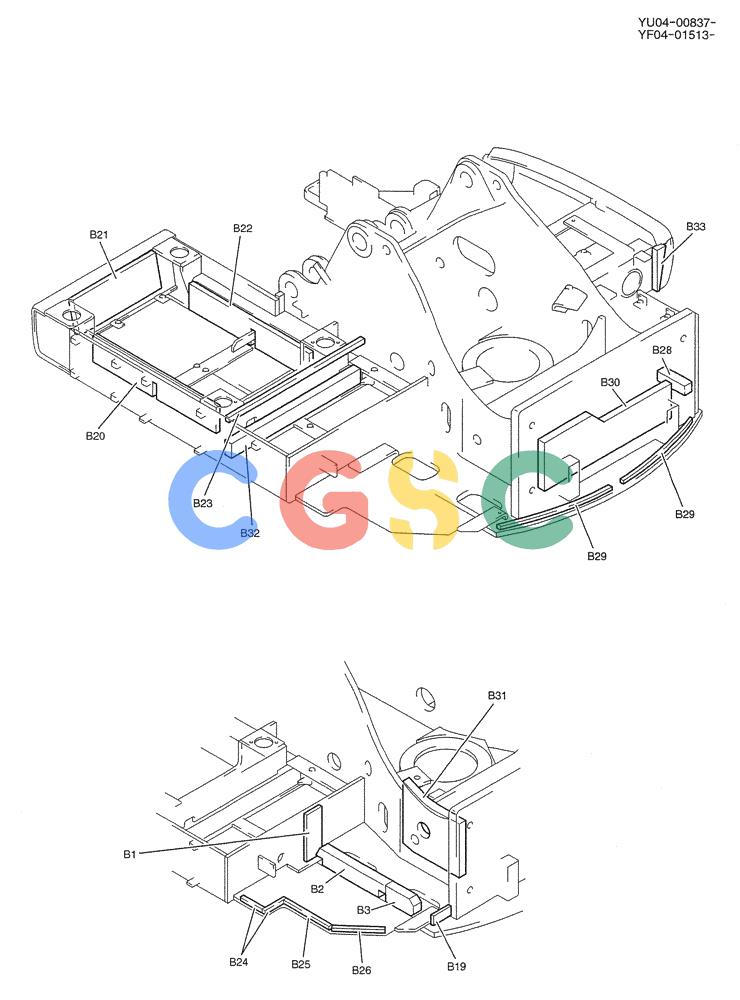

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-001[02]) - FRAME ASSY, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
259 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YF52F00006P1 | [1] | FRAME, UPP | |
| A1-2. | 2414T2784 | [1] | COVER | KOB |
| A1-3. | ZS83C20020 | [3] | SCREW | KOBSET |
| . . | YF52F00004F1 | [1] | FRAME GROUP, UPP (STD) | |
| . . | YF52F00004F3 | [1] | FRAME GROUP, UPP (ELECTRIC MOTOR) | |
| B4. | LQ52F01081P1 | [1] | SEAL | KOB |
| B5. | YN52F01158P1 | [1] | PLATE | KOB |
| B6. | YN52F01159P1 | [1] | PLATE | KOB |
| B7. | 2416Z434 | [1] | PACKING | KOBRUBBER |
| B8. | ZS18C10020 | [8] | SCREW,Hex, M10 x 20mm | KOBCap |
| B9. | ZC16X14800 | [1] | CLIP | KOB |
| B10. | YN52F01100D2 | [31] | SCREW | KOBCAP |
| B12. | ZW13H20000 | [2] | WASHER | KOB |
| B13. | 2420R561D1 | [1] | DIPSTICK | KOB |
| B14. | YN32W01038D4 | [1] | RIGID TUBE | KOBPIPE |
| B15. | YN52F01157P1 | [8] | SEAL | KOB |
| B16. | ZC46X22011 | [1] | CLIP | KOB |
| B17. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| B18. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
