纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-002[02]) - COUNTERWEIGHT ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YF60C00001P1 | [1] | COUNTERWEIGHT | KOBCOUNTER |
| . . | YN60C00062F4 | [1] | COUNTERWEIGHT INSTAL | |
| B3. | 2420T6013D4 | [4] | SHIM | KOB(2.3) |
| B4. | 2420T6013D5 | [4] | SHIM | KOB(3.2) |
| B5. | 2420Z1340D3 | [2] | PLUG | KOB |
| B6. | 2420T7781D5 | [4] | SCREW | KOBCAP |
| . . | YF60C00004F6 | [1] | COUNTERWEIGHT INSTAL (GAIN) | |
| C1. | YF60C00003P1 | [1] | COUNTERWEIGHT | KOBCOUNTER |
| C2. | ZS13C24140 | [1] | SCREW | HITCAP |
| C3. | ZS13C24150 | [2] | SCREW | KOBCAP |
| C4. | HY26Y25054D2 | [3] | WASHER | HIT |
| C5. | LE60C01029P1 | [4] | PLATE | KOB |
| C12. | LC22T00069P1 | [1] | NAMEPLATE | KOBNAME PLATE |

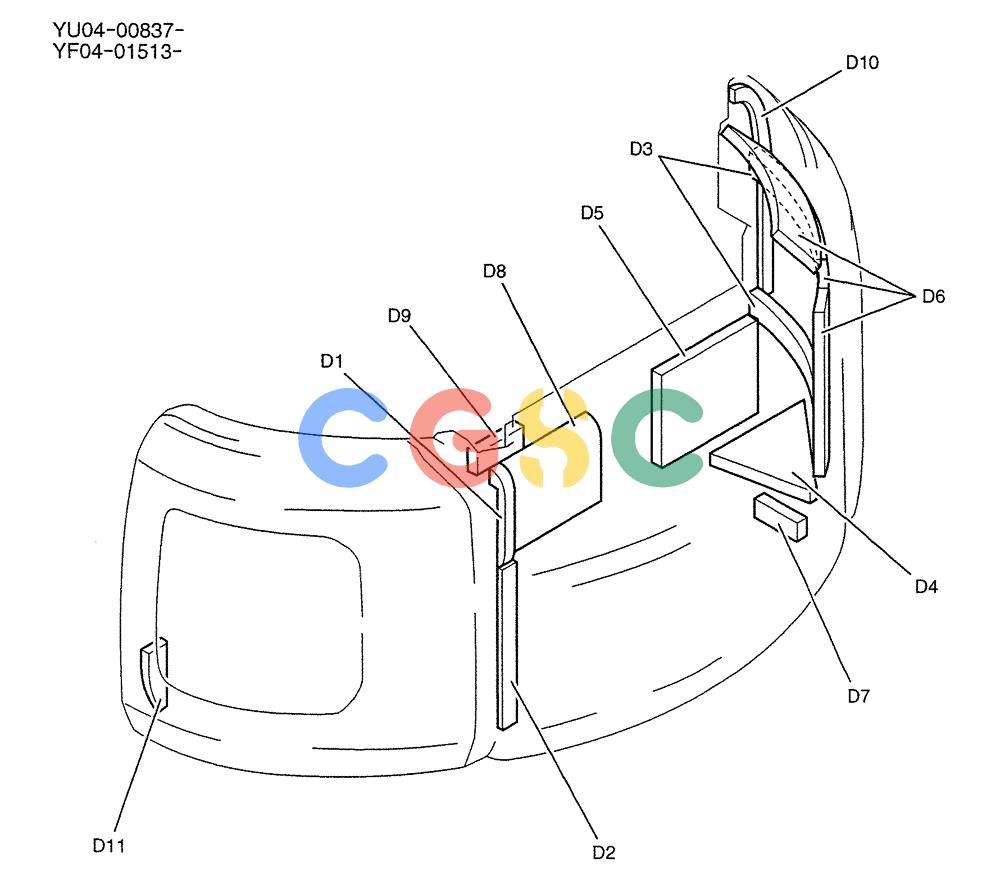

| . . | YF60C00002F1 | [1] | COUNTERWEIGHT GROUP | |
| D2. | YT21C01208D1 | [1] | RUBBER | KOB |
