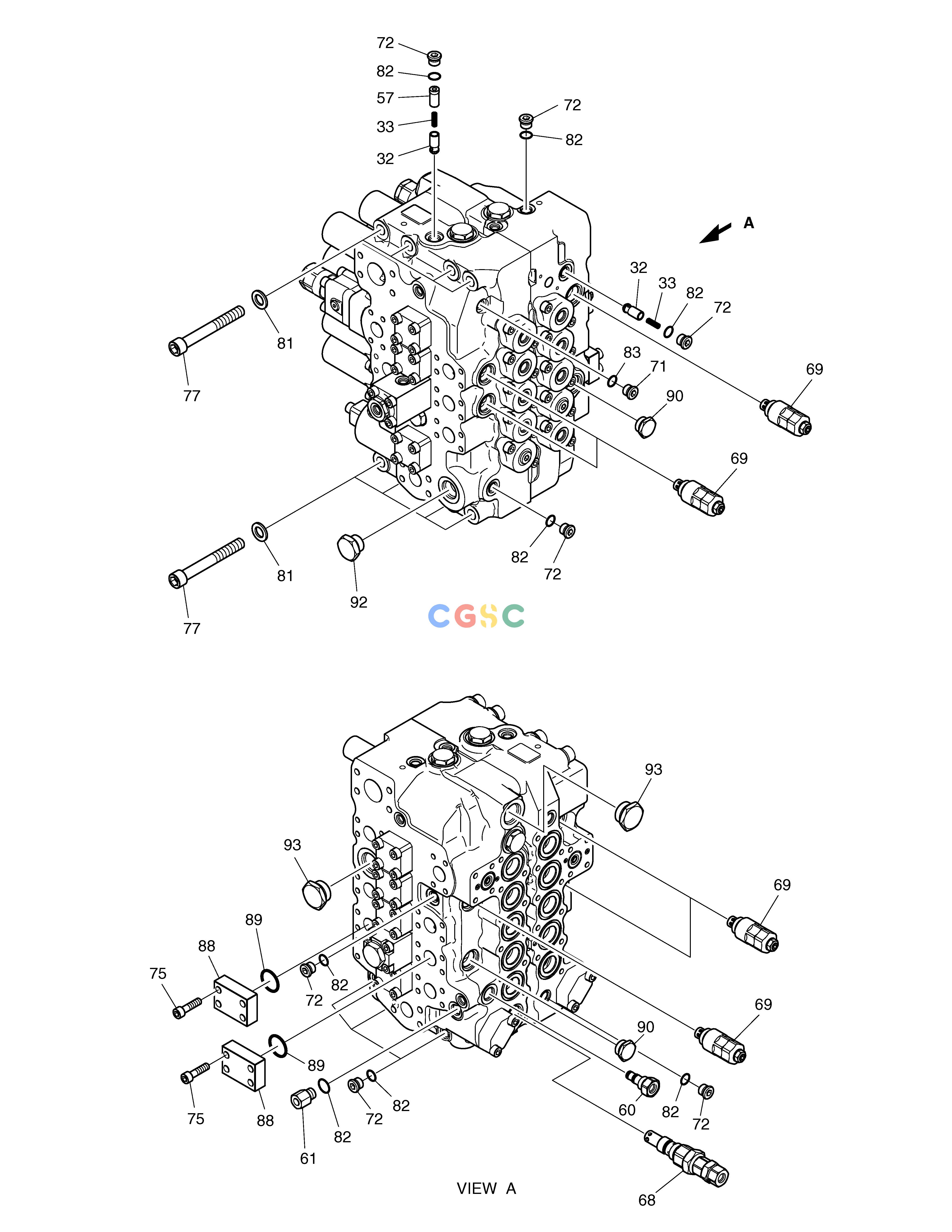

斗山零件查询CONTROL VALVE(1) - KVMG270 SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
420-00295KT
|
[1] |
SEAL KIT;CONTROL VALVE
|
|
| -. |
426-00231
|
[1] |
VALVE;CONTROL
|
410105-00054
|
| -. |
410105-00054
|
[1] |
|
|
| 32. |
426-00168
|
[2] |
POPET
|
|
| 33. |
129-00126
|
[2] |
SPRING
|
|
| 57. |
114-00414
|
[1] |
SPACER
|
|
| 60. |
181-00633
|
[1] |
PLUG ASS'Y
|
|
| 61. |
2181-2337D13
|
[1] |
REDUCER
|
|
| 68. |
420-00257
|
[1] |
VALVE;MAIN RELIEF
|
|
| 69. |
420-00258
|
[6] |
VALVE;OVERLOAD RELIEF
|
|
| 71. |
181-00656
|
[1] |
PLUG
|
|
| 72. |
181-00701
|
[8] |
PLUG ASS'Y
|
|
| 75. |
S2212466
|
[8] |
BOLT
|
|
| 77. |
S2223266
|
[8] |
BOLT;SOCKET M16X130L
|
|
| 81. |
S5010913
|
[8] |
WASHER
|
|
| 82. |
S8000141
|
[9] |
O-RING
|
|
| 83. |
S8000111
|
[1] |
O-RING
|
|
| 88. |
2181-2434
|
[2] |
FLANGE
|
|
| 89. |
2180-1217D109
|
[2] |
O-RING
|
|
| 90. |
181-00644
|
[2] |
PLUG ASS'Y
|
|
| 92. |
181-00647
|
[1] |
PLUG ASSY
|
|
| 93. |
181-00649
|
[2] |
PLUG ASS'Y
|
|
