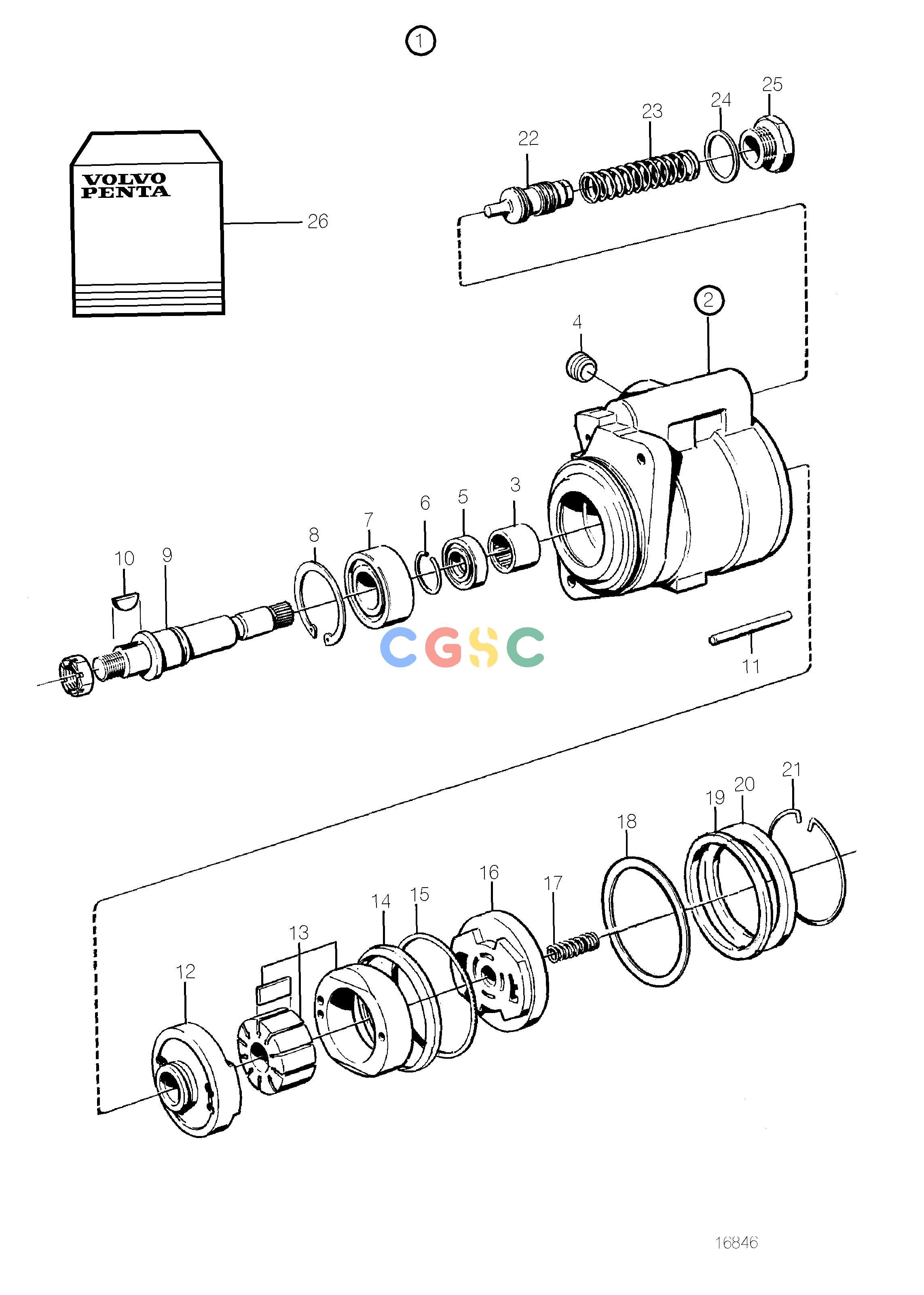

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AMiscellaneous EquipmentHydraulic Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1589925
|
[1] |
Pump
|
|
| 2. |
|
|
|
|
| 3. |
183582
|
[1] |
Needle roller bushin
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
Included in gasket kit.
|
| 6. |
|
|
|
Included in small parts kit.
|
| 7. |
3825779
|
[1] |
Ball bearing
|
|
| 8. |
|
|
|
Included in small parts kit.
|
| 9. |
1695592
|
[1] |
Shaft
|
|
| 10. |
1505357
|
[1] |
Woodruff key
|
Included in small parts kit.
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
Included in gasket kit.
|
| 15. |
|
|
|
Included in gasket kit.
|
| 16. |
|
|
|
|
| 17. |
|
|
|
Included in small parts kit.
|
| 18. |
|
|
|
|
| 19. |
|
|
|
Included in gasket kit.
|
| 20. |
|
|
|
|
| 21. |
|
|
|
Included in small parts kit.
|
| 22. |
|
|
|
|
| 23. |
681428
|
[1] |
Spring
|
|
| 24. |
681430
|
[1] |
Gasket
|
Included in small parts kit
|
| 25. |
681429
|
[1] |
Plug
|
|
| 26. |
271561
|
[1] |
Gasket kit
|
|
| 26. |
276174
|
[1] |
Small parts kit
|
|
