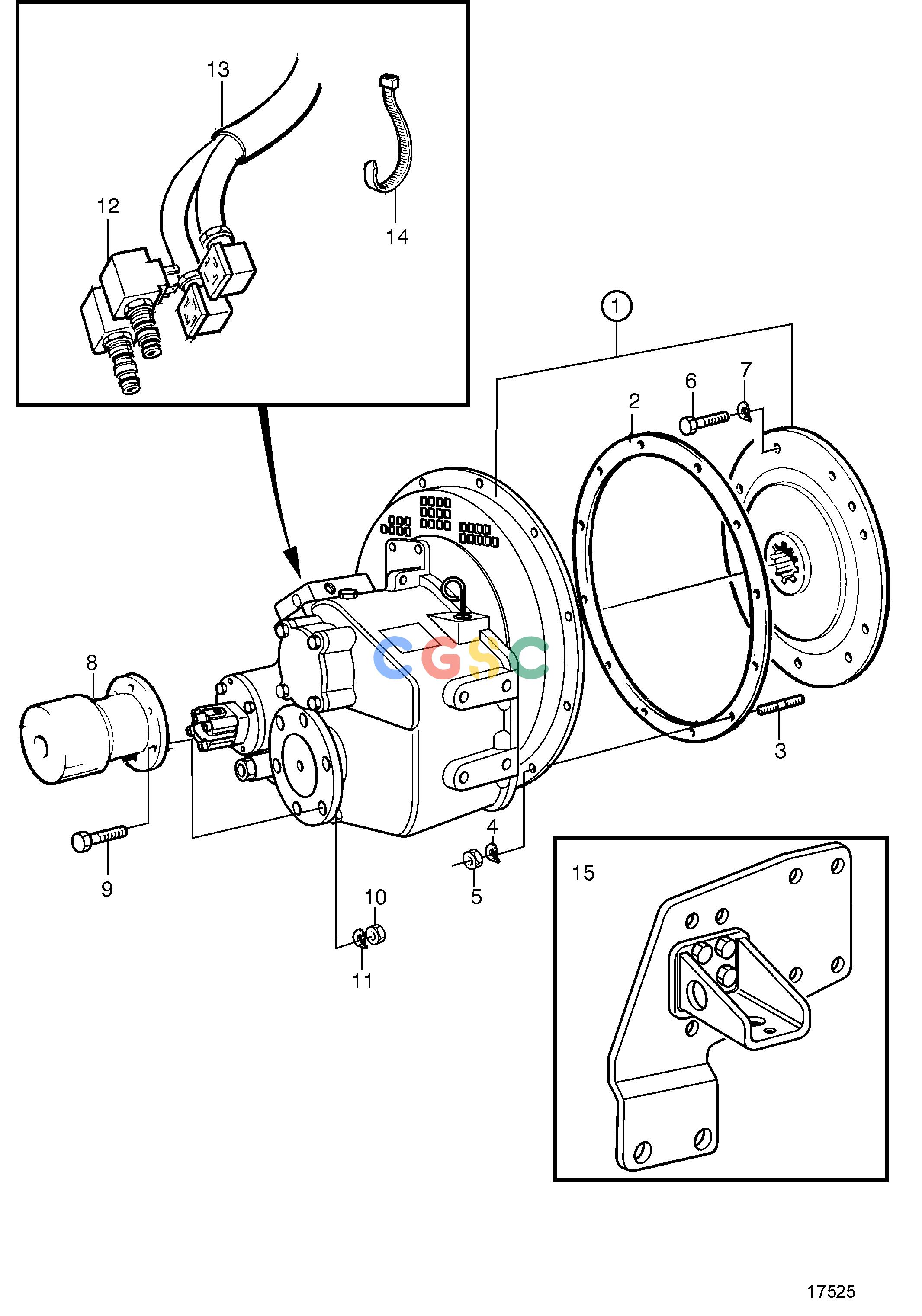

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-ATransmissionsReverse Gear IRM280A2-E/ZF280A-EB, IRM280PL: IRM 280A2-E/ZF280A-EBEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
862623
|
[1] |
Gasket
|
|
| 3. |
953486
|
[12] |
Stud
|
|
| 4. |
942336
|
[12] |
Spring washer
|
|
| 5. |
955827
|
[12] |
Hexagon nut
|
|
| 6. |
940162
|
[8] |
Hexagon screw
|
|
| 7. |
942336
|
[8] |
Spring washer
|
|
| 8. |
842106
|
[1] |
Companion flange
|
|
| 9. |
955739
|
[6] |
Hexagon screw
|
|
| 10. |
950378
|
[6] |
Lock nut
|
|
| 11. |
941912
|
[6] |
Spring washer
|
|
| 12. |
3827257
|
[2] |
Solenoid
|
12V
|
| 12. |
3826414
|
[2] |
Solenoid
|
24V
|
| 13. |
873827
|
[1] |
Cable kit
|
|
| 14. |
948211
|
[2] |
Cable tie
|
|
| 15. |
7740910_240
|
|
Engine suspension
|
|
| 15. |
7740910_242
|
|
Engine suspension
|
|
