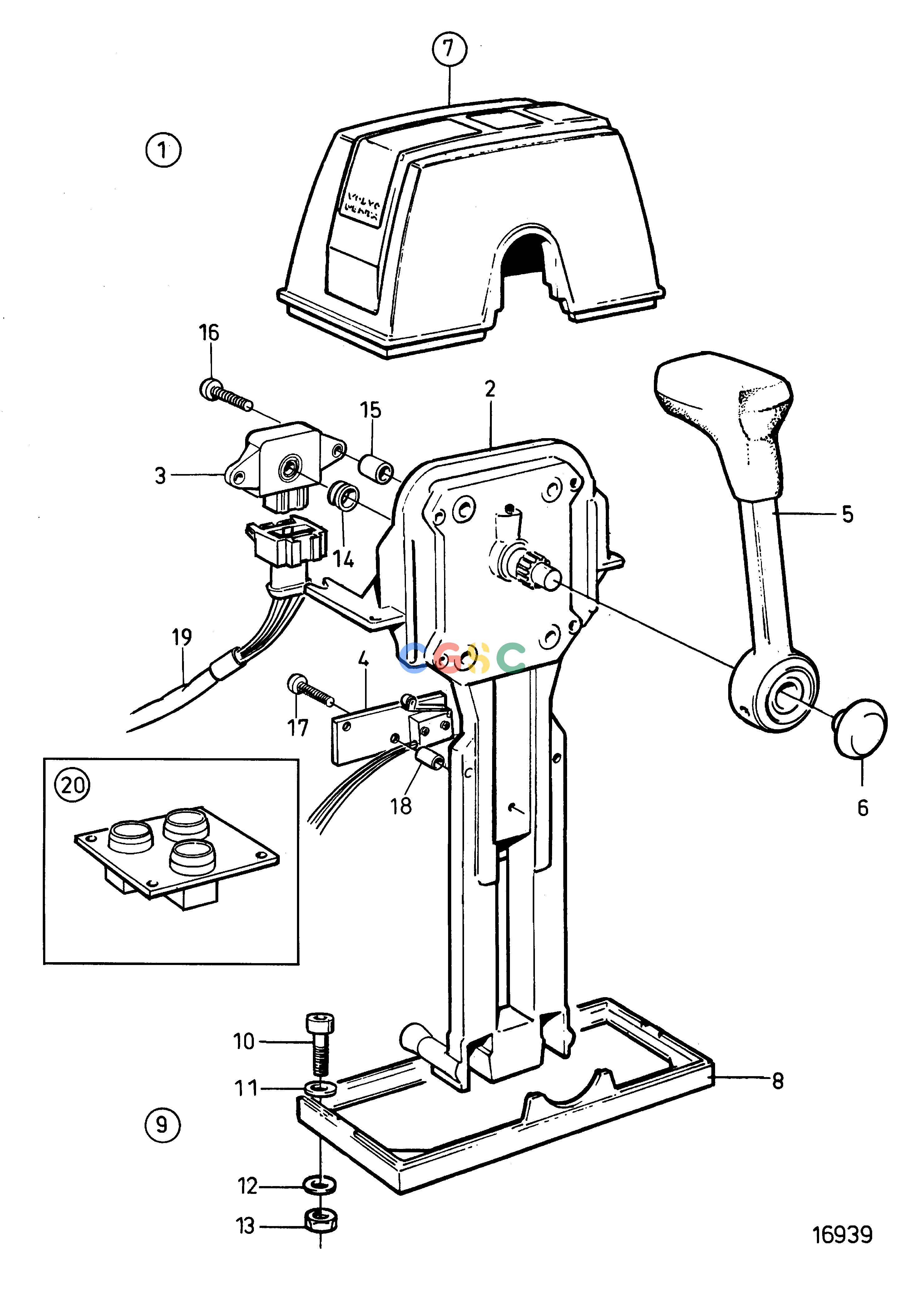

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AControlsControl for top Installation, EDC: Double installationEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140635
|
[2] |
Control
|
Can be upgraded with kit 873867., Repl by 873864
|
| 1. |
873864
|
[2] |
Control
|
|
| 2. |
873862
|
[2] |
Control mechanism
|
(1146031)
|
| 3. |
1336385
|
[2] |
Potentiometer
|
|
| 4. |
873867
|
[2] |
Microswitch
|
|
| 5. |
852347
|
[2] |
Hand lever
|
|
| 6. |
853004
|
[2] |
Push button
|
|
| 7. |
1140636
|
[2] |
Cover
|
|
| 8. |
839479
|
[1] |
Plate
|
|
| 9. |
|
|
|
|
| 10. |
947671
|
[4] |
Hex. socket screw
|
|
| 11. |
940090
|
[4] |
Washer
|
|
| 12. |
960138
|
[4] |
Washer
|
|
| 13. |
955780
|
[4] |
Hexagon nut
|
|
| 14. |
943342
|
[1] |
Sealing ring
|
|
| 15. |
3825525
|
[2] |
Spacer sleeve
|
|
| 16. |
969518
|
[2] |
Six point socket scr
|
|
| 17. |
946177
|
[2] |
Cross recessed screw
|
|
| 18. |
|
|
|
|
| 19. |
873629
|
[1] |
Cable harness
|
|
| 20. |
|
|
|
|
