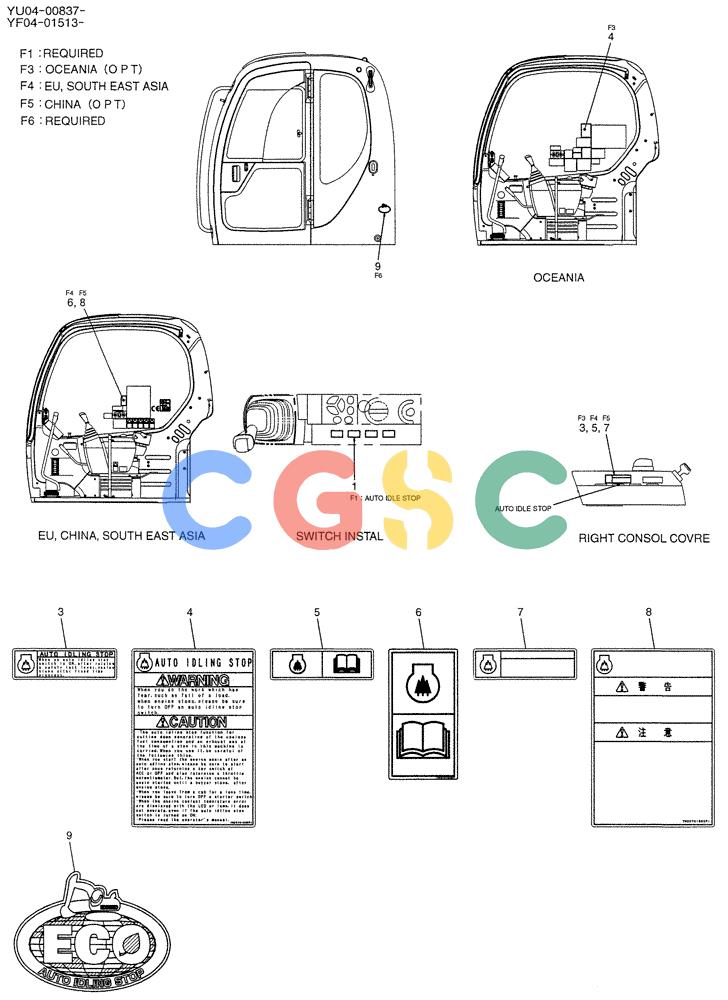

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (06-003) - NAME PLATE INSTAL (CAB), P/N YT22T00081F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
293 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT22T00081F1 | [1] | NAME PLATE INSTAL (REQUIRED) | |
| 1. | YN50S01004D5 | [1] | SWITCH | KOBASSY (AUTO IDLE STOP) |
| . . | YT22T00081F3 | [1] | NAME PLATE INSTAL (OCEANIA) | |
| 3. | YN20T01694P1 | [1] | LABEL (AUTO IDLE STOP: When an auto idling stop switch is ON..) | |
| 4. | YN20T01695P1 | [1] | LABEL | KOB(AUTO IDLE STOP: WARNING: When you do the work, which has fear... CAUTION: The auto idling stop function for cutting down the ...) |
| . . | YT22T00081F4 | [1] | NAME PLATE INSTAL (EU, SOUTH EAST ASIA) | |
| 5. | YN20T01696P1 | [1] | DECAL | KOBLABEL |
| 6. | YN20T01685P1 | [1] | LABEL | KOB |
| . . | YT22T00081F5 | [1] | NAME PLATE INSTAL (CHINA) | |
| 7. | YN20T01697P1 | [1] | LABEL | |
| 8. | YN20T01698P1 | [1] | LABEL | |
| . . | YT22T00081F6 | [1] | NAME PLATE INSTAL (REQUIRED) | |
| 9. | YN20T01699P1 | [1] | LABEL | KOB |
