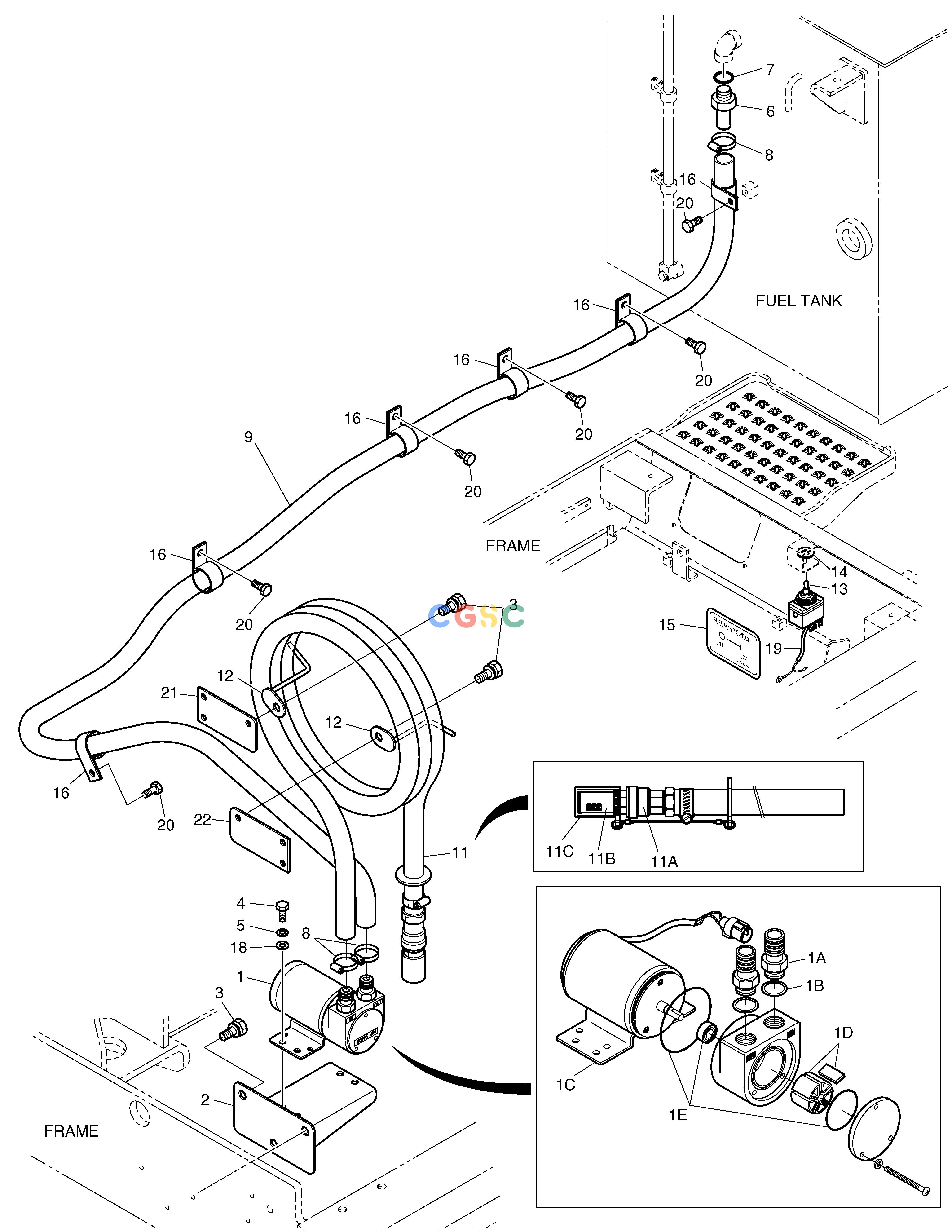

斗山零件查询FUEL FILLER PUMP ASS'Y SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
133 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00339
|
[-] |
FUEL FILLER PUMP ASS'Y
|
|
| 1. |
401-00238
|
[1] |
PUMP;FUEL TRANSFER
|
|
| 11. |
185-00167D3
|
[1] |
HOSE
|
|
| 11A. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 11B. |
2471-1152
|
[1] |
. STRAINER
|
|
| 11C. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 12. |
195-01630
|
[2] |
BRACKET
|
|
| 13. |
2549-9096
|
[1] |
SWITCH;TOGGLE
|
|
| 14. |
2114-1683
|
[1] |
WASHER;TOGGLE SWITCH
|
|
| 15. |
190-00519
|
[1] |
PLATE;NAME
|
|
| 16. |
124-00208D5
|
[4] |
CLIP
|
|
| 16. |
124-00208D5
|
[6] |
CLIP
|
|
| 18. |
S5010513
|
[4] |
WASHER
|
|
| 19. |
530-00214
|
[1] |
HARNESS;TOGGLE SWITCH
|
|
| 1A. |
2181-2755B
|
[2] |
. ADAPTER
|
|
| 1B. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 1C. |
523-00012
|
[1] |
. MOTOR
|
|
| 1D. |
407-00001
|
[1] |
. VANE KIT
|
|
| 1E. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 2. |
195-01628
|
[1] |
BRACKET
|
|
| 20. |
120-00276
|
[2] |
BOLT M8X1.25X12
|
|
| 20. |
120-00276
|
[6] |
BOLT M8X1.25X12
|
|
| 21. |
195-02179
|
[1] |
BRACKET
|
|
| 22. |
195-02180A
|
[1] |
BRACKET
|
|
| 3. |
2120-2196D10
|
[9] |
BOLT;SET M12X1.75X25
|
|
| 4. |
S0508853
|
[4] |
. BOLT
|
|
| 5. |
S5102503
|
[4] |
. WASHER
|
|
| 6. |
2181-2104D6
|
[1] |
ADAPTER
|
|
| 7. |
S8000181
|
[1] |
O-RING
|
|
| 8. |
S8470032
|
[3] |
CLAMP
|
|
| 9. |
2185-1247D148
|
[1] |
HOSE
|
|
