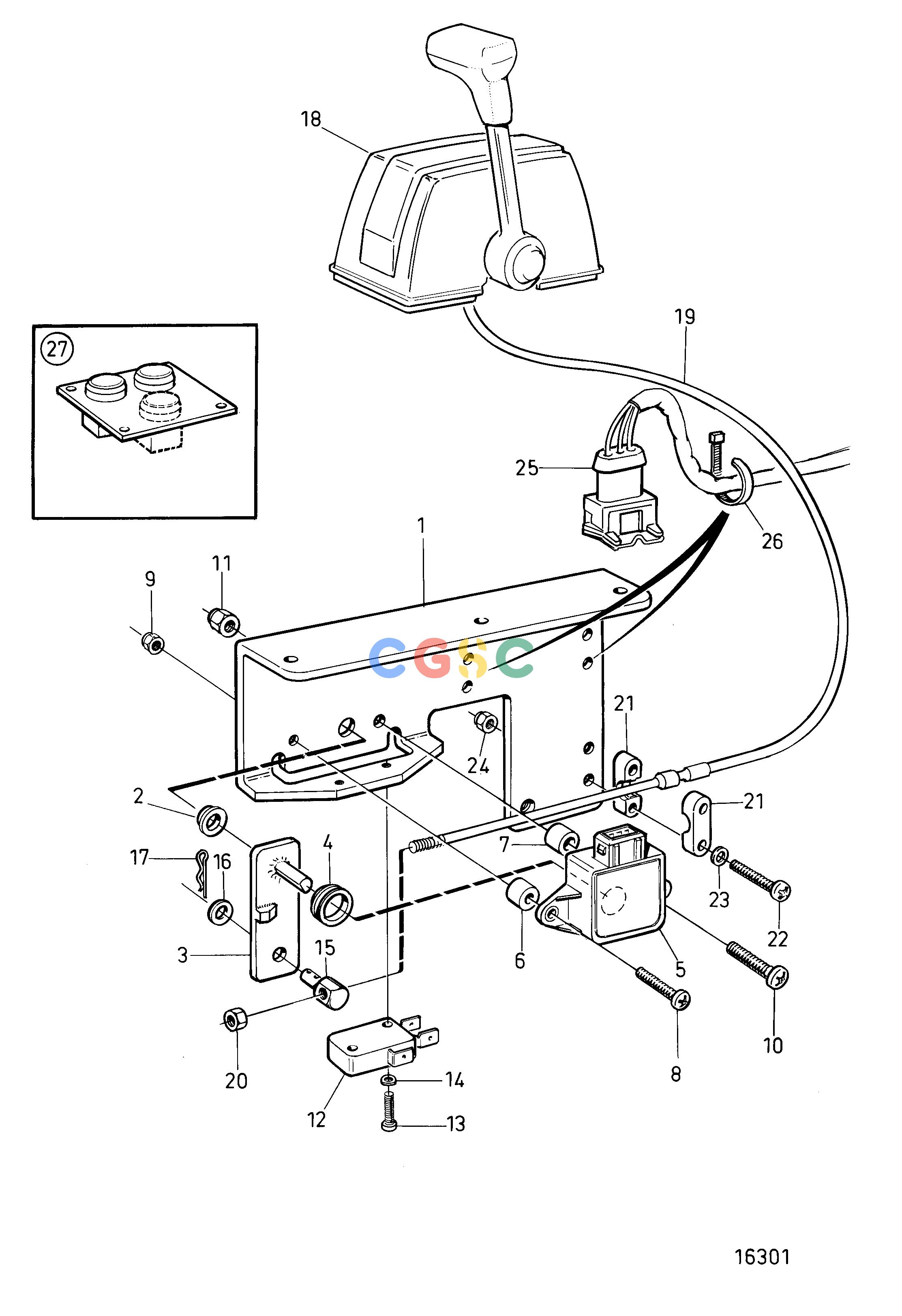

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AControlsEngine Speed Control, EDCEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3825618
|
[1] |
Bushing
|
|
| 3. |
3825366
|
[1] |
Intermediate lever
|
|
| 4. |
943342
|
[1] |
Sealing ring
|
|
| 5. |
1336385
|
[1] |
Potentiometer
|
|
| 6. |
3825525
|
[1] |
Spacer sleeve
|
|
| 7. |
|
|
|
|
| 8. |
969518
|
[1] |
Six point socket scr
|
M4x25
|
| 9. |
946577
|
[1] |
Lock nut
|
|
| 10. |
956081
|
[1] |
Cross recessed screw
|
M5x25
|
| 11. |
963103
|
[1] |
Lock nut
|
|
| 12. |
850200
|
[1] |
Toggle switch
|
|
| 13. |
956049
|
[2] |
Cross recessed screw
|
|
| 14. |
955890
|
[2] |
Washer
|
|
| 15. |
814082
|
[1] |
Cube
|
|
| 16. |
955892
|
[1] |
Washer
|
|
| 17. |
664822
|
[1] |
Split pin
|
|
| 18. |
7738900_079
|
|
Control
|
|
| 19. |
7738900_082
|
|
Control cable
|
|
| 20. |
|
|
|
|
| 21. |
850361
|
[2] |
Cable attachment
|
|
| 22. |
956081
|
[2] |
Cross recessed screw
|
|
| 23. |
940090
|
[2] |
Washer
|
|
| 24. |
946577
|
[2] |
Lock nut
|
|
| 25. |
873629
|
[1] |
Cable harness
|
|
| 26. |
948211
|
[2] |
Cable tie
|
|
| 27. |
|
|
|
|
