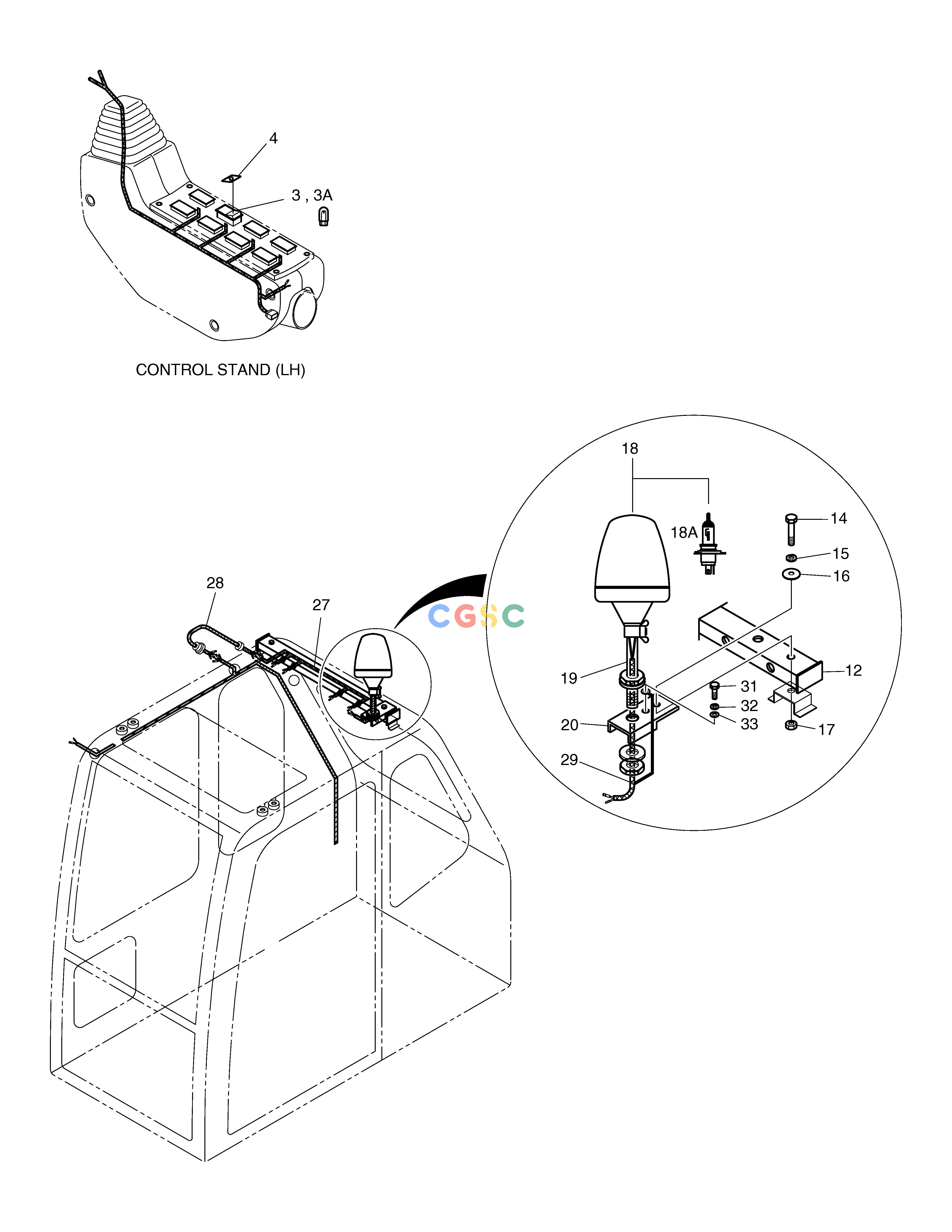

斗山零件查询ROTATING BEACON SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
534-00066F4
|
[-] |
BEACON ASS'Y-OPT.
|
|
| 12. |
195-01694
|
[1] |
SUPPORT;REAR CABIN LAMP
|
|
| 14. |
S0556453
|
[2] |
BOLT
|
|
| 15. |
S5102503
|
[2] |
. WASHER
|
|
| 16. |
2114-1898D8
|
[2] |
WASHER
|
|
| 17. |
S4012533
|
[2] |
NUT
|
|
| 18. |
534-00062
|
[1] |
LAMP;ROTATING BEACON
|
|
| 18A. |
515-00013
|
[1] |
BULB;HALOGEN 24V 70W
|
|
| 19. |
160-00032
|
[1] |
BUSH;MOUNTING
|
|
| 20. |
195-01692
|
[1] |
BRACKET
|
|
| 27. |
530-00237
|
[1] |
HARNESS;REAR CABIN LAMP
|
|
| 28. |
530-00248
|
[1] |
HARNESS;REAR LAMP JOINT
|
|
| 29. |
530-00238A
|
[1] |
HARNESS;BEACON
|
|
| 3. |
2549-9098
|
[1] |
SWITCH;ROCKER
|
|
| 31. |
S0504453
|
[1] |
BOLT
|
|
| 32. |
S5102303
|
[1] |
. WASHER
|
|
| 33. |
S5010313
|
[1] |
WASHER
|
|
| 3A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 4. |
2190-2036D10
|
[1] |
INSERT;ROTATING BEACON
|
|
