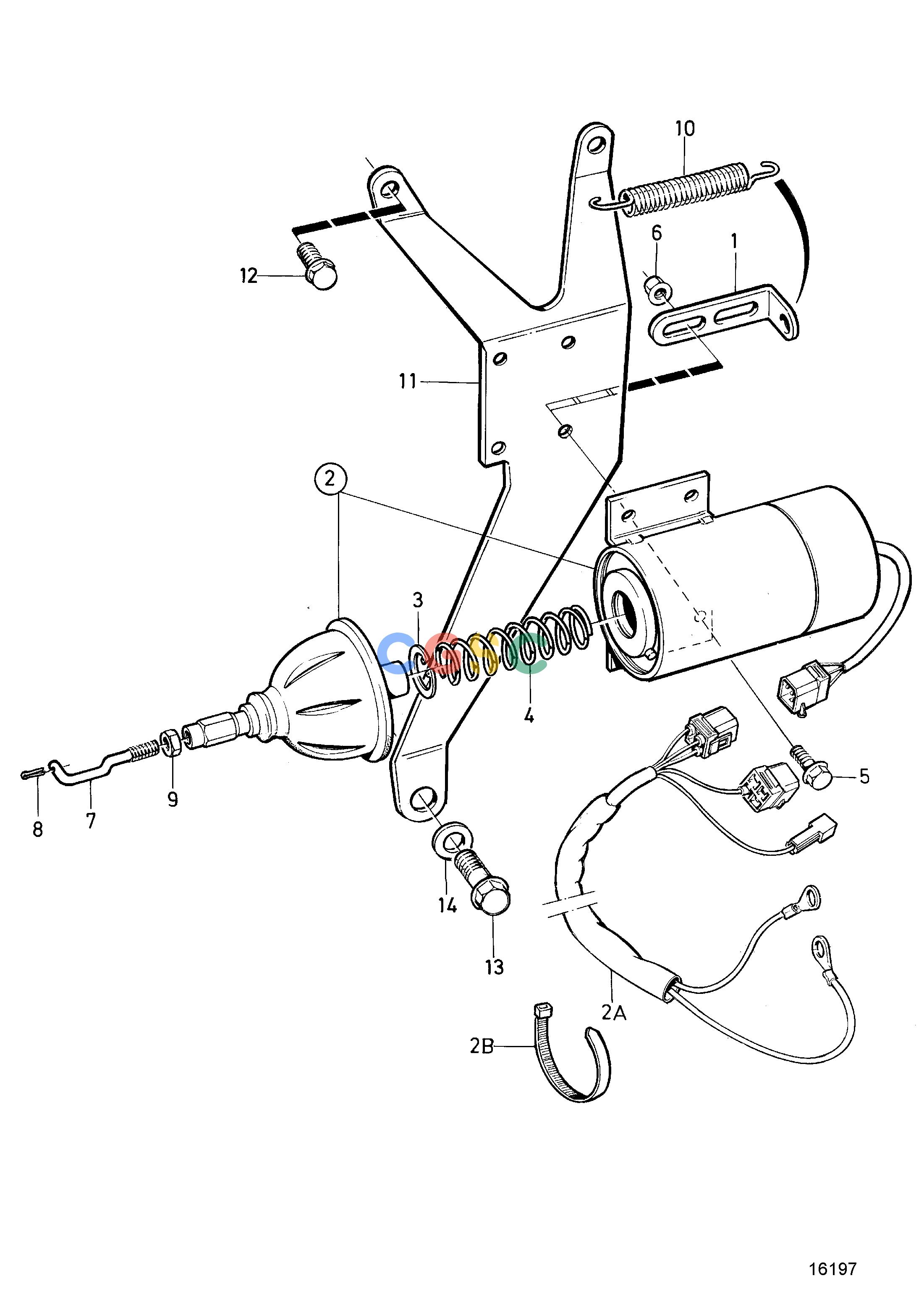

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AControlsStop SolenoidEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
418 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
965556
|
[1] |
Bracket
|
|
| 2. |
876592
|
[1] |
Control solenoid kit
|
12V, earlier prod
|
| 2. |
3826743
|
[1] |
Actuator solenoid
|
12V, late type
|
| 2. |
876593
|
[1] |
Control solenoid kit
|
24V, earlier prod
|
| 2. |
3826742
|
[1] |
Actuator solenoid
|
24V, later prod
|
| 2A. |
873638
|
[1] |
Cable kit
|
Later prod
|
| 2B. |
948211
|
[1] |
Cable tie
|
|
| 3. |
969294
|
[1] |
Retaining ring
|
|
| 4. |
847009
|
[1] |
Return spring
|
(843401)
|
| 5. |
946544
|
[4] |
Flange screw
|
|
| 6. |
945407
|
[4] |
Flange nut
|
|
| 7. |
865040
|
[1] |
Pull rod
|
|
| 8. |
17253
|
[1] |
Split pin
|
|
| 9. |
955782
|
[1] |
Hexagon nut
|
|
| 10. |
819809
|
[1] |
Spring
|
|
| 11. |
865204
|
[1] |
Bracket
|
|
| 12. |
946440
|
[2] |
Flange screw
|
|
| 13. |
946471
|
[1] |
Flange screw
|
See group 23
|
| 14. |
190509
|
[1] |
Washer
|
See group 23
|
