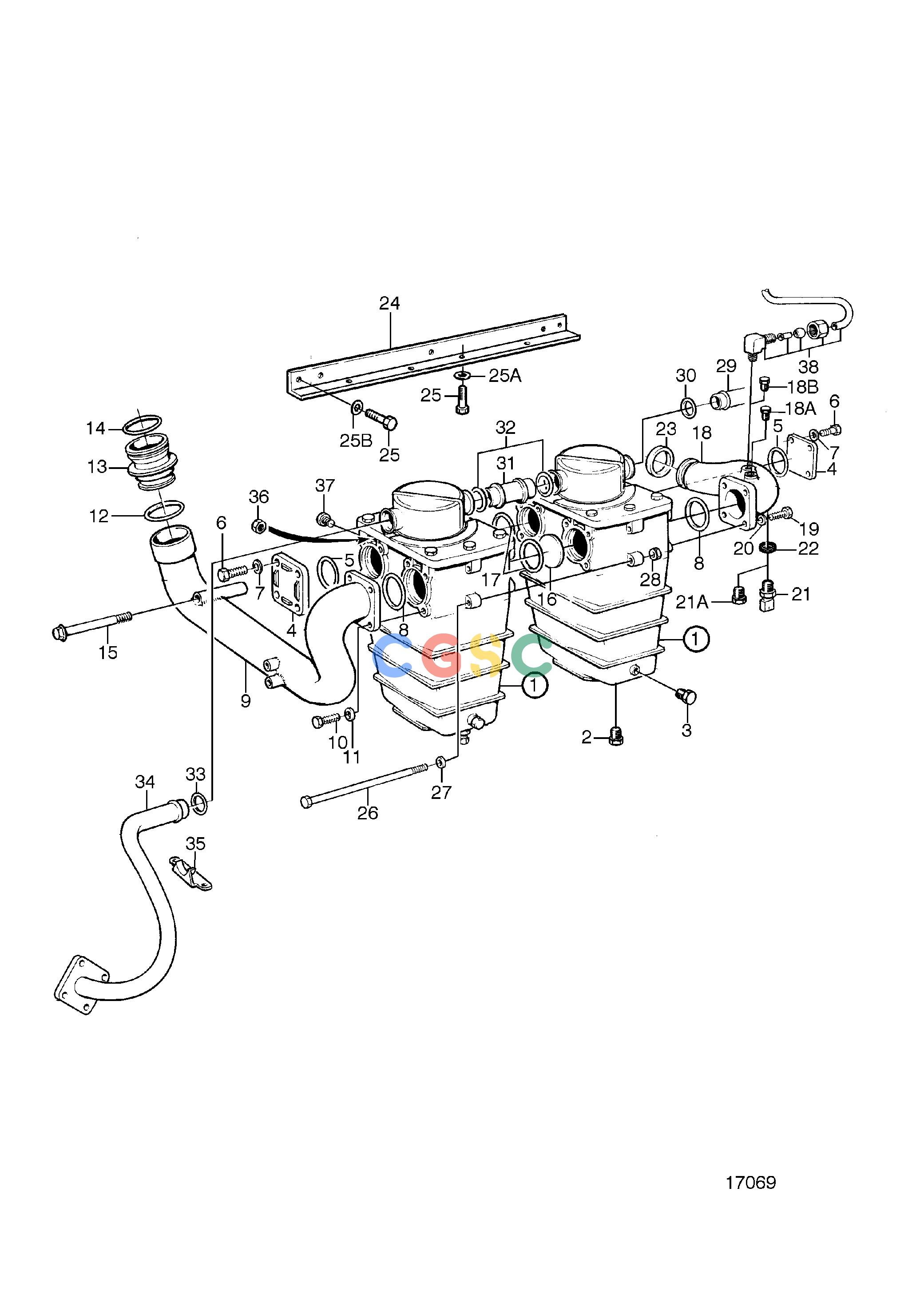

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemAfter Cooler: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
827 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864916
|
[2] |
Heat exchanger, classifiable
|
As a spare part a classified heat exchanger is obtained.
|
| 2. |
3825335
|
[2] |
Plug
|
Replaced by plug 3825335.
|
| 3. |
981749
|
[2] |
Plug
|
(479979)
|
| 4. |
847619
|
[2] |
Cap
|
|
| 5. |
949805
|
[2] |
O-ring
|
|
| 6. |
946440
|
[8] |
Flange screw
|
(944926)
|
| 7. |
941907
|
[8] |
Spring washer
|
|
| 8. |
949805
|
[2] |
O-ring
|
|
| 9. |
866060
|
[1] |
Pipe
|
After cooler-turbo
|
| 10. |
955296
|
[4] |
Hexagon screw
|
|
| 11. |
941907
|
[4] |
Spring washer
|
|
| 12. |
864722
|
[1] |
Sealing ring
|
|
| 13. |
469510
|
[1] |
Intermediate pipe
|
|
| 14. |
866148
|
[1] |
Sealing ring
|
|
| 15. |
946474
|
[1] |
Flange screw
|
Turbo-throttle housing., M12x120mm
|
| 16. |
847618
|
[1] |
Cap
|
|
| 17. |
947663
|
[2] |
O-ring
|
|
| 18. |
847770
|
[1] |
Connecting pipe
|
Replaced by 1pc connecting pipe 3825376 and 1pc plug 479979.
|
| 18. |
3825376
|
[1] |
Connecting pipe
|
After cooler-inlet manifold.
|
| 18A. |
981749
|
[1] |
Plug
|
(479979)
|
| 18B. |
981749
|
[1] |
Plug
|
Alt, (479979)
|
| 19. |
955296
|
[4] |
Hexagon screw
|
|
| 20. |
941907
|
[4] |
Spring washer
|
|
| 21A. |
960632
|
[1] |
Plug
|
|
| 22. |
947624
|
[1] |
Gasket
|
|
| 23. |
469508
|
[1] |
O-ring
|
|
| 24. |
848100
|
[1] |
Bracket
|
|
| 25. |
946173
|
[5] |
Flange screw
|
M8x20mm
|
| 25. |
955296
|
[4] |
Hexagon screw
|
M8x22mm
|
| 25A. |
941907
|
[4] |
Spring washer
|
|
| 25B. |
955894
|
[5] |
Washer
|
|
| 26. |
968303
|
[4] |
Hexagon screw
|
M8x190mm
|
| 27. |
941907
|
[4] |
Spring washer
|
|
| 28. |
946036
|
[4] |
Lock nut
|
|
| 29. |
3827942
|
[1] |
Coolant pipe
|
After cooler-heat exchanger., (864970)
|
| 30. |
466739
|
[1] |
O-ring
|
|
| 31. |
3827941
|
[1] |
Coolant pipe
|
(864969)
|
| 32. |
466739
|
[2] |
O-ring
|
|
| 33. |
466739
|
[1] |
O-ring
|
|
| 34. |
864972
|
[1] |
Coolant pipe
|
|
| 35. |
864918
|
[1] |
Retainer
|
|
| 36. |
946036
|
[4] |
Lock nut
|
|
| 37. |
945444
|
[4] |
Flange screw
|
|
| 38. |
954385
|
[1] |
Elbow nipple
|
|
| 38. |
954356
|
[1] |
Fitting nut
|
|
| 38. |
954364
|
[1] |
Sleeve
|
|
| 38. |
944717
|
[1] |
Support sleeve
|
|
| 38. |
945460
|
[1] |
Tube
|
L=1150mm
|
