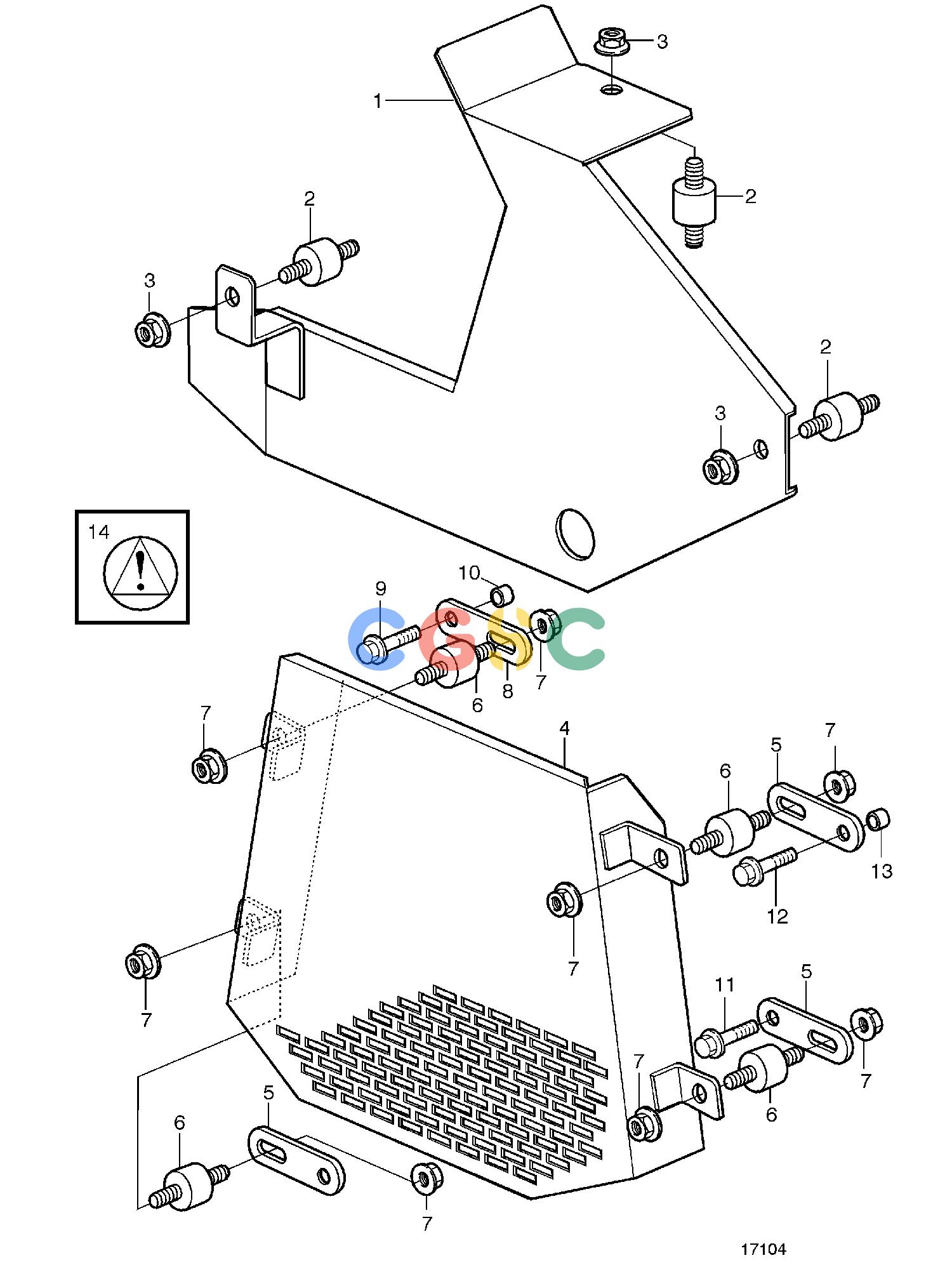

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemBelt Guard. Extra EquipmentEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3826239
|
[1] |
Belt protector
|
|
| 2. |
863415
|
[3] |
Rubber cushion
|
|
| 3. |
945408
|
[3] |
Flange nut
|
|
| 4. |
3826234
|
[1] |
Belt protector
|
|
| 5. |
965534
|
[3] |
Bracket
|
|
| 6. |
3574797
|
[4] |
Vibration damper
|
|
| 7. |
949278
|
[8] |
Flange lock nut
|
|
| 8. |
965544
|
[1] |
Bracket
|
|
| 9. |
965195
|
[1] |
Flange screw
|
|
| 10. |
827861
|
[1] |
Spacer sleeve
|
|
| 11. |
965215
|
[1] |
Flange screw
|
|
| 12. |
965216
|
[1] |
Flange screw
|
|
| 13. |
843075
|
[1] |
Spacer sleeve
|
16x8,4x11mm
|
| 13. |
1560272
|
[1] |
Spacer washer
|
18x8,4x13mm
|
| 14. |
3827294
|
[1] |
Decal
|
|
