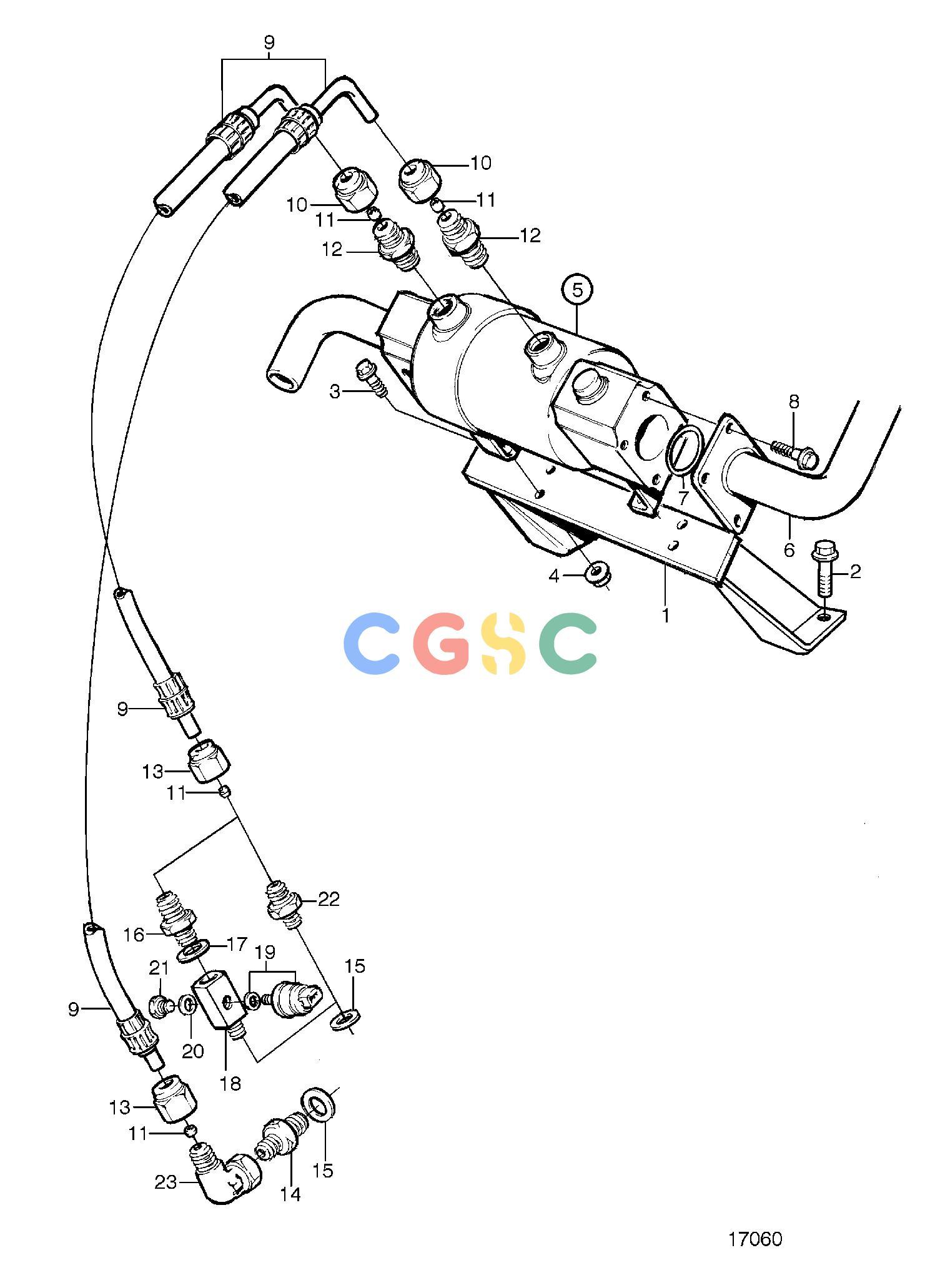

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemOil Cooler for IRM 301AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
316 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848098
|
[1] |
Bracket
|
(864869)
|
| 2. |
965191
|
[2] |
Flange screw
|
|
| 3. |
955295
|
[4] |
Hexagon screw
|
|
| 4. |
955782
|
[4] |
Hexagon nut
|
|
| 5. |
|
|
|
|
| 6. |
864972
|
[1] |
Coolant pipe
|
|
| 7. |
864491
|
[1] |
Gasket
|
|
| 8. |
946441
|
[4] |
Flange screw
|
|
| 9. |
848254
|
[2] |
Lubricating oil hose
|
L=660mm
|
| 10. |
941331
|
[2] |
Fitting nut
|
|
| 11. |
1677898
|
[4] |
Ferrule
|
(956970)
|
| 12. |
968132
|
[2] |
Nipple
|
|
| 13. |
956984
|
[2] |
Fitting nut
|
|
| 14. |
963948
|
[1] |
Nipple
|
|
| 15. |
11996
|
[2] |
Gasket
|
|
| 16. |
963959
|
[1] |
Nipple
|
|
| 17. |
947623
|
[1] |
Gasket
|
|
| 18. |
864064
|
[1] |
X-nipple
|
|
| 19. |
|
|
|
See group 30
|
| 20. |
947624
|
[1] |
Gasket
|
|
| 21. |
960632
|
[1] |
Plug
|
|
| 22. |
963948
|
[1] |
Nipple
|
|
| 23. |
964016
|
[1] |
Elbow nipple
|
|
