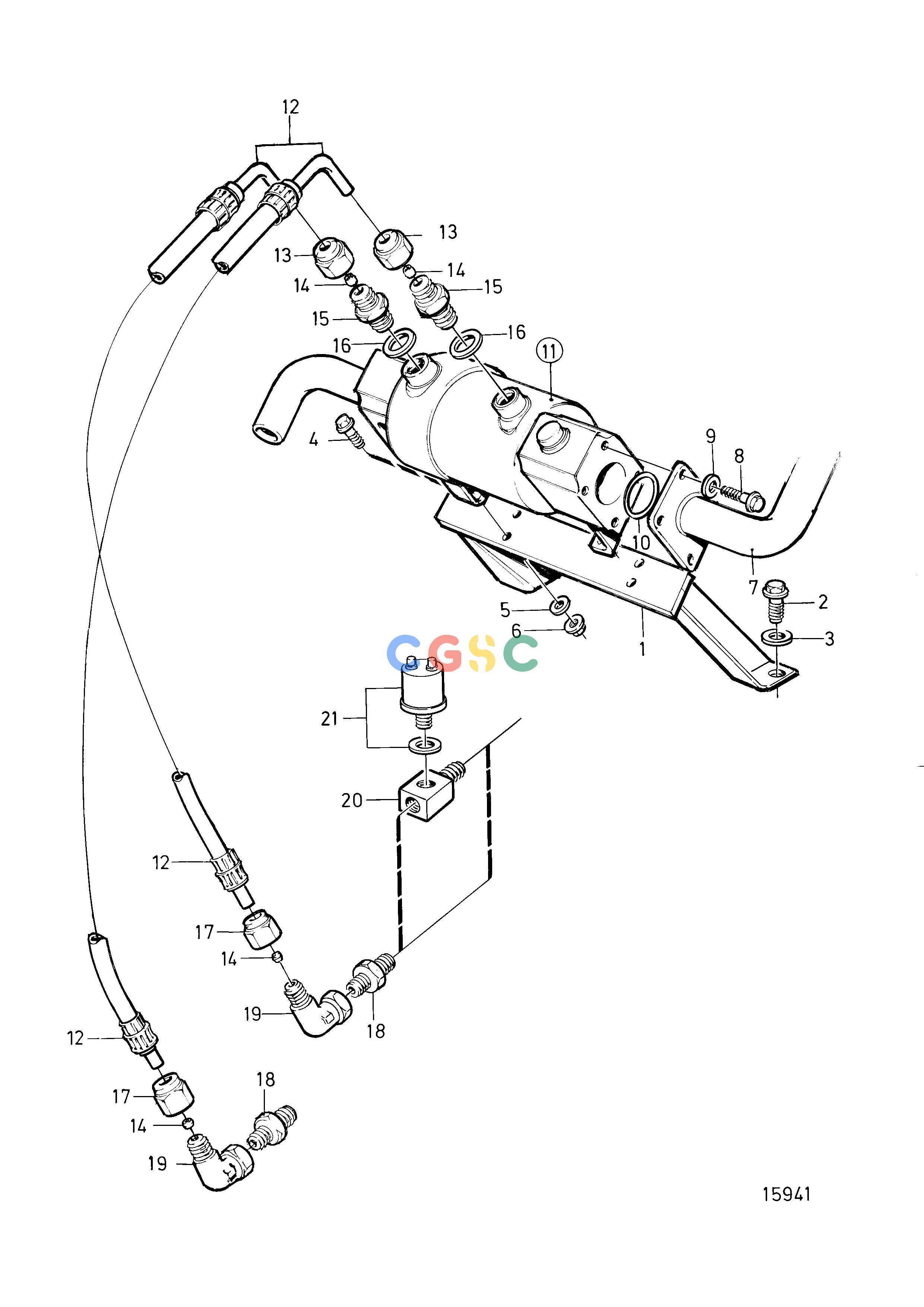

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ACooling SystemOil Cooler for MG 507, MG 507-1, MG 507-1E, MG 507A, MG 507A-1, MG 507A-1EEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848098
|
[1] |
Bracket
|
|
| 2. |
965191
|
[2] |
Flange screw
|
|
| 3. |
940280
|
[2] |
Spring washer
|
|
| 4. |
955295
|
[4] |
Hexagon screw
|
|
| 5. |
941907
|
[4] |
Spring washer
|
|
| 6. |
955782
|
[4] |
Hexagon nut
|
|
| 7. |
7738900_066
|
|
Coolant pipe
|
|
| 8. |
970947
|
[4] |
Hexagon screw
|
L=24mm, earlier prod
|
| 9. |
941908
|
[4] |
Spring washer
|
For 970947
|
| 10. |
864491
|
[1] |
Gasket
|
|
| 11. |
|
|
|
|
| 12. |
847165
|
[2] |
Lubricating oil hose
|
L=580mm
|
| 13. |
941331
|
[2] |
Fitting nut
|
|
| 14. |
1677898
|
[4] |
Ferrule
|
(956970)
|
| 15. |
968132
|
[2] |
Nipple
|
|
| 16. |
957184
|
[2] |
Gasket
|
Early type
|
| 17. |
956984
|
[2] |
Fitting nut
|
|
| 18. |
941750
|
[2] |
Nipple
|
|
| 19. |
964016
|
[2] |
Elbow nipple
|
|
| 20. |
842425
|
[1] |
Nipple
|
|
| 21. |
|
|
|
See group 30
|
