纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (04-001) - TOOL & ACCESSORY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
544 次

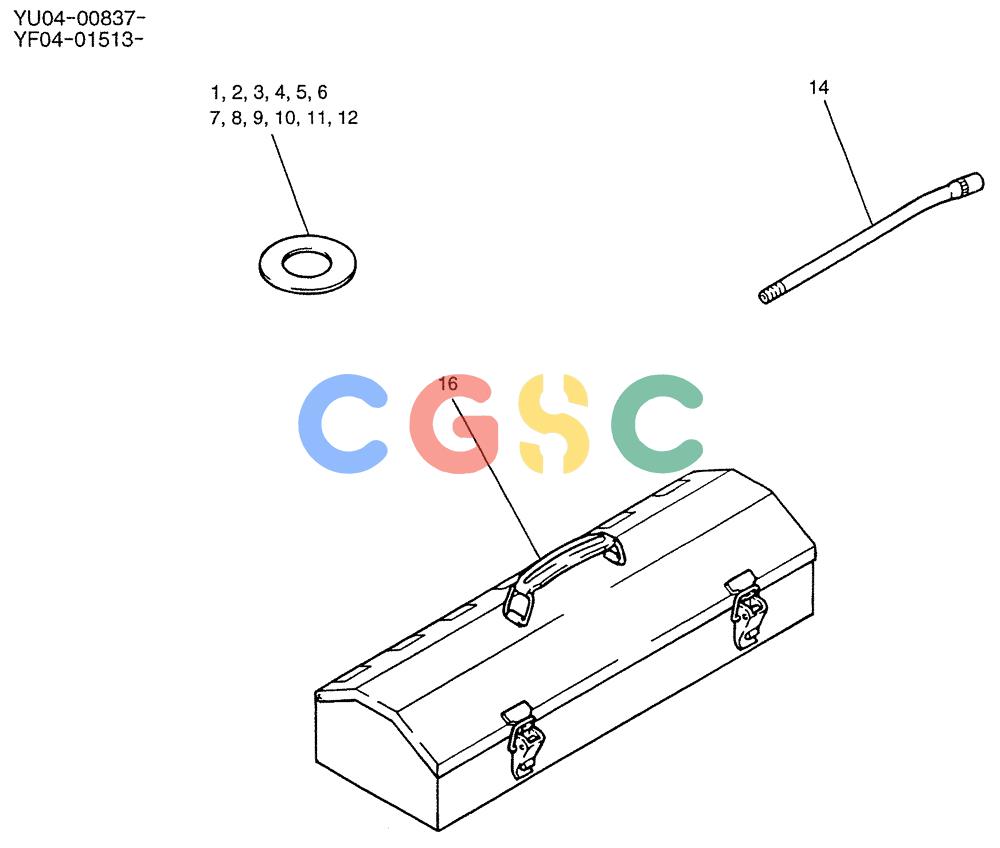

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01T00043F3 | [1] | TOOL & ACCESSORY | |
| 1. | B16T0442D3 | [5] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOB(1.2) |
| 2. | B16T0442D4 | [3] | SHIM,0.9mm Thk | KOB(1.6) |
| 3. | B16T0442D6 | [1] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOB(2.3) |
| 4. | B16T0442D13 | [1] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOB(1.2) |
| 5. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOB(1.6) |
| 6. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOB(2.3) |
| 7. | B16T0442D28 | [3] | SHIM,150mm OD x 82mm ID x 2.0mm Thk | KOB(2.0) |
| 8. | B16T0442D33 | [1] | SHIM,160mm OD x 92mm ID x 2.0mm Thk | KOB(2.0) |
| 9. | B16T0442D37 | [1] | SHIM,155mm OD x 87mm ID x 1.6mm Thk | KOB(1.6) |
| 10. | B16T0442D48 | [1] | SHIM,160mm OD x 87mm ID x 1.2mm Thk | KOB(1.2) |
| 11. | B16T0442D49 | [1] | SHIM,160mm OD x 87mm ID x 2.0mm Thk | KOB(2.0) |
| 12. | B16T0442D50 | [1] | SHIM,160mm OD x 87mm ID x 2.3mm Thk | KOB(2.3) |
| 14. | 2421R140 | [1] | NOZZLE | KOB |
| 16. | YW01TU0001F1 | [1] | TOOL BOX | KOBASSY, SEE FIG 04-002 |
