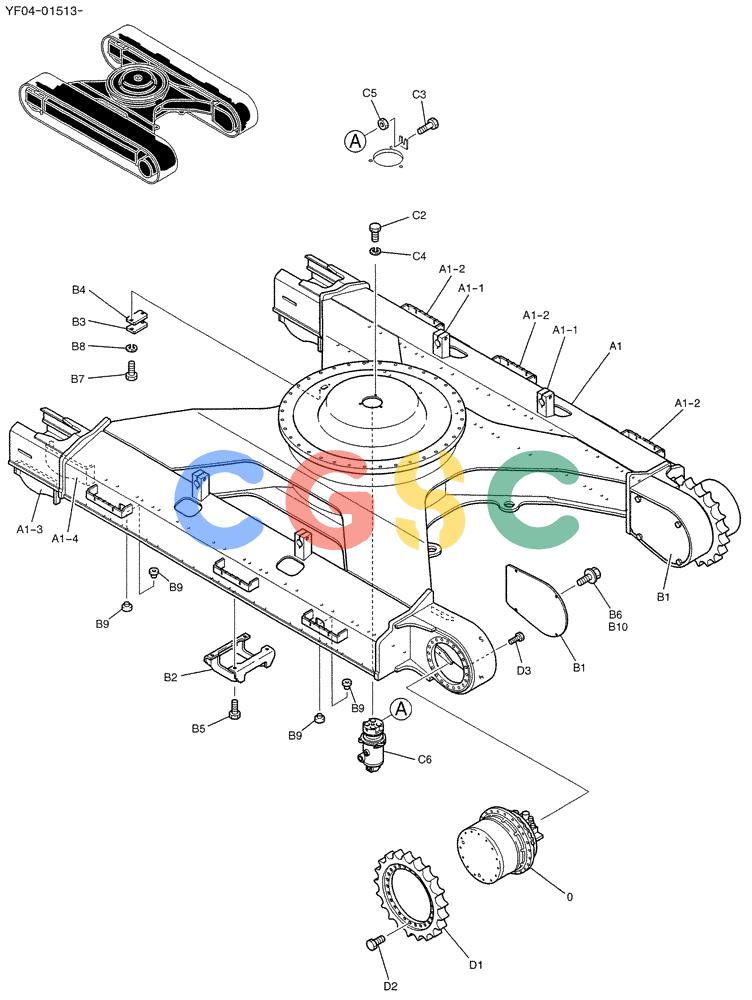

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (02-001) - LOW GROUP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
825 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YF02F00005P1 | [1] | FRAME, LOW | |
| A1-2. | YN41C00037P1 | [6] | STEP | KOB |
| A1-3. | YN07F01075P1 | [2] | GUIDE | KOB |
| A1-4. | YN07F01076P1 | [2] | GUIDE | KOB |
| . . | LQ01F00019F1 | [1] | LOW GROUP | |
| B2. | YN01F01039P1 | [2] | GUIDE | KOBTRACK |
| B3. | 2422T556 | [1] | PLATE | KOB |
| B4. | 2418T12274 | [1] | PACKING | KOBRUBBER |
| B5. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOBCAP |
| B6. | 2420T6786 | [8] | BOLT,M12 x 1.75 x 25mm | KOBSEMS, Serial Range: YF04-01513-YF04-01606 Superseded by part number: ZM32C12025 |
| B7. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBCAP |
| B8. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B9. | YN01F01040P1 | [32] | CAP | KOB Superseded by part number: YY01F01047P1 |
| B10. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBSEMS, Start Serial: YF04-01607 |
| . . | YN19H00040F2 | [1] | FLEXIBLE JOINT | KOBINSTAL, SWIVEL |
| C2. | ZS18C12025 | [3] | SCREW,Hex, M12 x 25mm | KOBCAP |
| C3. | ZS18F20120 | [1] | SCREW | KOBCAP |
| C4. | ZW16X12000 | [3] | WASHER | KOB |
| C5. | ZN18F20016 | [1] | NUT | KOB |
| C6. | YN55V00037F2 | [1] | FLEXIBLE JOINT | KOBASSY, SWIVEL |
| . . | LQ53D00006F1 | [1] | MOTOR INSTAL, PROPEL | |
| D1. | YN51D01002P1 | [2] | SPROCKET | KOB |
| D2. | ZS13C18055 | [52] | BOLT | KOBCAPSCREW |
| D3. | YN53D01003P1 | [40] | CAPSCREW | KOBSCREW CAP |
