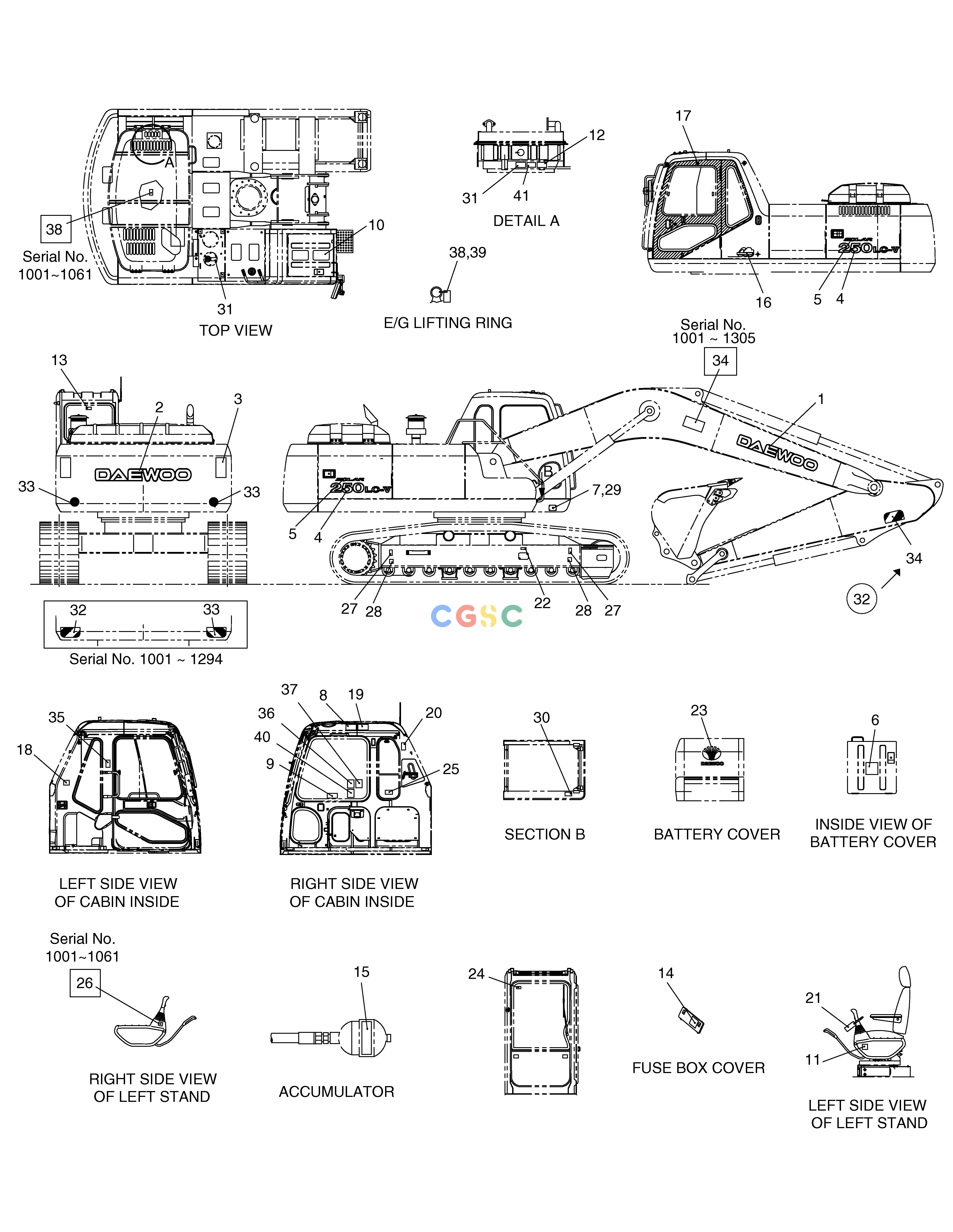

斗山零件查询NAME PLATE-EUROPE SOLAR 250LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
159 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190-00136
|
[-] |
NAME PLATE ASS'Y
|
|
| 1. |
2190-3385D2
|
[2] |
PLATE;NAME(DAEWOO)
|
|
| 10. |
2190-2314D3
|
[9] |
TAPE;ANTI-SKID
|
|
| 11. |
2190-3309
|
[1] |
PLATE;NAME(LEVER LOCK)
|
|
| 12. |
190-00095
|
[1] |
PLATE;NAME
|
|
| 13. |
190-00101
|
[1] |
PLATE;NAME(HAMMER)
|
|
| 14. |
2190-3244D1
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 15. |
190-00099
|
[1] |
PLATE;NAME
|
|
| 16. |
2190-3239
|
[1] |
PLATE;NAME(WORLD 21)
|
|
| 17. |
2116-9003
|
[1] |
PLATE
|
|
| 18. |
2190-2524
|
[1] |
PLATE;NAME
|
|
| 19. |
190-00096
|
[1] |
PLATE;NAME(ELEC. LINE)
|
|
| 2. |
2190-3385D4
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 20. |
190-00093
|
[1] |
PLATE;NAME(SLIDE WINDOW)
|
|
| 21. |
190-00098
|
[1] |
PLATE;NAME
|
|
| 22. |
190-00122
|
[2] |
PLATE;NAME
|
|
| 23. |
2190-1892D2
|
[1] |
PLATE;NAME
|
|
| 24. |
2190-3384
|
[1] |
PLATE;NAME
|
|
| 24. |
190-00315
|
[1] |
PLATE;NAME(WIPER MOTOR)
|
|
| 25. |
190-00102
|
[1] |
PLATE;NAME
|
|
| 26. |
2190-3383
|
[1] |
PLATE;NAME
|
|
| 27. |
2190-2476
|
[4] |
PLATE;NAME(TIE DOWN)
|
|
| 28. |
2190-2477
|
[4] |
PLATE;NAME(LIFTING)
|
|
| 29. |
2190-2848
|
[1] |
PLATE;NAME(ONLY EUROPE)
|
2190-2848A
|
| 29. |
2190-2848A
|
[1] |
PLATE;NAME
|
|
| 3. |
190-00090
|
[2] |
PLATE;NAME
|
|
| 30. |
190-00100
|
[1] |
PLATE;NAME(BATTERY)
|
|
| 31. |
190-00097
|
[2] |
NAME PLATE
|
|
| 32. |
2190-3528
|
[3] |
PLATE;NAME(SWING AREA)
|
|
| 33. |
2190-3530
|
[1] |
PLATE;NAME
|
|
| 33. |
190-00647
|
[2] |
PLATE;NAME
|
|
| 34. |
190-00091
|
[2] |
PLATE;NAME
|
|
| 34. |
190-00652
|
[2] |
PLATE;NAME
|
|
| 35. |
190-00094
|
[1] |
PLATE;NAME(CAUTION)
|
|
| 36. |
2190-3607D3
|
[1] |
PLATE;NAME(SOUND POWER)
|
|
| 37. |
2190-3608D2
|
[1] |
PLATE;NAME(SOUND PRESSURE)
|
|
| 38. |
2190-3558D13
|
[2] |
PLATE;NAME(E/G EMISSION)
|
|
| 38. |
2190-3558D13
|
[1] |
PLATE;NAME(E/G EMISSION)
|
190-00509D2
|
| 38. |
190-00509D2
|
[1] |
PLATE;NAME(E/G EMISSION)
|
|
| 39. |
2124-1622D1
|
[1] |
CLIP,BAND
|
|
| 4. |
190-00134
|
[2] |
PLATE;NAME(250LC-V)
|
|
| 40. |
190-00730D15
|
[1] |
PLATE;NAME
|
190-01059D15
|
| 40. |
190-01059D15
|
[1] |
PLATE;NAME
|
|
| 41. |
190-00557
|
[1] |
PLATE;NAME
|
|
| 5. |
2190-3332
|
[2] |
PLATE;NAME(SOLAR)
|
|
| 6. |
190-00137
|
[1] |
PLATE;NAME
|
|
| 6. |
190-00137A
|
[1] |
PLATE;NAME
|
|
| 7. |
2122-1002D1
|
[4] |
RIVET
|
2122-1002D2
|
| 7. |
2122-1002D2
|
[4] |
RIVET
|
|
| 8. |
190-00092
|
[1] |
PLATE;NAME
|
|
| 9. |
2190-3297
|
[1] |
PLATE;NAME
|
|
