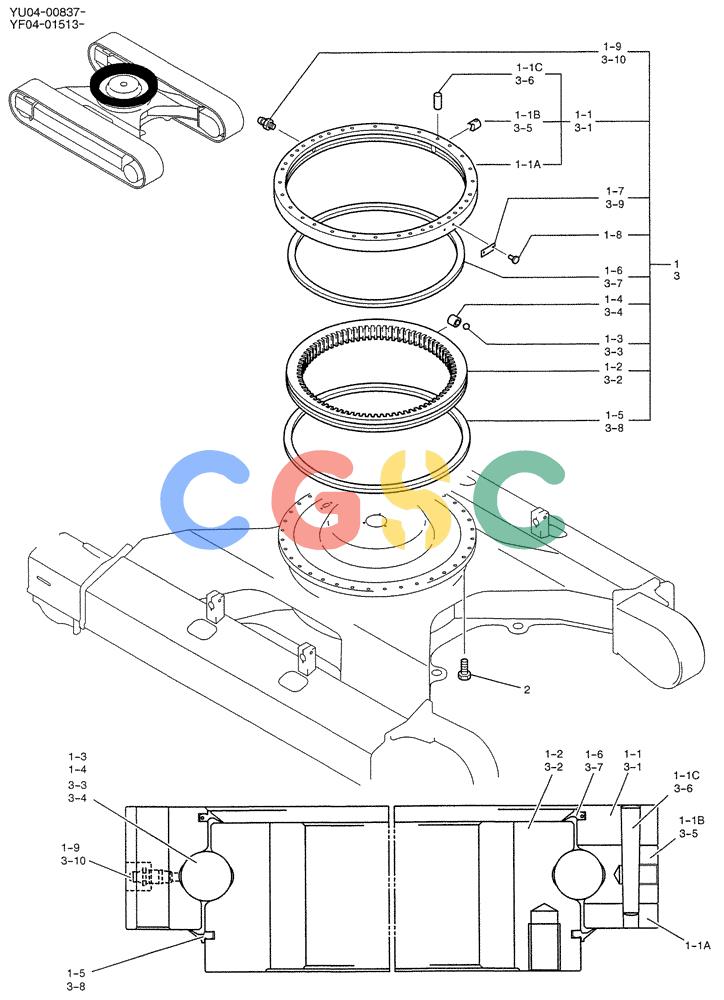

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (02-004) - RING ASSY, SLEWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF40F00001F1 | [1] | RING ASSY, SLEWING (IN-HOUSE PRODUCT) | |
| . . | YF40F00001F2 | [1] | RING ASSY, SLEWING [PURCHASED PRODUCT (ANTEX)] | |
| 1. | YF40F00002F1 | [1] | THRUST WASHER | KOBRING ASSY, SLEWING, (FOR F1 ONLY) Superseded by part number: YF40F00003F1 |
| 1-1. | YF40F01001P1 | [1] | RACE, OUTER | |
| 1-1A. | NSS | [1] | NOT SERVICED SEPARATELY | CONRACE, OUTER |
| 1-1C. | 2419T1964D2 | [1] | PIN | KOBTAPER |
| 1-2. | 2425N370 | [1] | RACE, INNER | |
| 1-3. | 2425T261 | [92] | BALL | KOB |
| 1-7. | YN22T00191P1 | [1] | PLATE | KOBNAME |
| 1-8. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 1-9. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGREASE |
| 2. | LQ40F01001P1 | [36] | SCREW,M20 x 1.5 x 70mm | KOBCAP |
| 3. | YF40F00003F1 | [1] | RING | KOBRING ASSY, SLEWING, (FOR F2 ONLY) |
| . . | 2445P114D7 | [1] | SEAL KIT | KOBKIT CONSISTS OF REF. 1-5, 1-6 Superseded by part number: YN40F01024D4 |
