斗山零件查询BOOM PIPING-ROTATION & TILTING SOLAR 250LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00749A
|
[-] |

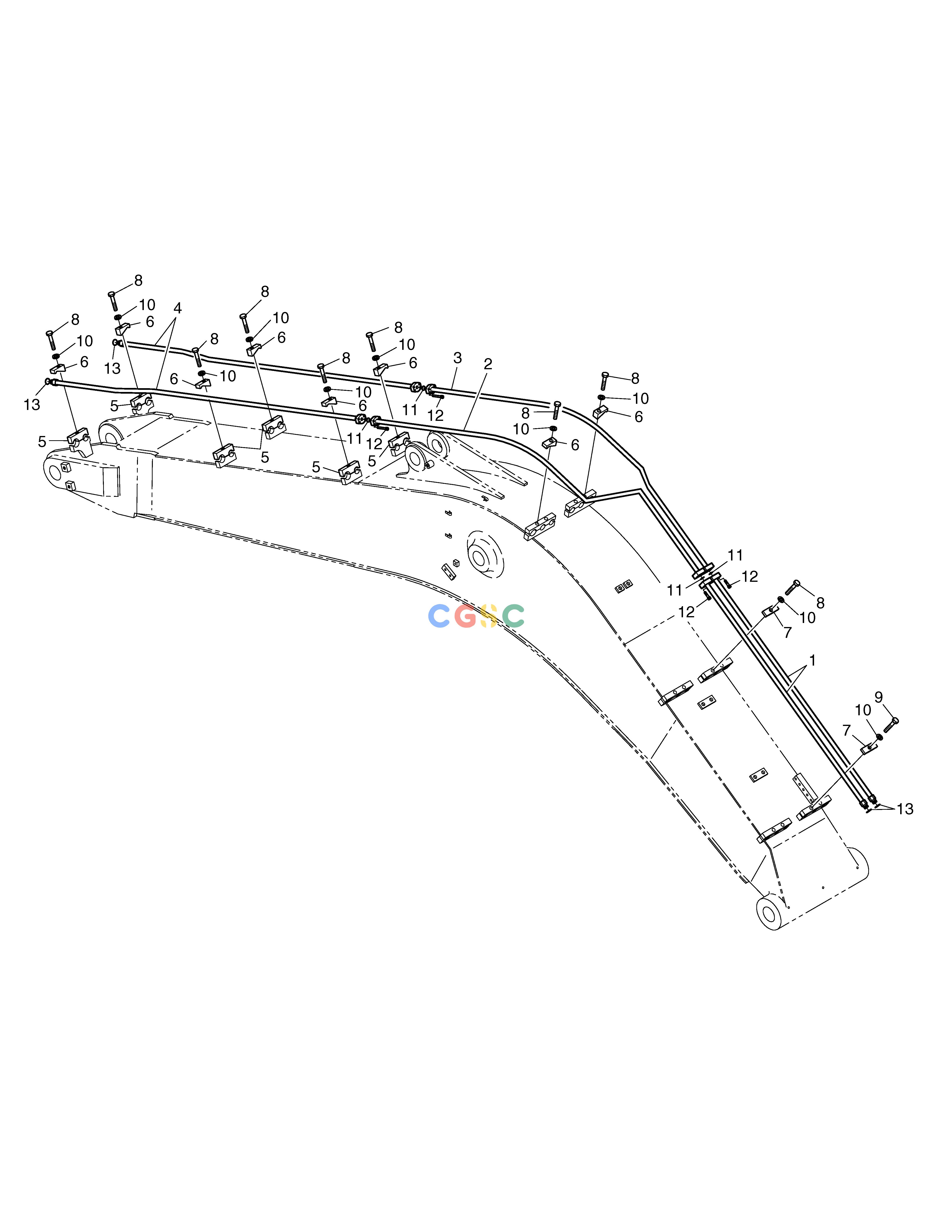

BOOM PIPING-TILTING&ROTATING
|
|
| 1. |
140-01185
|
[2] |
PIPE
|
|
| 10. |
S5102903
|
[12] |
WASHER
|
|
| 11. |
2180-1026D30
|
[4] |
O-RING
|
|
| 12. |
S2209366
|
[16] |
BOLT
|
|
| 13. |
S8030081
|
[4] |
O-RING
|
|
| 2. |
140-01186
|
[1] |
PIPE;BOOM
|
|
| 3. |
140-01187
|
[1] |
PIPE;BOOM
|
|
| 4. |
140-01188
|
[2] |
PIPE
|
|
| 5. |
124-00252
|
[6] |
CLAMP;PIPE
|
|
| 5. |
124-00317
|
[6] |
CLAMP;PIPE
|
|
| 6. |
124-00212
|
[8] |
CLAMP;PIPE
|
|
| 7. |
124-00211A
|
[2] |
CLAMP;PIPE
|
|
| 8. |
S0566066
|
[9] |
BOLT
|
|
| 9. |
S0566266
|
[1] |
BOLT
|
|
