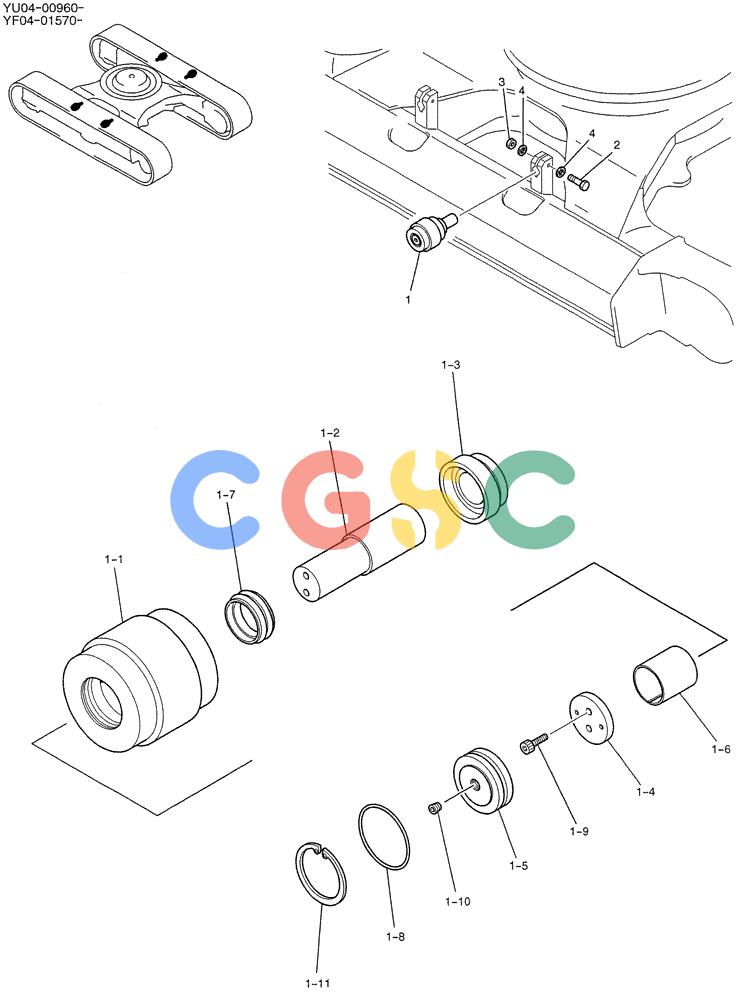

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (02-014) - ROLLER ASSY, UPP, P/N YN64D00014F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
242 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN64D00014F1 | [1] | ROLLER ASSY. | KOBROLLER ASSY, UPP |
| 1. | YN64D01022F1 | [4] | ROLLER | KOBROLLER ASSY |
| 1-1. | YN64D01023P1 | [1] | ROLLER | KOBROLLER |
| 1-2. | YN64D01024P1 | [1] | SHAFT | KOBSHAFT |
| 1-3. | YN64D01025P1 | [1] | COLLAR | KOBCOLLAR |
| 1-4. | YN64D01038P1 | [1] | PLATE | KOBPLATE |
| 1-5. | YN64D01026P1 | [1] | COVER | KOBCOVER |
| 1-6. | YN64D01027P1 | [1] | BUSHING | KOBBUSHING |
| 1-7. | ZD58F05827 | [1] | SEAL | KOBSEAL, FLOATING |
| 1-8. | ZD11P06500 | [1] | O-RING | KOBO-RING |
| 1-9. | YN64D01016P1 | [2] | BOLT | KOBBOLT |
| 1-10. | ZE82T04000 | [1] | PLUG | KOBPLUG |
| 1-11. | ZR26X07500 | [1] | RING | KOBRING, SNAP |
| 2. | ZS13C20120 | [4] | SCREW | KOBCAPSCREW |
| 3. | ZN13C20016 | [4] | NUT | KOBNUT |
| 4. | ZW13H20000 | [8] | WASHER | KOBWASHER |
