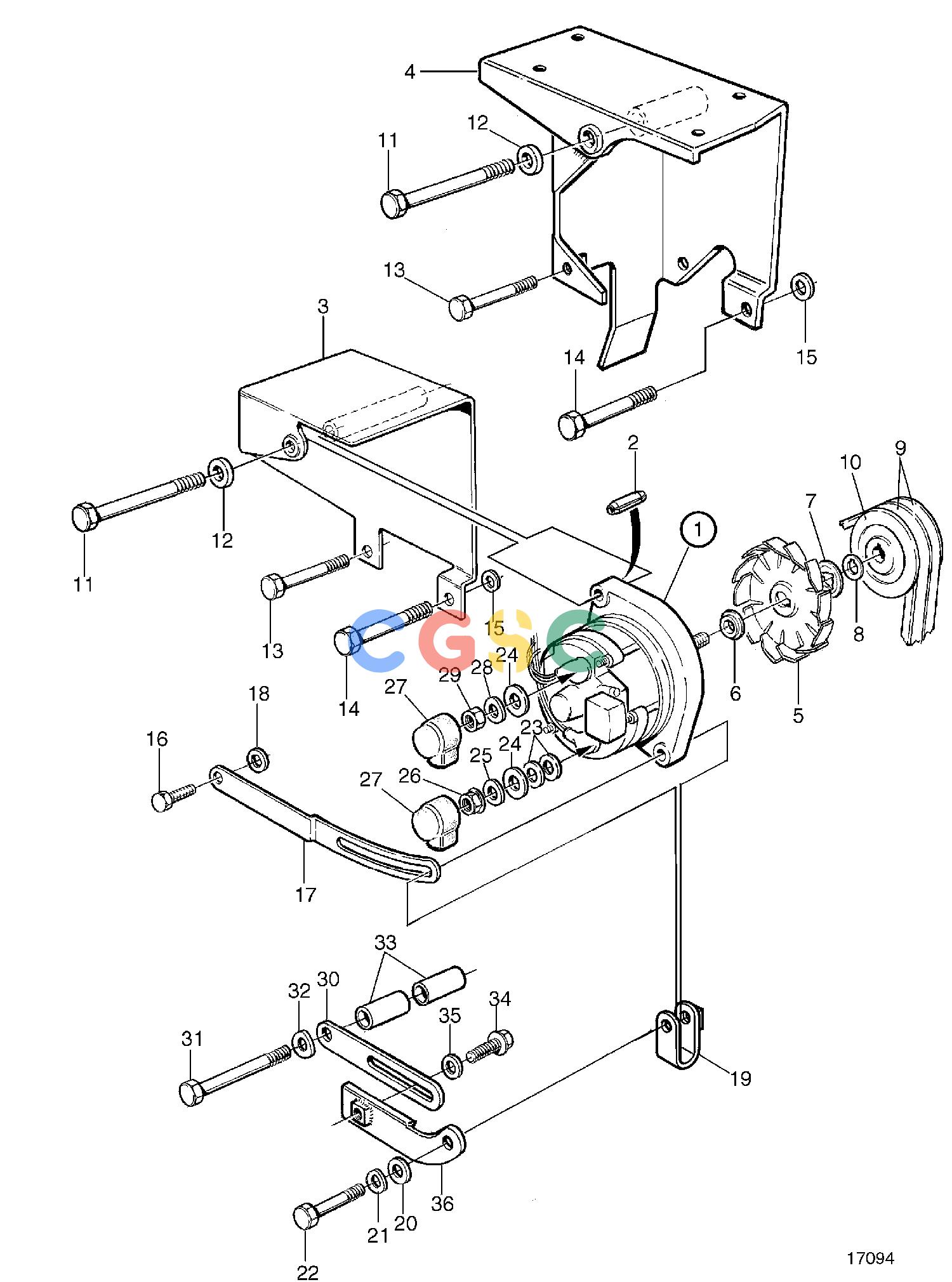

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AElectrical SystemAlternator: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872235
|
[1] |
Alternator
|
For 12V electric system.
|
| 1. |
3803260
|
[1] |
Alternator, exch
|
For 12V electric system.
|
| 1. |
872021
|
[1] |
Alternator
|
For 24V electric system., Repl by 873757
|
| 1. |
873757
|
[1] |
Alternator
|
For 24V electric system., SNXXXXXXXXXX/91111-
|
| 2. |
1610144
|
[1] |
Spring pin
|
|
| 3. |
849454
|
[1] |
Alternator bracket
|
Repl by 3826260
|
| 4. |
3826260
|
[1] |
Alternator bracket
|
|
| 5. |
848971
|
[1] |
Fan
|
24V
|
| 5. |
862899
|
[1] |
Fan kit
|
12V
|
| 6. |
862897
|
[1] |
Spacer
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
967193
|
[1] |
V-belt
|
|
| 10. |
849617
|
[1] |
Pulley
|
|
| 11. |
970966
|
[1] |
Hexagon screw
|
L=160mm
|
| 12. |
946335
|
[1] |
Washer
|
|
| 13. |
965183
|
[1] |
Flange screw
|
|
| 14. |
965190
|
[1] |
Flange screw
|
|
| 15. |
960148
|
[1] |
Washer
|
|
| 16. |
946173
|
[1] |
Flange screw
|
|
| 17. |
830747
|
[1] |
Tensioner
|
|
| 18. |
966674
|
[1] |
Washer
|
(960141)
|
| 19. |
466734
|
[1] |
Tensioning loop
|
|
| 20. |
966674
|
[1] |
Washer
|
(960141)
|
| 21. |
941908
|
[1] |
Spring washer
|
|
| 22. |
947760
|
[1] |
Flange screw
|
|
| 23. |
940090
|
[2] |
Washer
|
|
| 24. |
960140
|
[2] |
Washer
|
|
| 25. |
941905
|
[1] |
Spring washer
|
|
| 26. |
965483
|
[1] |
Flange nut
|
|
| 27. |
1234326
|
[2] |
Protecting casing
|
|
| 28. |
949607
|
[1] |
Spring washer
|
|
| 29. |
955781
|
[1] |
Hexagon nut
|
|
| 30. |
809307
|
[1] |
Tensioner
|
Alt
|
| 31. |
970987
|
[1] |
Hexagon screw
|
L=150mm
|
| 32. |
940280
|
[1] |
Spring washer
|
|
| 33. |
824334
|
[2] |
Spacer sleeve
|
|
| 34. |
946173
|
[1] |
Flange screw
|
|
| 35. |
966674
|
[1] |
Washer
|
|
| 36. |
847956
|
[1] |
Tensioner
|
Alt
|
