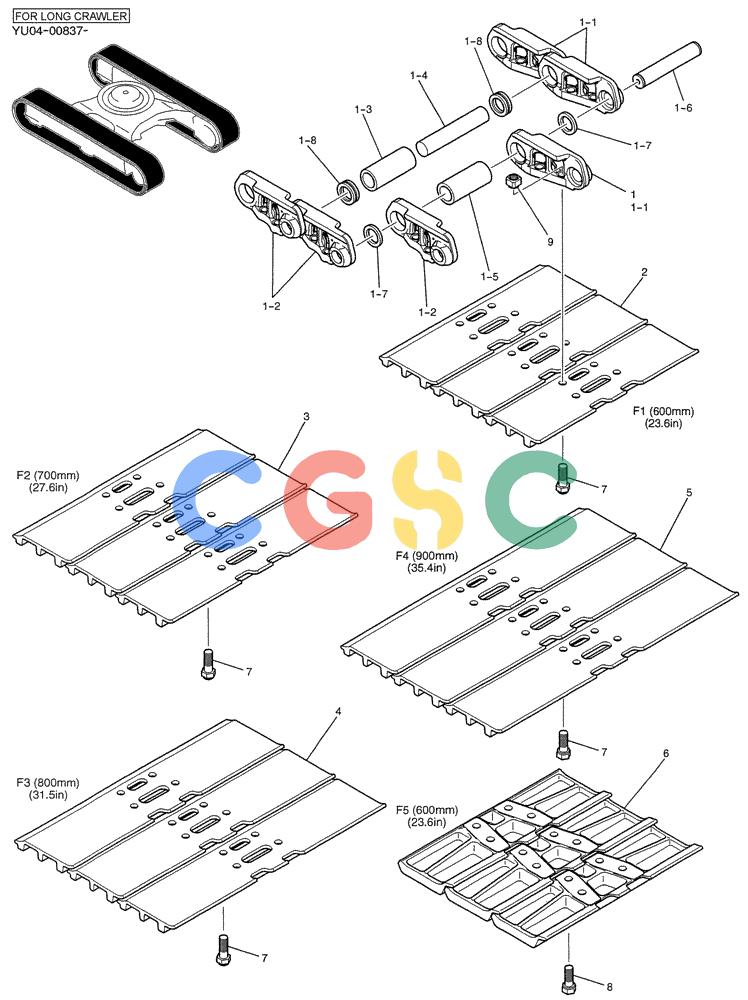

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (02-016) - SHOE ASSY (FOR LONG CRAWLER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
593 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN62D00017F4 | [1] | CHAIN | KOBTRACK LINK ASSY |
| 1-1. | 2424J170D1 | [51] | TRACK LINK | KOB(R.H) |
| 1-2. | 2424J170D2 | [51] | LINK | KOBTRACK (L H) |
| 1-3. | 2405P694 | [50] | BUSHING,37.13mm ID x 58.78mm OD x 138mm L | KOBTRACK |
| 1-4. | 2419P3042 | [50] | PIN,36.63mm OD x 210mm L | KOBTRACK |
| 1-5. | 2405P392 | [1] | BUSHING,36.83mm ID x 58.78mm OD x 129mm L | KOBMASTER |
| 1-6. | YN62D01017P1 | [1] | PIN,36.5mm OD x 210mm L | KOBMASTER |
| 1-7. | 2418T25964 | [2] | COLLAR | KOB |
| 1-8. | YN62D01028P1 | [100] | SEAL,37.25mm ID x 60.5mm OD x 14.2mm Thk | KOB |
| 2. | 2424N196D1 | [51] | SHOE,600mm Triple Grouser | KOB(t10) |
| 7. | 2420Z1292 | [204] | BOLT | KOBSHOE Superseded by part number: YN60D01007P1 |
| 9. | 2420Z1293 | [204] | NUT | KOB Superseded by part number: 2420P1584 |
| 3. | 2424N196D2 | [51] | SHOE,700mm Triple Grouser | KOB(t10) |
| 4. | 2424N196D3 | [51] | SHOE,800mm Triple Grouser | KOB(t10) |
| . . | LQ60D00023F4 | [2] | SHOE | KOBSHOE ASSY CONSISTS OF ITEM 1, 5, 7 & 9 |
| 5. | 2424N196D4 | [51] | SHOE,900mm Triple Grouser | KOB |
| 6. | YN60D00057P1 | [51] | TRACK SHOE | KOBFLAT |
| 8. | 2420T7262D2 | [204] | SCREW | KOBBOLT, SHOE |
