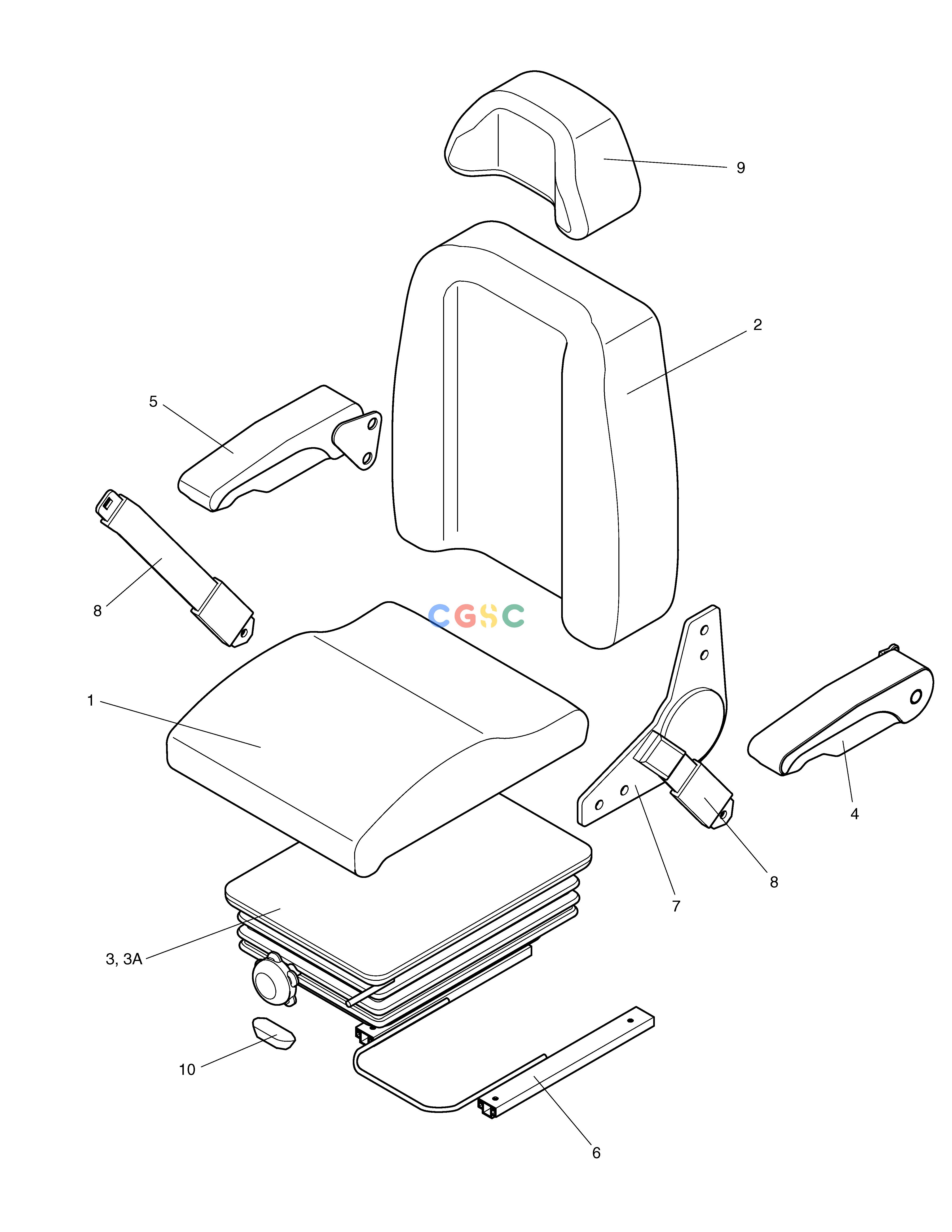

斗山零件查询SEAT-EXCEPT EUROPE & U.S.A SOLAR 255LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
901-00033
|
[1] |
SEAT
|
|
| 1. |
H28000-100
|
[1] |
CUSHION ASS'Y
|
|
| 10. |
H28003-902
|
[1] |
KNOB;TILTING
|
|
| 2. |
H28000-200
|
[1] |
BACK ASS'Y
|
|
| 3. |
H28000-300D
|
[1] |
LEG ASS'Y
|
|
| 3A. |
1.161-00012
|
[1] |
DAMPER
|
|
| 4. |
901-00003A
|
[1] |
ARM REST KIT(L.H)
|
|
| 5. |
901-00004A
|
[1] |
ARM REST KIT(R.H)
|
|
| 6. |
H28003-400A
|
[1] |
TRACK ASS'Y
|
|
| 7. |
H28003-240D
|
[1] |
RECLINER
|
|
| 8. |
H28003-600
|
[1] |
SAFETY BELT ASS'Y
|
|
| 9. |
H28000-800
|
[1] |
HEAD REST ASS'Y
|
|
